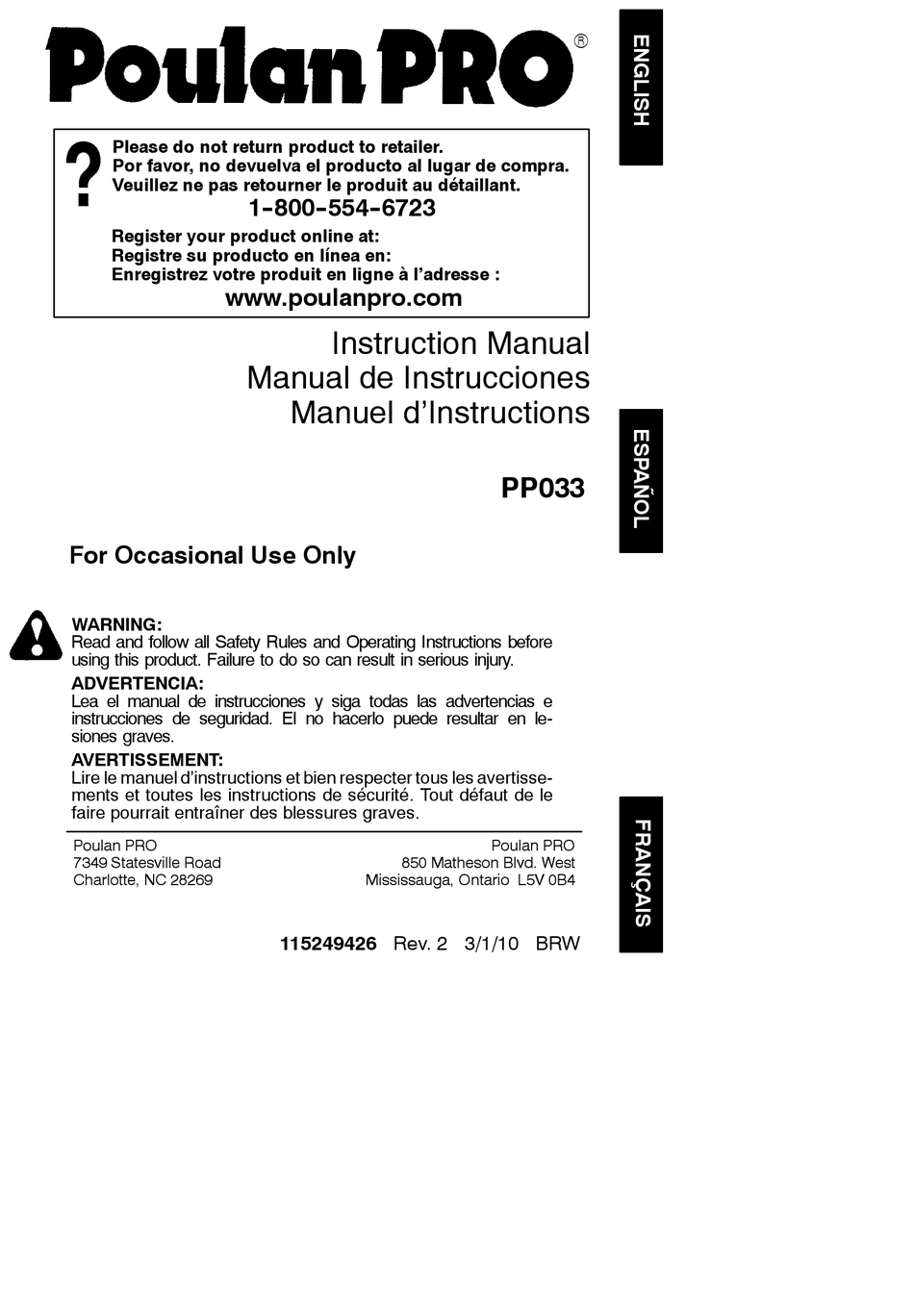

Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
www.poulanpro.com
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Poulan PRO
7349 Statesville Road
Charlotte, NC 28269
1- -800- -554- -6723
Instruction Manual
Manual de Instrucciones
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115249426 Rev. 2 3/1/10 BRW
R
PP033
Poulan PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 115249426 and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro 115249426

Summary of Contents for Poulan Pro 115249426

  • Page 1 Tout défaut de le faire pourrait entraîner des blessures graves. Poulan PRO 7349 Statesville Road Charlotte, NC 28269 115249426 Rev. 2 3/1/10 BRW Instruction Manual PP033 Poulan PRO 850 Matheson Blvd. West Mississauga, Ontario L5V 0B4...
  • Page 2 0.080 inch (2 mm) recommended trimmer line. Never use blades, flailing devices, wire, rope, string, etc. This attachment is designed for line trimmer use only. Failure to follow these instructions may result in serious injury. Trimmer line can throw objects violently.

  • Page 3: Identification Of Safety Symbols

    IDENTIFICATION OF SAFETY SYMBOLS Assist handle to be positioned only below the arrow. Never allow children to operate this unit. Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replacement parts.

  • Page 4: Optional Attachments

    Never use flailing de- vices with any attachment. This unit (when used with supplied line trimmer attachment) is designed for line trimmer use only. Use of any other accessories with line trimmer attach- ment will increase the risk of injury.

  • Page 5: Additional Safety Rules

    S Maintain unit according to recommended pro- cedures. Keep cutting line at proper length. S Use only 0.080″ (2 mm) diameter Poulan PRO brand line. Never use wire, rope, string, etc. S Install required shield properly before using the unit.
  • Page 6 Blade can thrust violently away from material it does not cut. Blade thrust can cause amputation of arms or legs. WARNING: Do not use trimmer head as a fastening device for the blade. WARNING: The blade continues to spin after the trigger is released or engine is turned off.

  • Page 7: Hedge Trimmer Safety

    the unit. Use the metal shield for all metal blade use. WARNING: Only use brushcutter at- tachments that provide a metal shield with proboscis nose. Proboscis nose S Use only specified blade and make sure it is properly installed and securely fastened. S Cut from your left to your right.
  • Page 8 WARNING: Falling objects can cause severe head injury. Wear head protec- tion when operating this unit with a pole prun- er attachment. WARNING: To prevent serious inju- ry, do not use more than one boom extension with a pole pruner attachment. WARNING: Keep the pruner away from power lines or electrical wires.
  • Page 9 LOOSEN Knob TIGHTEN 2. Remove shipping protector from coupler. 3. Remove the shaft cap from the trimmer attachment (if present). 4. Position locking/release button of attach- ment into guide recess of coupler. 5. Push the attachment into the coupler until the locking/release button snaps into the primary hole.

  • Page 10: Before Starting Engine

    2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of oil with 1 gallon...
  • Page 11 PP5500P WARNING: Always stop unit and dis- connect spark plug before removing or instal- ling attachments. REMOVING TRIMMER ATTACH- MENT (OR OTHER OPTIONAL AT- TACHMENTS) CAUTION: When removing or installing at- tachments, place the unit on a flat surface for stability.

  • Page 12: Operating Position

    S Operate the engine at full throttle. S Hold the trimmer head parallel to and above the grassy area. S Tap the bottom of the trimmer head lightly on the ground one time. Approximately 2 inches (5 cm) of line will be advanced with each tap.

  • Page 13: Clean Air Filter

    If any dealer other than an authorized service dealer performs work on the product, Poulan PRO may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance.

  • Page 14: Replace Spark Plug

    SERVICE AND ADJUSTMENTS REPLACING THE LINE 1. Press the tabs on the side of the trimmer head and remove cover and spool. your muffler be serviced or replaced by your authorized service dealer.
  • Page 15 9. Place the spool in the cover as shown below. 10. Insert the ends of the lines through exit holes in the sides of the cover. Line exit hole Cover 11. Reinstall the spool and cover onto the trimmer head. Push until cover snaps into place.

  • Page 16: Seasonal Storage

    30 days or more. Allow engine to idle. Adjust speed until engine runs without trimmer head or any optional at- tachment moving or spinning (idle too fast) or engine stalling (idle speed too slow).

  • Page 17: Troubleshooting Table

    HELPFUL TIP During storage of your gas/ oil mixture, the oil will sepa- rate from the gas. We recommend that you shake the gas can weekly to insure proper blending of the gas and oil. ENGINE S Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oil (air cooled) through the spark plug opening.

  • Page 18: Limited Warranty

    Poulan PRO, a division of Husqvarna Consumer Outdoor Products N.A., Inc., war- rants to the original consumer purchaser that each new Poulan PRO brand gasoline tool or attachment is free from defects in material and workmanship and agrees to repair or replace...
  • Page 19 WHAT IS COVERED: REPAIR OR RE- PLACEMENT OF PARTS. Repair or replace- ment of any warranted part will be performed at no charge to the owner at an approved Poulan PRO servicing center. If you have any ques- tions regarding your warranty rights and re-...
