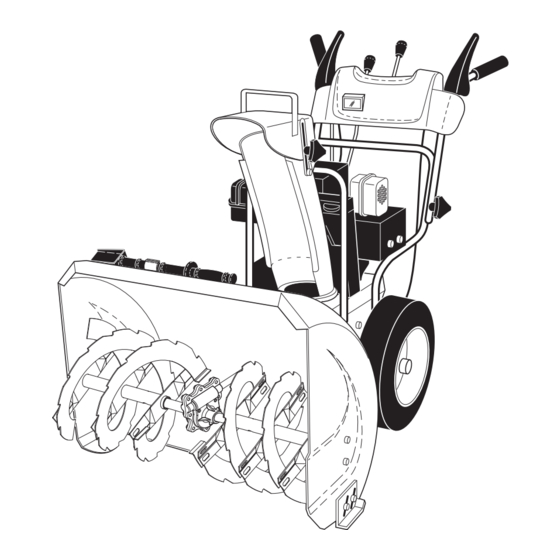

IMPORTANT MANUAL OWNER'S MANUAL MODEL NUMBER: XT624ES SNOW THROWER Always Wear Eye Protection During Operation Do Not Throw Away WARNING: Read the Owner's Manual and fol low all Warnings and Safety In struc tions. Fail ure to do so can result in serious injury. 437316 07.27.10 TH/JA Printed in the U.S.A.
Safe Operation Practices for Walk-Behind Snow Throwers This snow thrower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. Look for this symbol to point out im- por tant safety precautions.
6. When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the collector/impel- ler and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the plug to prevent someone from accidentally starting the engine.
PARTS PACKED SEPARATELY IN CARTON (1) DISCHARGE CHUTE ROTATOR HEAD MOUNTING (1) WASHER 3/8 (19131316) (2) SHEAR BOLTS 1/4-20 x 1-3/4 ASSEMBLY / PRE-OPERATION Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower.
Page 5
ASSEMBLY / PRE-OPERATION NOTE: The multi-wrench may be used for assembly of the chute rotator head to snow thrower and making ad just ments to the skid plates. UNFOLD UPPER HANDLE 1. Raise upper handle to the operating position and tight en handle knobs securely.
ASSEMBLY / PRE-OPERATION INSTALL AUGER CONTROL ROD (See Figs. 5 and 6) 1. Retrieve vinyl sleeve and spring from bag of parts and retrieve the auger control rod from carton chute tray. Slide straight rod end through the small hole in the vinyl sleeve.
OPERATION KNOW YOUR SNOW THROWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your snow thrower or in literature supplied with the product.
Page 8
MUF FLER GAS O LINE FILLER CAP CHOKE CON- TROL SAFETY IGNITION ON / OFF SWITCH PRIM ER FUEL SHUT-OFF VALVE RECOIL (AUXILIARY) STARTER HANDLE NOTE: ITEMS ABOVE ARE SHOWN IN THEIR TYPICAL LOCATION ON THE ENGINE. ACTUAL LOCATION MAY VARY WITH THE ENGINE ON YOUR UNIT.
Page 9
The operation of any snow thrower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your snow thrower or performing any ad just- 00155 ments or repairs.
TO THROW SNOW (See Fig. 13) The auger rotation is controlled by the auger control lever located on the right side handle. • Squeeze auger control lever to handle to engage the auger and throw snow. • Release the auger control lever to stop throwing snow. AUGER CONTROL LEVER...
TO ADJUST SKID PLATES (See Fig. 16) NOTE: The wrench provided in your parts bag may be used to adjust the skid plates. Skid plates are located on each side of the auger housing and adjust the clearance between the scraper bar and the ground surface.
TO START ENGINE Your snow thrower engine is equipped with both a 120 Volt A.C. electric starter and a recoil starter. The electric starter is equipped with a three-wire power cord and plug and is designed to operate on 120 Volt A.C. household current. •...
GENERAL REC OM MEN DA TIONS The warranty on this snow thrower does not cover items that have been sub ject ed to operator abuse or negligence. To receive full value from the warranty, operator must maintain snow thrower as in struct ed in this manual. Some ad just ments will need to be made periodically to properly maintain your snow thrower.
AUGER GEAR CASE • The gear case was filled with lubricant to the proper level at the factory. The only time the lubricant needs attention is if service has been performed on the gear case. • If lubricant is required, use only Ronex ED #1 grease.
SERVICE AND ADJUSTMENTS WARNING: To avoid serious injury, before performing any service or ad just ments: 1. Be sure the on/off switch is in the OFF position. 2. Remove safety ignition key. 3. Make sure the augers and all mov ing parts have completely stopped.
SERVICE AND ADJUSTMENTS TO REPLACE BELTS (See Fig. 21) The auger and traction drive belts are not adjustable. If the belts are damaged or begin to slip from wear, they should be replaced. It is recommended that the belt(s) be replaced by a service center/department.
Page 17
SERVICE AND ADJUSTMENTS TO REMOVE WHEELS (See Fig. 22) • Remove the klik pin and remove wheel from axle. IMPORTANT: When installing wheel, be sure to use the in- nermost hole in axle and the wheel hub hole. To dis en gage drive system from the wheels (for pushing or trans port ing the snow thrower), remove klik pin from wheel hub and insert pin into the outermost hole in axle only.
Immediately prepare your unit for storage at the end of the season or if the unit will not be used for 30 days or more. WARNING: Never store the snow thrower with gaso line in the tank in side a build ing where fumes may reach an open flame, spark or pilot light as on a fur nace, water heater, clothes dryer or gas ap pli ance.
TROUBLESHOOTING See appropriate section in manual unless directed to an authorized service center/department. PROBLEM CAUSE Does not start 1. Fuel shut-off valve (if so equipped) in OFF position. 2. Safety ignition key is not inserted. 3. Out of fuel. 4. Throttle in STOP position (or ON/OFF switch is OFF).
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 01.07.026-D 2 (EXPLODED) 1 inch = 25.4 mm...
Page 21
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART DESCRIPTION 175321X431...
Page 22
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 3 (5x) 4 (5x) 01.07.001-A...
Page 23
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY 01.11.001-B NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 01.07.017-A PART DESCRIPTION...
Page 24
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE PART DESCRIPTION 428272 LEVER/CABLE ROTATOR ASSEMBLY 17501010 SCREW 10-24 X .625 420678 ROTATOR HEAD 405932 ROTATOR PIVOT BRACKET 420675 PULLEY PIVOT 428273 CABLE ASSEMBLY ADJUSTABLE 428310 CABLE ASSEMBLY HEAT SHIELD NOTES:...
Page 25
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE 01.09.005-E NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART 435023X505 178633X505...
Page 26
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS HANDLES 01-05-013-A NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 01.08.003-A PART DESCRIPTION...
Page 27
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS HANDLES 01.10.003-B NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 01.08.007-B PART DESCRIPTION...
Page 28
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS HANDLES 01.08.002-G NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART DESCRIPTION 412683X431...
Page 29
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS HANDLES NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART 180480 405740...
Page 30
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS DRIVE NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 42 EXPLODED 01.02.013-A 1 inch = 25.4 mm...
Page 31
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS DRIVE PART DESCRIPTION 198875 SPEED SELECTOR ASSEMBLY 17501010 SCREW 10-24 X .625 402685X505 END PLATE 17490508 SCREW 5/16-18 X .50 57079 WASHER 405485 CONTROL ARM 198580 CLEVIS PIN 403097X008 SHIFTER PLATE 402881 SHOULDER BOLT 403096X431...
Page 32
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS DRIVE NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 01.03.005-B PART DESCRIPTION...
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS CHASSIS / ENGINE / PULLEYS 01.01.004-A NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART 437300 418694X505...
Page 34
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS CHASSIS / ENGINE / PULLEYS PART DESCRIPTION 408007 IMPELLER BELT 419744 TRACTION BELT 423723X431 IDLER ARM BRACKET 180523 IDLER PULLEY 426589 NUT 5/16-18 74780524 SCREW 5/16-18 X 1 .50 423990X431 IDLER BRACKET 428867 SCREW 5/16-18 X .625...
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS WHEELS 01.06.018-A NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART DESCRIPTION 432331X428...
Page 36
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS BAG OF PARTS 01.14.004-B 01.14.009-A NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 01.14.012-A PART DESCRIPTION...
Page 37
SNOW THROWER - - MODEL NO. XT624ES (96192004400) REPAIR PARTS DECALS NOTE: All component dimensions given in U.S. inches. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. PART DESCRIPTION 181037...
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975. LIMITED WARRANTY In Canada contact: Poulan Pro, Customer Service Department 5855 Terry Fox Way Mississauga, Ontario L5V 3E4...
