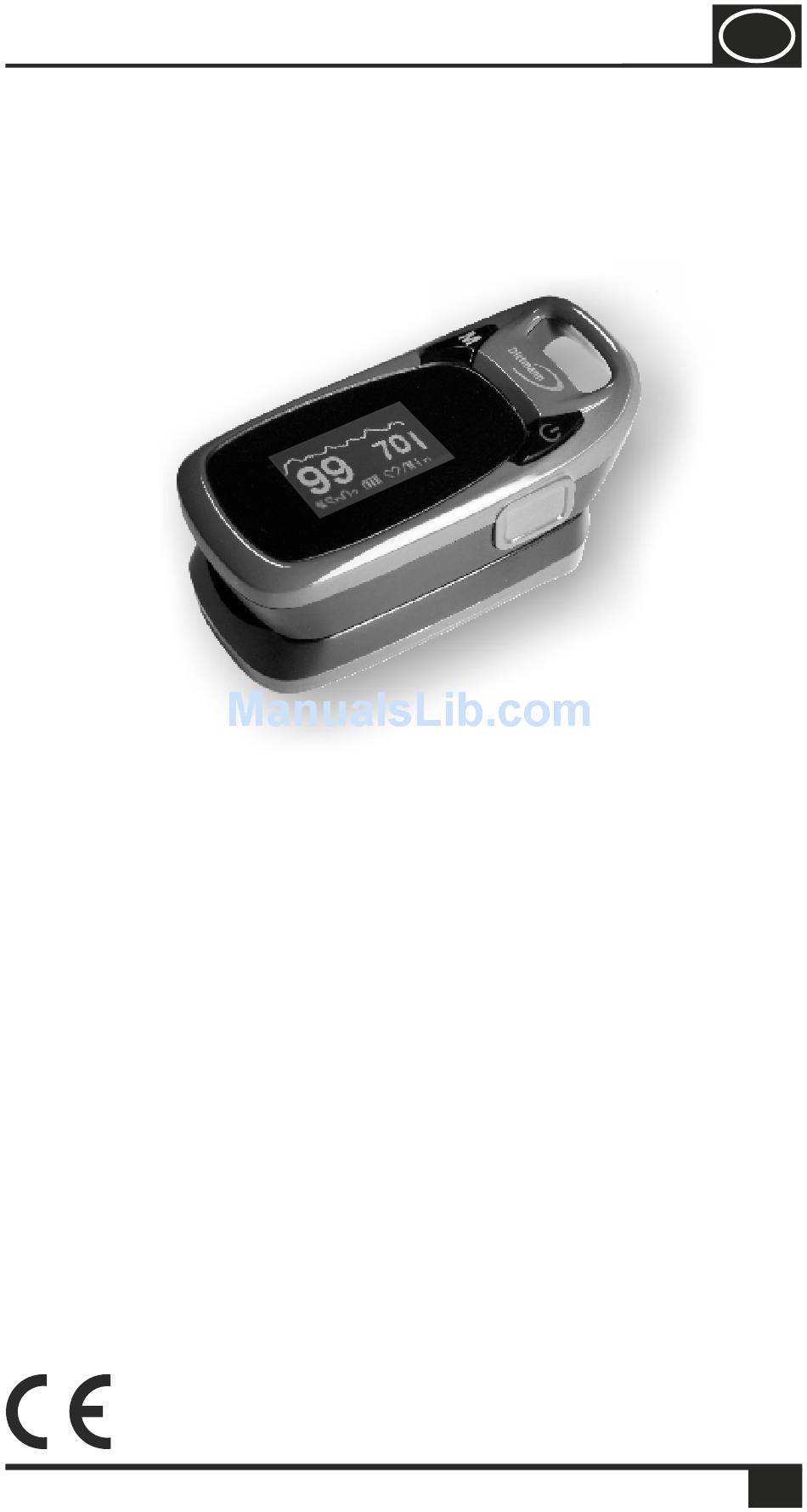

PULSE OXIMETER BSM 382
OPERATING MANUAL
•
Precise and quick measurement of arterial
oxygen saturation on a finger
•
Pain-free measurement using two beams of
light with different wavelengths
•
Measurement and display of pulse rate and
pulse intensity as bar graph and wave diagram
(plethysmograph)
•
Quick and easy application
•
Easily portable thanks to low size and weight
•
Ideal for sports and leisure activities
•
24 month warranty
•
Contents: 1 Pulse Oximeter BSM 382
1 Operating manual, 2 x AAA batteries,
1 lanyard
0123
Version 1, 2014-08
GB
BSM 382
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSM 382 and is the answer not in the manual?

Questions and answers

Related Manuals for Dittmann BSM 382

Summary of Contents for Dittmann BSM 382

  • Page 1 Easily portable thanks to low size and weight • Ideal for sports and leisure activities • 24 month warranty • Contents: 1 Pulse Oximeter BSM 382 1 Operating manual, 2 x AAA batteries, 1 lanyard 0123 BSM 382 Version 1, 2014-08...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS No. Topic Page Explanation of symbols Application and function Application and operating principle Pulse Oximeter BSM 382 fields of application Explanation of measurements Intended use Safety instructions General safety information Environmental restrictions of the BSM 382 unit...
  • Page 3 TABLE OF CONTENTS No. Topic Page Device commissioning Inserting the batteries Battery warning indicator Lanyard attachment Device operation Display switching Activation/deactivation of the alarm function Activation/deactivation of the acoustic function SpO2 alarm settings (oxygen saturation) Pulse rate alarm settings Device disposal 10.0 Battery change and information Cleaning and care...
  • Page 4 GENERAL INFORMATION Dear customer, Thank you for purchasing a new Pulse Oximeter BSM 382 and for your trust in our products. To ensure proper functioning and performance of your pulse oximeter, please read the operating manual prior to using your device for the first time.

  • Page 5: Explanation Of Symbols

    ATTENTION: It is dangerous for users to carry out self-diagnosis and self-treatment based on the measurements determined with this Pulse Oximeter BSM 382. This may lead to the aggravation of diseases. This device can under no circumstances replace proper medical consultation...

  • Page 6: Application And Function

    GENERAL INFORMATION 2.0 Application and function 2.1 Application and operational principles The Pulse Oximeter BSM 382 is a portable measuring device for easy, uncomplicated and precise measurements of arterial oxygen saturation as well as pulse rate and pulse intensity (display as bar and wave chart) at any time. The device features an adjustable acoustic and visual alarm function.

  • Page 7: Pulse Oximeter Bsm 382 Fields Of Application

    GENERAL INFORMATION Principle of operation: The Pulse Oximeter BSM 382 carries out two measurements: Firstly, the blood oxygen saturation and secondly, the pulse rate in the finger tip. Additionally, the pulse intensity is displayed as bar graph or wave diagram (plethysmograph).

  • Page 8: Explanation Of Measurements

    GENERAL INFORMATION 2.3 Explanation of measurements For healthy people, a normal blood oxygen saturation level of between 92 - 98 % is measured. Diseases or conditions leading to blood oxygen saturation levels that are too low include: Pulmonary emphysema • •...

  • Page 9: Intended Use

    GENERAL INFORMATION 2.4 Intended use The Pulse Oximeter BSM 382 is exclusively to be used according to its intended use: measurement of arterial oxygen saturation and pulse rate and intensity on a human finger. The device is not intended for long-term monitoring of patients!

  • Page 10: Safety Instructions

    SAFETY INSTRUCTIONS 3.0 Safety instructions 3.1 General safety instructions 3.1.1 The device must not be used in case of a defect. Do not try to modify (change), disassemble or repair the device or to replace parts. 3.1.2 In case of irregularities during application of the device, immediately stop using the device and consult your physician.

  • Page 11: Environmental Restrictions Of The Bsm 382

    For information on disinfection, cleaning and care, please refer to page 34. 3.3 Environmental restrictions of the BSM 382 3.3.1 Do not use the device in humid or wet environments or shortly after transferring it from a cold to a hot and humid environment.
  • Page 12 SAFETY INSTRUCTIONS 3.3.2 The device must not be used during magnetic resonance imaging or computer tomography! 3.3.3 WARNUNG - Risk of explosion! Do not use the device in flammable atmospheres, with flammable anaesthetics or other flammable substances and gases or near explosive substances! 3.3.4 The device must only be used in...

  • Page 13: Use By Children And Teenagers

    SAFETY INSTRUCTIONS 3.4 Application by children and teenagers 3.4.1 Keep the device away from children and teenagers under the age of 18. 3.4.2 Supervise children to prevent them from playing with the device. 3.4.3 Keep the device away from children. Small parts or batteries may be swallowed and lead to suffocation.
  • Page 14 SAFETY INSTRUCTIONS 3.5.4 Do not use the device if it is damaged. Using damaged devices may cause injuries, serious danger and inaccurate measurements. 3.5.5 Always keep the device clean and dry and avoid damage. Only in this way can accurate measurement results be ensured.
  • Page 15 SAFETY INSTRUCTIONS 3.6.1 Stop using the device in case of intolerance or allergic reactions (e.g. latex allergy) caused by components o f the device. 3.6.2 Before carrying out any measurements with the device, make sure that the fingers are clean, dry and oil-free. 3.6.3 Colour on the fingers (dirt, tattoos) may lead to incorrect measurements.

  • Page 16: Questions Regarding Pulse Oximetry

    4.2 Advantages of non-invasive pulse oximetry The measurement of the arterial oxygen saturation level using the Pulse Oximeter BSM 382 is uncomplicated, non-invasive (no blood sample needs to be taken) and can be carried out almost everywhere at any time due to the small size and low weight of the device.

  • Page 17: Conditions That Could Influence The Measurement

    PULSE OXIMETRY 4.3 Conditions that could influence the measurement Please observe the following circumstances as these may influence the measurement or lead to incorrect measurements: 4.3.1 There must be no dirt, nail polish or tattoos on the finger or finger nail. 4.3.2 The finger must be inserted deeply enough into the device with the finger nail pointing...

  • Page 18: Scope Of Supply/Packaging Content

    SCOPE OF SUPPLY 5.0 Scope of supply (packaging content) 1 x Operating manual 1 x Pulse Oximeter BSM 382 i Lanyard 2 x AAA batteries Please check all components directly after unpacking for completeness of the scope of delivery and damage. Do not use the device in case of damage or if the operating manual is missing!

  • Page 19: Device Front And Led Display

    DEVICE FRONT / LED DISPLAY 6.0 Device front and LED display 6 6 6 ON/OFF button for activation or manual deactivation of the measurement process M configuration button for display switching and setting visual and acoustic alarms Colour display (OLED display) Battery compartment at the back of the device Battery symbol / warning indicator ( ) in...

  • Page 20: Device Commissioning

    Afterwards, reattach the battery compartment cover by sliding it until it locks in place and closes flush with the device housing. Battery types: The Pulse Oximeter BSM 382 requires alkaline batteries type AAA. Do not use rechargeable batteries! Fig. 2 7.2 Battery warning indicator...

  • Page 21: Lanyard Attachment

    GETTING STARTED 7.3 Lanyard attachment Guide the thin black section of the lanyard through the opening in the device housing. Open the latch of the thin black lanyard and guide the light grey lanyard and the clip lock through to create a loop. Tighten this loop until the lanyard is securely attached to the bar at the housing (refer to fig.

  • Page 22: Device Operation

    APPLICATION 8.0 Device operation Step 1: Open the device like a clothes peg, insert a finger completely into the opening (refer to fig. 4) and close the device by releasing the back. The device is now securely attached to the finger. NOTE: Please note that the finger must be inserted with the finger nail facing upwards (towards the display side)!

  • Page 23: Display Switching

    APPLICATION Step 3: To complete the measurement, remove the device from the finger by pushing on the peg ends. After approx. 15 seconds, the device is switched off automatically. The device can also be switched off manually by pressing the ON/OFF button for approx.

  • Page 24: Activation/Deactivation Of The Alarm Function

    APPLICATION 8.2 Activation/deactivation of the alarm function If the alarm function is activated, an acoustic or visual alarm is triggered if the values go above or below adjustable upper or lower limits. To activate this, switch on the device and hold down the M configuration button until the Settings/Alm Setup mode is displayed and release the button .

  • Page 25: Activation/Deactivation Of The Acoustic Function

    APPLICATION 8.3 Activation/deactivation of the acoustic function If the acoustic function is activated, the pulse rate is not only displayed visually but also indicated acoustically by an acoustic signal which emits at the pulse rate. To activate it, switch on the device and hold down the M configuration button until the Settings/Alm Setup mode is...
  • Page 26 APPLICATION the button until the measurements are displayed again. The selected settings are now saved. RESET function: Deleting settings If OK is displayed in the Settings/Alm Setup menu next to the Restore entry, all settings in the Settings/Alm Setup and the Settings/Sound Setup menus correspond to the factory settings (refer to page 46).

  • Page 27: Spo2 Alarm Settings (Oxygen Saturation)

    APPLICATION 8.4 SpO2 alarm settings (oxygen saturation) The Settings/Sound Setup menu allows you to set the blood oxygen saturation limit values in % at which acoustic (acoustic signal) and visual alarms (blinking of the measurement) are triggered. In the range of 50 % - 100 %, a lower and an upper limit can be set.

  • Page 28: Pulse Rate Alarm Settings

    APPLICATION Release the button when the desired value is reached and move the star-shaped cursor down to the SpO2 Alm Lo entry by pressing the button again. Adjust the lower alarm limit next to the star-shaped cursor in the same way as the upper alarm limit.
  • Page 29 APPLICATION move the cursor down to the PR Alm Hi entry to adjust the upper alarm limit next to the star- shaped cursor. To do so, hold down the M configuration button until the lowest limit of 5 is displayed. As you hold down the button , the displayed limit increases in steps of five to a maximum value of 250 before starting at 5 again.
  • Page 30 APPLICATION SETTINGS +/- under Settings/Sounds Setup Press the M configuration button to move the star-shaped cursor down to the +/- entry to set whether all adjustable values in the Settings/Sounds Setup menu are adjusted in increasing or decreasing order. To do so, hold the configuration down and the setting next to the star cursor will alternate between + and -.

  • Page 31: Device Disposal

    For this purpose, consult your local administration or a disposal company. The Pulse Oximeter BSM 382 is to be disposed of according to the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).
  • Page 32 DISPOSAL/BATTERY CHANGE Afterwards, reattach the battery compartment cover by sliding it until it locks in place and closes flush with the device housing. Fig. 14 10.3 Battery disposal: Do not dispose of empty batteries with household waste! Dispose of empty batteries at an electronics retailer or a public collection point.
  • Page 33 DISPOSAL/BATTERY CHANGE Batteries must not be charged (except 10.7 rechargeable batteries), disassembled, burnt or short-circuited. 10.8 Protect batteries from high temperatures. Take out the batteries of the device if they are low or if the device is not to be used for a longer period of time.

  • Page 34: Cleaning And Care

    CLEANING AND CARE 11.0 Cleaning and care 11.1 Always keep the surface of the device free from dust and dirt. Prior to cleaning the device, switch it off and remove the batteries. To clean the housing, use a dry, soft cloth. In case of heavier soiling, clean the device with a slightly dampened cloth with some mild cleaning agent.

  • Page 35: Technical Defects

    TECHNICAL DEFECTS 12.0 Technical defects Defect Cause Solution The device is The finger is not Insert the finger switched on but positioned correctly in the no values or correctly in the device accor- data are device. ding to the user displayed (or instructions.
  • Page 36 TECHNICAL DEFECTS 12.0 Technical defects Defect Cause Solution Check whether The device There are no the batteries are cannot be batteries in the inserted (at the switched on. device or the correct polarity). batteries are If not, position the incorrectly batteries correctly positioned.

  • Page 37: Information On Electromagnetic Immunity

    Guidelines and manufacturer declaration – electromagnetic emissions The BSM 382 is intended for use in the environment specified below. The customer or the user of the BSM 382 should assure that it is used in such an environment.
  • Page 38 Emissions Conformity Electromagnetic test environment - guide RF emissions Group 2 THE BSM 382 uses RF according to energy only for its internal CISPR 11 function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
  • Page 39 Guidelines and manufacturer's declaration – electromagnetic immunity The BSM 382 is intended for use in the electromagnetic environment specified below. The customer or the user of the BSM 382 should assure that it is used in such an environment. Immunity Confor...
  • Page 40 ½ voltage hospital periods variations environment. If the 40 % UT of the user of the BSM 382 (60 % power requires continued voltage supply operation during dip of UT) according power line for 5...
  • Page 41 Guidelines and manufacturer's declaration – electromagnetic immunity The BSM 382 is intended for use in the electromagnetic environment specified below. The customer or the user of the unit should assure that it is used in such an environment.
  • Page 42 ELECTRICAL IMMUNITY 13.0 Information on electro- magnetic immunity Guidelines and manufacturer's declaration – electromagnetic immunity Immunity Confor Electromagnetic test 60601- mity environment – test level guidelines level Recommended separation distance: Conducted 3 Vrms 3 Vrms d = 1.2 150 kHz disturbance to 80 s according...
  • Page 43 ELECTRICAL IMMUNITY 13.0 Information on electromagnetic Guidelines and manufacturer's declaration – electromagnetic immunity Immunity Confor Electromagnetic test 60601- mity environment – test level guidelines level in meters (m). Field strengths from fixed RF transmitters as determined by an electromagnetic site survey (a) should be less than the conformity level in...
  • Page 44 The BSM 382 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BSM 382 can help to prevent electromagnetic interference by maintaining a minimum distance between portable and...
  • Page 45 ELECTRICAL IMMUNITY 13.0 Information on electro- magnetic immunity Rated Separation distance according to maximum frequency of transmitter in meters output power 150 kHz to 80 Mhz to 800 Mhz to of the 80 Mhz 800 Mhz 2.5 Ghz transmitter in Watt d = 1.2 P d = 1.2 d = 2.3...

  • Page 46: Technical Data

    TECHNICAL DATA 14.0 Technical data Model/type: BSM 382 Dimensions (LxWxH): Approx. 74 x 37 x 38 mm Weight: Approx. 50 g (incl. batteries) Material: Plastic, metal Power supply: 3.0 V DC, 2 x AAA batteries (V = volt, DC =...
  • Page 47 TECHNICAL DATA 14.0 Technical data MEASURING DATA: Oxygen saturation: Measuring range: 35 % - 100 % (per cent) Resolution: Measuring accuracy: from 70 % - 100 %: +/- Optical sensors: Red light: Wavelength 660 nm (+/-2 nm) Infrared light: Wavelength 940 nm (+/- 10 nm) nm = nanometer Pulse measurement: Measuring range:...
  • Page 48 14.0 Technical data Batch designation: V4714BSM382 Serial number: 00001 (consecutive number) Date of manufacture: 2014-08 2014-08 (year, month) The BSM 382 device is 0123 certified according to EU Directive 93/42/ECC for Medical Devices. Manufacturer: Handelshaus Dittmann GmbH, Kissinger Straße 68, D-97727 Fuchsstadt/Germany.

  • Page 49: Warranty

    The legal warranty period for the product is 24 months from date of purchase for material or manufacturing errors. Please keep the receipt as proof of purchase of the Pulse Oximeter BSM 382 in case you need to make warranty claim. The warranty shall not include:...
  • Page 50 German landline number, max. € 0.60 per call from a German mobile phone networks) ww.dittmann-gmbh.com Yours sincerely, Manufacturer: Handelshaus Dittmann GmbH Kissinger Straße 68 D-97727 Fuchsstadt/Germany Copyright © Handelshaus Dittmann GmbH, 2014 3515914-Technische Dokumentation by www.dittmann-consulting.com...
