Poulan Pro 115244926 Instruction Manual

Poulan pro pole pruner instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

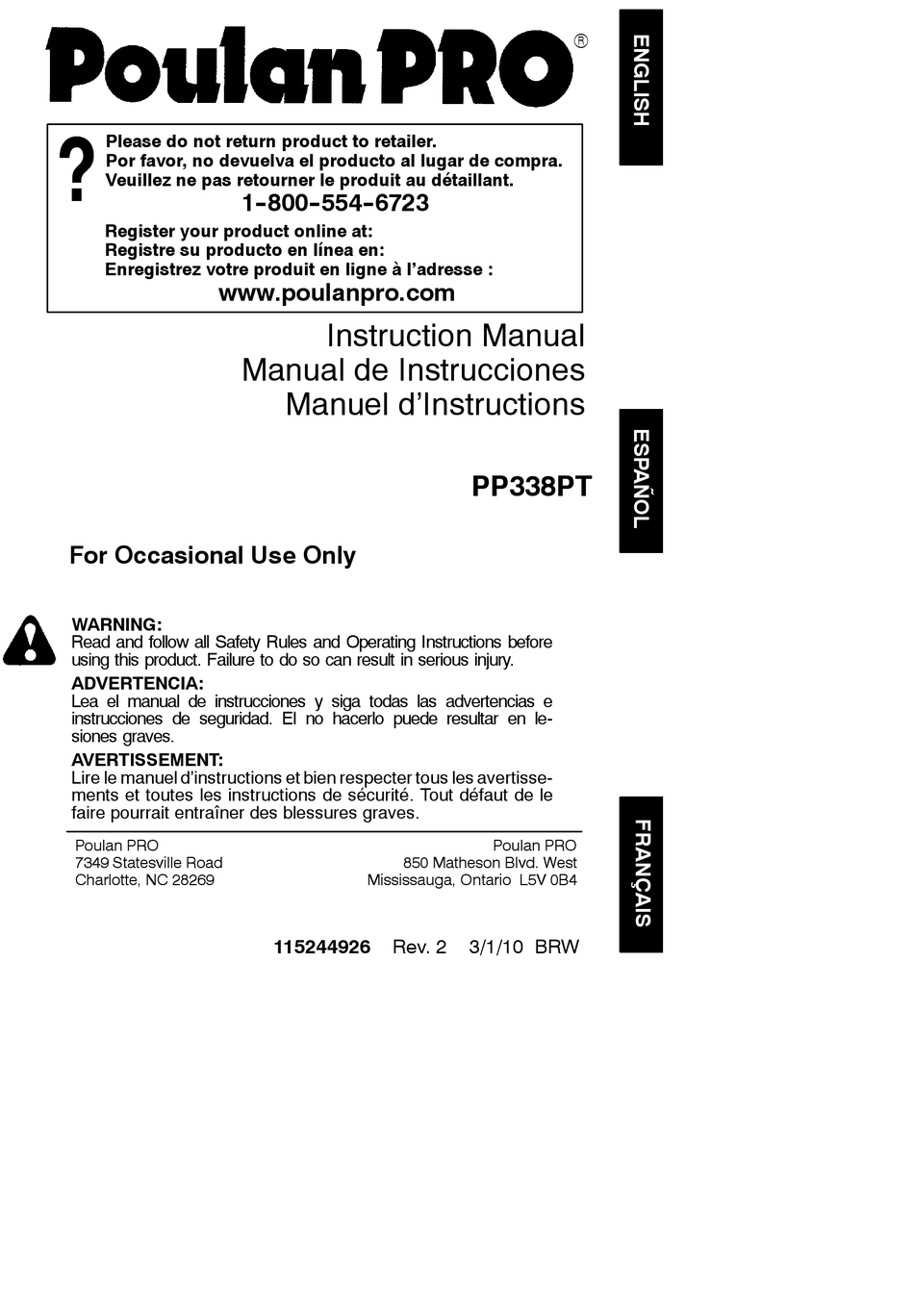

Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
1- -800- -554- -6723
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l'adresse :
www.poulanpro.com
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Poulan PRO
7349 Statesville Road
Charlotte, NC 28269
Instruction Manual
Manuel d'Instructions
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
115244926
Rev. 2
R
PP338PT
Poulan PRO
3/1/10 BRW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 115244926 and is the answer not in the manual?

Questions and answers

Related Manuals for Poulan Pro 115244926

Summary of Contents for Poulan Pro 115244926

  • Page 1 AVERTISSEMENT: Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. Poulan PRO 7349 Statesville Road Charlotte, NC 28269 115244926 Instruction Manual...
  • Page 2 IDENTIFICATION OF SAFETY SYMBOLS not use near electrical wires or power lines. Keep pruner at least 30 feet (10 meters) away from all power lines. head injury. Wear head protection when operating this unit. Do not stand beneath branch being cut. WARNING: Avoid kickback which can result in serious injury.
  • Page 3 IDENTIFICATION OF SAFETY SYMBOLS Trimmer line can throw objects violently. You can be blinded or injured. Wear protective gear. Always use steel-toed safety footwear with non-slip soles; snug-fitting clothing; heavy, long pants, and long sleeves; heavy-duty, non-slip gloves; eye protection marked Z87 such as non-fogging, vented goggles or face screen;...
  • Page 4 IDENTIFICATION OF SAFETY SYMBOLS Assist handle to be positioned only below the arrow. Never allow children to operate this unit. Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replacement parts.

  • Page 5: Plan Ahead

    SAFETY RULES WARNING: Always disconnect spark plug wire and place wire where it cannot contact spark plug to prevent accidental starting when setting up, transporting, adjusting or making re- pairs except carburetor adjustments. Because a pruner is a high-speed wood-cutting tool, special safety precautions must be ob- served to reduce the risk of accidents.

  • Page 6: Kickback Warning

    S Maintain unit according to recommended procedures. Keep cutting line at proper length. S Use only 0.080″ (2 mm) diameter Poulan PRO brand line. Never use wire, rope, string, etc. S Install required shield properly before using the unit.

  • Page 7: Maintain Control

    the bar (plunge cuts). S Watch for shifting of wood or other forces that could close a cut and pinch or fall into chain. S Use the Reduced- -Kickback Guide Bar and Low- -Kickback Chain specified for your unit. MAINTAIN CONTROL S Keep a good, firm grip on the pruner with both hands when the engine is running and don’t let go.
  • Page 8 (#530071451) is available from your autho- rized service dealer. Handlebar EDGER SAFETY WARNING: Inspect the area to be edged before each use. Remove objects (rocks, broken glass, nails, wire, etc.) which can be thrown by the blade or can wrap around the shaft.
  • Page 9 bent, warped, cracked, broken or damaged in any other way. S Install required shield properly before using the unit. Use the metal shield for all metal blade use. WARNING: Only use brushcutter at- tachments that provide a metal shield with proboscis nose.
  • Page 10 enclosures, automobiles, etc. S Do not run engine at high speed while not removing snow. S Be attentive when using the snowthrower, and stay alert for holes in the terrain and other hidden hazards. S Make sure the rotor will spin freely before attaching the snowthrower to the power- head.
  • Page 11 list on page 13), refer to the ASSEMBLY sec- tion of the applicable attachment instruction manual. SHOULDER STRAP ASSEMBLY WARNING: Proper shoulder strap adjustments must be made with the engine completely stopped before using unit. 1. Try on shoulder strap and adjust for fit and balance before starting the engine or beginning a cutting operation.
  • Page 12 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline.
  • Page 13 Genuine Poulan or Poulan PRO bar and chain oil is recommended to protect your unit against excessive wear from heat and fric- tion. Poulan or Poulan PRO oil resists high temperature thinning. If Poulan or Poulan PRO bar and chain oil is not available, use a good grade SAE 30 oil.

  • Page 14: Operating Instructions

    WARNING: Always stop unit and dis- connect spark plug before removing or instal- ling attachments. REMOVING PRUNER ATTACH- MENT, LINE TRIMMER ATTACH- MENT, OR OTHER OPTIONAL AT- TACHMENTS CAUTION: When removing or installing at- tachments, place the unit on a flat surface for stability.

  • Page 15: Important Points

    left shoulder and danger sign centered on your back. S Maintain full weight of tool on your left shoulder. Always release the throttle trigger and allow the engine to return to idle speed when not pruning. To stop engine: S Release the throttle trigger. S Push and release the engine ON/STOP switch.
  • Page 16 The trimmer line will advance approximately 2 inches (5 cm) each time the bottom of the trimmer head is tapped on the ground with the engine running at full throttle. The most efficient line length is the maximum length allowed by the line limiter. Always keep the shield in place when the tool is being operated.
  • Page 17 If any dealer other than an authorized service dealer performs work on the product, Poulan PRO may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance.
  • Page 18 1. Clean the cover and the area around it to keep dirt from falling into the carburetor chamber when the cover is removed. 2. Loosen knob by turning counterclock- wise. Remove air filter cover and air filter. NOTE: To avoid creating a fire hazard or producing harmful evaporative emissions, do not clean filter in gasoline or other flammable solvent.

  • Page 19: Chain Replacement

    1. Disconnect spark plug. 2. Check chain for proper tension. Adjust chain tension if necessary. See CHECK CHAIN TENSION section. 3. Sharpen cutters. S To sharpen the cutters, position the file holder level (90˚) so that it rests on the top edges of the cutter and depth gauge.

  • Page 20: Chain Adjustment

    4. Replace with a pre-wound spool, or re- place line using a 25 feet (8 meters) length of 0.080 inch (2 mm) diameter Poulan PRO brand line. WARNING: Never use wire, rope, string, etc., which can break off and become a dangerous missile.
  • Page 21 Slot 7. With your finger between the lines, wrap the lines evenly and firmly around the spool in a clockwise direction. 8. Position the lines in the guide slots. Guide slot Guide slot 9. Place the spool in the cover as shown below.

  • Page 22: Seasonal Storage

    CARBURETOR IDLE SPEED ADJUSTMENT WARNING: Keep others away when making idle speed adjustments. The chain will be moving during most of this procedure. Wear your protective equipment and observe all safety precautions. After making adjust- ments, the chain must not move at idle speed. The carburetor has been carefully set at the factory.
  • Page 23 S Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oil (air cooled) through the spark plug opening. Slowly pull the starter rope 8 to 10 times to distribute oil. S Replace spark plug with new one of recom- mended type and heat range.

  • Page 24: Your Warranty Rights And Obligations

    This is a limited warranty within the meaning of that term as defined in the Magnuson- -Moss Act of 1975. The policy of Poulan PRO is to continuously improve its products. Therefore, Poulan PRO reserves the right to change, modify, or...
  • Page 25 If you have any questions regarding your war- ranty rights and responsibilities, you should contact your nearest authorized service center, call Poulan PRO at 1- -800- -554- -6723, or send e-mail correspondence to emission.warranty @HCOP- -emission.com. WARRANTY COM- MENCEMENT DATE: The warranty period begins on the date the small off- -road engine is purchased.
