Product Manual

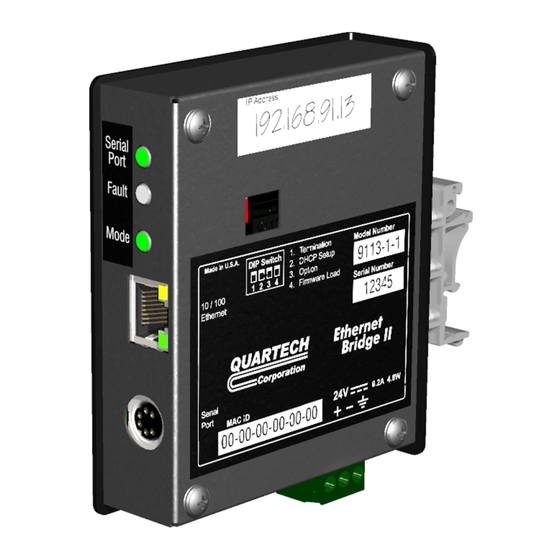

Model 9113-1-X
Ethernet Bridge II
for Ultra 3000 Servo
Quartech Corporation
15923 Angelo Drive
Macomb Township, Michigan 48042-4050
Phone: (586) 781-0373 FAX: (586) 781-0378
www.QuartechCorp.com
PM9113-1-X Revision 0
The product described in this document can have a variety of uses, the user and those responsible for applying this
equipment must satisfy themselves as to the acceptability of each application and the use of the unit. Under no
circumstances will QUARTECH CORPORATION be responsible or liable for any damage, including indirect or
consequential losses resulting from the use, misuse, or application of the unit.
The text, illustrations, charts, and examples included in this document are intended solely to help explain applications
of the product.
Due to the many variables associated with specific uses or applications, QUARTECH
CORPORATION cannot assume responsibility or liability for actual use based upon the data provided in this
document.
No patent liability is assumed by QUARTECH CORPORATION with respect to the use of circuits, information,
equipment, or software described in this document.
This document is subject to change without notice.
PM9113-1-X R evision 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9113-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quartech 9113-1 Series

Summary of Contents for Quartech 9113-1 Series

  • Page 1 CORPORATION cannot assume responsibility or liability for actual use based upon the data provided in this document. No patent liability is assumed by QUARTECH CORPORATION with respect to the use of circuits, information, equipment, or software described in this document.
  • Page 2 The 9113-1-1 allows Allen Bradley Ultraware software to access Ultra 3000 drives over an ethernet network when used in conjunction with the Quartech Ethernet Gateway program. The Ethernet Gateway program creates a virtual serial port that Ultraware will connect to. Your computer does not need to have an actual serial communication port.

  • Page 3: Theory Of Operation

    CompactLogic Processor use the SLC Typed Read and SLC Typed Write commands. 9113 Utility software is available free of charge at the Quartech Corporation web site. Also available is the latest version of this product manual plus other related manuals and documents.
  • Page 4 Page 4 Model 9113-1-X Product Manual Multiple Axis: The 9113 provides a bridge to a single drive When an application requires multiple drives to be controlled then each drive will have an associated 9113 with a unique IP address. An ethernet hub or switch will be required to connect the devices.

  • Page 5: Ethernet Cables

    Page 5 Model 9113-1-X Product Manual Ethernet Cables: The 9113 operates with standard ethernet cables available from many sources. The examples below are consistent with the TIA/EIA 568-B color code standard. Straight Through Cable Crossover Cable Device to Hub / Switch Device to Device Ethernet Cable Notes: - Straight through cables have identical color coded ends...
  • Page 6 Page 6 Model 9113-1-X Product Manual 2180 Cable - 9113 to Ultra 3000 (Supplied with 9113) 9 Pin Male D-Type Ultra 3000 Communication Parameters: 38400 Baud, 8 Data Bits, No Parity, One Stop Bit 2182 Cable - 9113 to 9120 Two Port Multiplexer 9 Pin Female D-Type Specifications: Electrical:...
  • Page 7 Page 7 Model 9113-1-X Product Manual 9113 Hardware Power Terminal: Power to the 9113 is supplied through a three position removable compression terminal block. The 9113 requires 24 volt, two hundred milliamp direct current power. An earth ground connection is also required and provided through the terminal block.

  • Page 8: Led Indicators

    Page 8 Model 9113-1-X Product Manual If switch four is off and switch two is on... This DHCP mode is used during initial setup, or when the IP address assigned to the 9113 is unknown, or when you attach it to a personal computer that is within a different subnet then the 9113. The IP Address Server utility is used to assign a temporary IP address to the 9113 so that the Web Utilities can be accessed.
  • Page 9 Page 9 Model 9113-1-X Product Manual 9113 Power-up: Power-up with DIP Switch 4 off... When power is applied to the 9113 it will begin looking for an active ethernet network. During this time the Mode LED and Fault LED will be lit steady red and remain that way until an active network is detected. Once an active network is detected the Fault LED will turn off.
  • Page 10 Page 10 Model 9113-1-X Product Manual Physical Size and Mounting: Dimensions in inches The 9113 is enclosed in a rugged steel case and provides a DIN rail mounting clip that allows quick mounting and dismounting. To mount the 9113 tilt it forward and hook the clip to the top of the DIN rail. Rotate downward until the clip snaps onto the bottom of the DIN rail.
  • Page 11 The 9113-1-1 allows Allen-Bradley Ultraware software to access Ultra 3000 drives over an ethernet network when used in conjunction with the Quartech Ethernet Gateway program. The Ethernet Gateway program creates a virtual serial port that Ultraware will connect to. Your computer does not need to have an actual serial port.
