Electrolux 183159 Owner's Manual

38 inch mower grass catcher.
Hide thumbs

Advertisement

O WNER'S MANUAL
Model No. QC38B
Product No. 954 14 01-10
38 Inch Mower
Grass Catcher
Assembly
Operation
Customer Responsibilities
Repair Parts
183159 Rev. 1 8.20.03 rad
Printed in U.S.A.

Advertisement

Table of Contents

   Related Manuals for Electrolux 183159

   Summary of Contents for Electrolux 183159

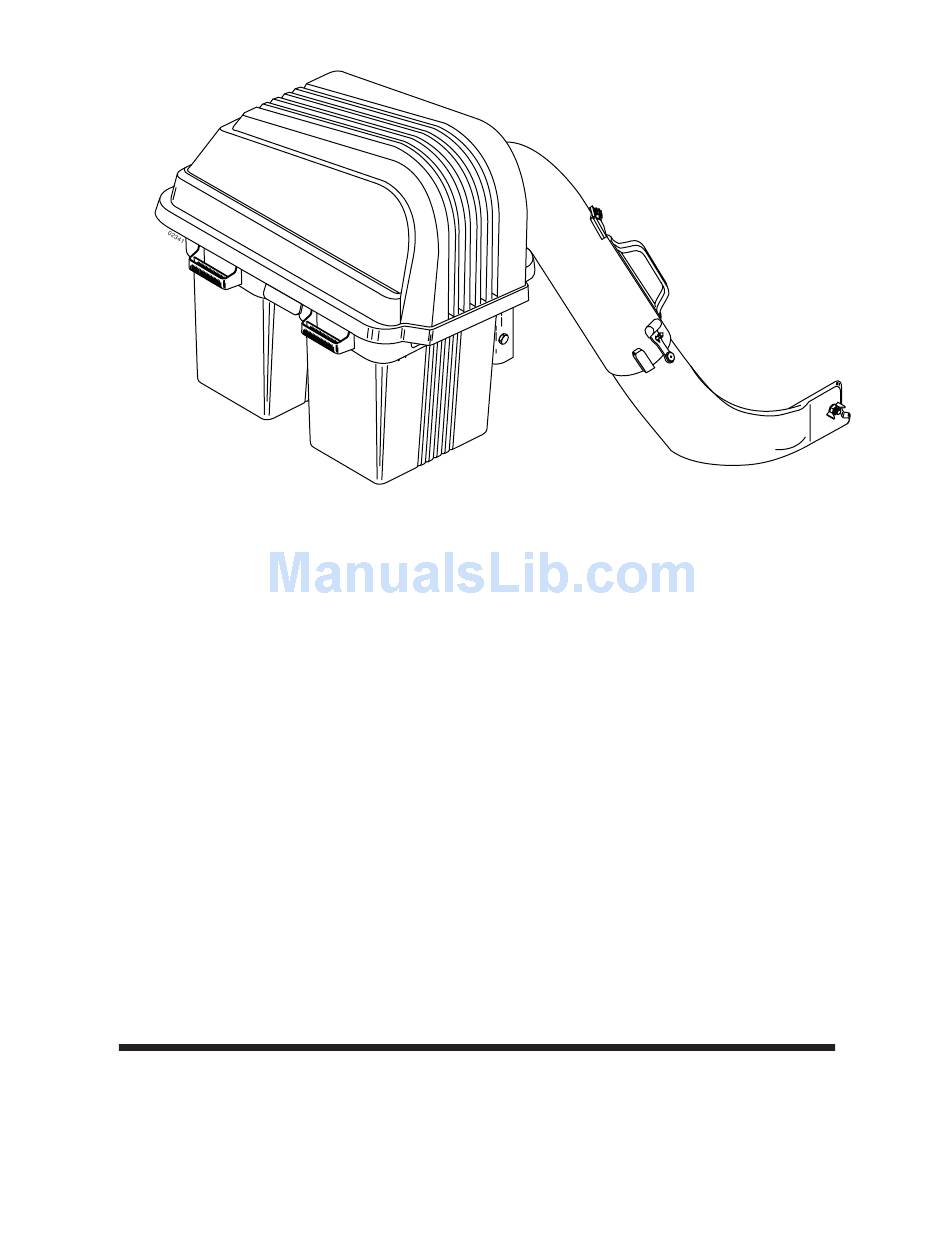

  • Page 1 O WNER’S MANUAL Model No. QC38B Product No. 954 14 01-10 38 Inch Mower Grass Catcher • Assembly • Operation • Customer Responsibilities • Repair Parts 183159 Rev. 1 8.20.03 rad Printed in U.S.A.
  • Page 2: Safety Rules

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting.
  • Page 3: Table Of Contents

    Safe Operation Practices for Ride-On Mowers • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
  • Page 4 Know Your Grass Catcher READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS CATCH ER. Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to prevent injury to yourself and others.
  • Page 5: Assembly

    PARTS IDEN TI FI CA TION GRASS CATCHER CONTAINERS NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the tractor, in the operator's position. CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR: •...
  • Page 6 BAGGER SUPPORT ASSEMBLY (See Figs. 2A & 2B) NOTE: If your tractor already has four (4) shoulder bolts installed on the rear drawbar, simply hang the support as- sembly on the bolts. Discard the four (4) shoulder bolts supplied and go on to Step 3 in struc tions. SUPPORT ASSEMBLY FIG.
  • Page 7 CONTAINER ASSEMBLY (See Fig. 4) No hardware required 1. Place bottom half inside of top half, as shown. 2. Place one foot inside bottom half and lift top half to meet bottom half. 3. Press halves tightly together while lifting top to lock into place as shown.
  • Page 8 UPPER CHUTE (See Figs. 7A & 7B) No hardware required 1. Lower mower deck to its lowest cutting position. 2. Assemble upper chute by inserting curved end into hole in back of cover. NOTE: Handle carefully so as not to damage dump bag in di ca tor.
  • Page 9: Operation

    TIPS FOR IMPROVED BAGGING OPE RA TION: Follow the mower operation instructions in your tractor owner's manual. When operating your grass catcher on a lawn where grass and leaf bagging equipment has not been used, you are picking up thatch and debris that has accumulated for long periods of time.
  • Page 10: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES GENERAL RECOMMENDATIONS Always observe safety rules when performing any main- te nance. • Before each use check for loose fasteners. • Clean unit thoroughly after each use. BLADE CARE For best results mower blades must be kept sharp. Re place bent or damaged blades.
  • Page 11 NOTES...
  • Page 12 REPAIR PARTS / PIÈCES DE RECHANGE GRASS CATCHER - - MODEL NUMBER QC38B / RAMASSE-HERBE - - NUMÉRO DE MODÈLE QC38B PRODUCT NUMBER 954 14 01-10 / NUMÉRO DE PRODUIT 954 14 01-10 14 15...
  • Page 13 REPAIR PARTS / PIÈCES DE RECHANGE GRASS CATCHER - - MODEL NUMBER QC38B / RAMASSE-HERBE - - NUMÉRO DE MODÈLE QC38B PRODUCT NUMBER 954 14 01-10 / NUMÉRO DE PRODUIT 954 14 01-10...

This manual is also suitable for:

954 14 01-10Qc38b
