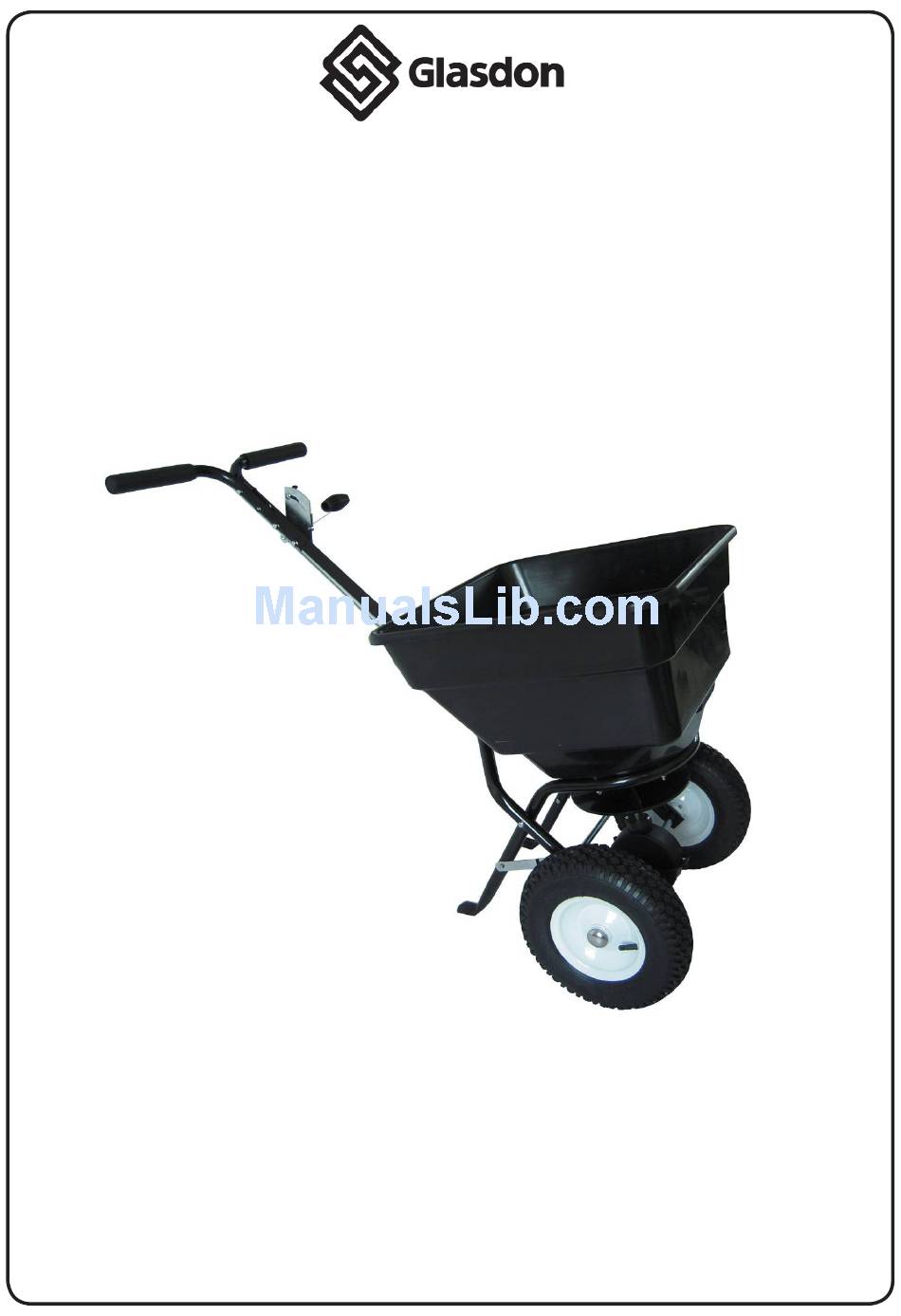

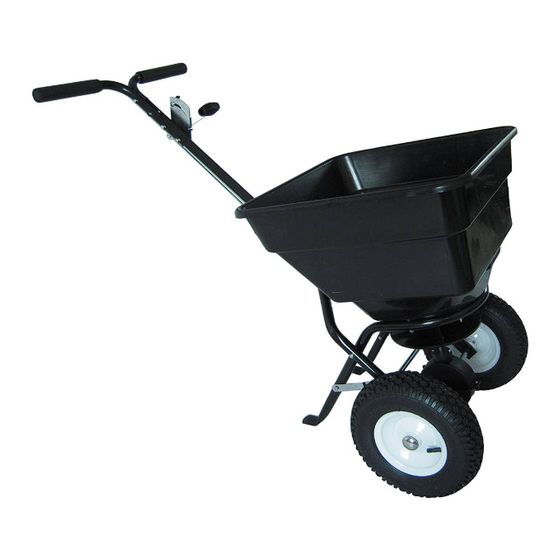

ICEMASTER 50
TM
Broadcast Spreader
INSTRUCTION LEAFLET
IMPORTANT NOTICE
This machine is designed to spread dry granular material only
IT WILL NOT SPREAD WET OR DAMP SALT
PLEASE MAKE THIS MANUAL AVAILABLE TO ALL PERSONNEL WHO
WILL USE OR MAINTAIN THIS BROADCAST SPREADER
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Glasdon ICEMASTER 50
Summary of Contents for Glasdon ICEMASTER 50
- Page 1 ICEMASTER 50 Broadcast Spreader INSTRUCTION LEAFLET IMPORTANT NOTICE This machine is designed to spread dry granular material only IT WILL NOT SPREAD WET OR DAMP SALT PLEASE MAKE THIS MANUAL AVAILABLE TO ALL PERSONNEL WHO WILL USE OR MAINTAIN THIS BROADCAST SPREADER...
- Page 2 ITEM 1 SPINNER PLATE QTY 1 ITEM 17 16MM FLAT WASHER QTY 1 ITEM 2 GEARBOX AND AXLE ASSEMBLY QTY 1 ITEM 18 HANDLE SHAFT QTY 1 ITEM 3 M4 X 20MM SCREW QTY 1 ITEM 19 PIVOT BRACKET ASSEMBLY QTY 1 ITEM 4 WHEEL ASSEMBLY FRAME...
- Page 3 Remove the bag of fixings and identify the following components: M6 X 35MM M6 X 45MM M6 X 50MM M6 X 55MM M4 X 20MM M5 X 45MM M6 X 60MM HEX HEAD BOLT HEX HEAD BOLT HEX HEAD BOLT HEX HEAD BOLT ROUND HEAD SCREW HEX HEAD BOLT...
- Page 4 Insert the Spinner Plate (ITEM 1) onto the ITEM 1 vertical shaft of the Gear Box and Axle Assembly (ITEM 2). Insert the M4 x 20mm Screw (ITEM 3) to secure the Spinner Plate in position. ITEM 2 Take the Wheel Assembly Frame (ITEM 4 - 2 off) and locate on ITEM 4 each end of the Gear Box and...
- Page 5 ITEM 14 ITEM 16 ITEM 13 ITEM 15 ITEM 12 ITEM 33 (x 4) ITEM 17 Slide Inner Axle Bush (ITEM 12 - 2 off) over each end of the Gearbox and Axle Assembly (ITEM 2) and fully insert into the Axle Bush (ITEM 5 - 2 off). Locate Wheel (ITEM 13) onto the right hand Axle and align the hole in the wheel hub with the hole in the axle.
- Page 6 The Upper Handle (ITEM 21 - 2 off) can ITEM 21 ITEM 22 be fitted in three positions on along the Handle Shaft (ITEM 18). ITEM 23 Select the most comfortable position ITEM 9 for use. Should either of the two higher positions be chosen, fit the Handle Spacer (ITEM 22) in the top fixing hole of the Upper Handles with M6 x 50mm...
- Page 7 Push the Handle of the Gauge and Lever Assembly (ITEM 24) to its lowest position and insert the upper end of the Control Rod (ITEM 28) into the hole at the ITEM 24 rear of the Handle. ITEM 28 ITEM 30 Take off one of the nuts on the Control Rod (ITEM 28) and insert the threaded end into...
-
Page 8: Operation
Ensure the Flow Control Lever is pushed downwards and the apertures in the base of the Hopper are closed before filling the Hopper with the spreading material. We recommend Glasdon Icemelt or other dry granular material. Do not use damp or wet grit/salt and do not overload the hopper (maximum capacity approximately 50kg).
