Summary of Contents for Hitron BRG35302
- Page 1 DOCSIS 1.1/2.0 Broadband Residential Cable Modem Gateway BRG-35302/BWA-35302 User Manual V1.0 1/31 V1.0...
-
Page 2: Revision History
Copyright: Copyright© 2006 HitronTechnologies Inc. All rights reserved. Revision History: Revision Date Description Issued by V1.0 2006/12/6 Initial Draft P. J. Huang 2/31 V1.0... -
Page 3: Table Of Contents
Configuring TCP/IP on the Windows NT 4.0 ............... 10 Configuring TCP/IP on a Macintosh Computer..............11 Connecting the Cable Modem ...................... 11 Installing the Cable Modem Using the USB Port (BRG35302) ............13 Hardware Installation........................13 USB Driver Installation ........................ 15 Windows 98 .......................... -
Page 4: Before You Begin
Chapter 1 Before You Begin This chapter provides an overview of the Hitron™ “Broadband Residential Cable Modem Gateway” BRG-35302 / BWA35302 (cable modem) and helps you prepare for its installation. CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing the Hitron “Broadband Residential... -
Page 5: Local Cable Network Service
Baseline privacy Interface MIB, RF Interface MIB • Front Panel LED display for easy network status monitoring. • USB connector, with plug n play capability, conveniently located for easy PC access. (BRG35302) • Support 802.11g, IP address filtering, Hidden SSID, WEP/ WPA-PSK wireless security （BWA35302）. -
Page 6: Prepare Your Workspace Ready For The Cable Modem Installation

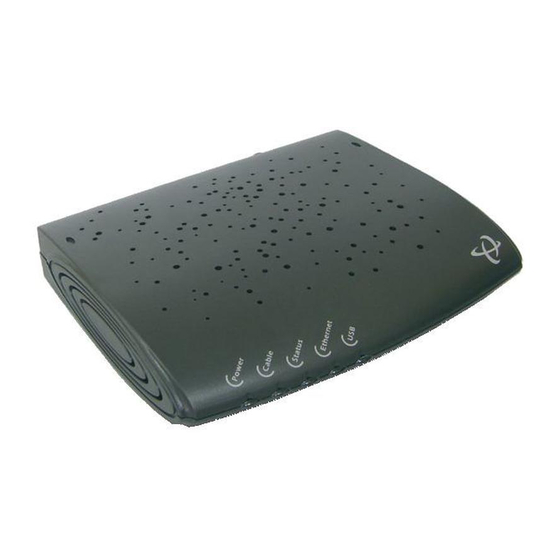

WARNING! Risk of electric shock. Do not expose the cable modem to water or moisture. Fig. 1 Outlook of Cable Modem BRG35302 BWA35302 To prepare your workspace: Position the cable modem so that it is located near the computer and the wall cable outlet. -
Page 7: Package Contents
Using the wrong power adapter can damage the cable modem or cause unstable while operating. • 1 180 cm (6') CAT.5 UTP Ethernet cable. • CAT 5 UTP (BRG35302) 1 180 cm (6') USB CABLE • 1 Installation Poster •... - Page 8 Using the USB port (BRG35302) enables you to install the cable modem more quickly and easily than connecting to the Internet using the USB port, because you do not have to install a network interface card (NIC) into your computer. The USB port, however, only enables you to connect one computer to the cable modem.
-
Page 9: Installing The Cable Modem Using The Ethernet Port
CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing Hitron™ “Broadband Residential Cable Modem Gateway” BRG-35302 / BWA-35302. This chapter describes how to install the cable modem using the Ethernet port. Using the Ethernet port enables you to use a single connection to the Internet or use a hub to connect multiple computers to the cable modem. -
Page 10: Verify The Tcp/Ip Protocol Configuration
Verify the TCP/IP Protocol Configuration Before installing the modem using the Ethernet setup, you must verify that your computer has the TCP/IP protocol installed. Follow the procedure for your operating system to verify or install the TCP/IP protocol. Configuring TCP/IP on Win 95, Win 98, and Win Me To configure TCP/IP on a computer with the Windows 95, Windows 98, or Windows Me operating system: Right-click the Network Neighborhood icon (Windows Me: the My Network Places icon) -
Page 11: Configuring Tcp/Ip On A Macintosh Computer
Select All Protocols from the Show bindings from drop-down list. Look for an entry named TCP/IP. If you see TCP/IP listed, double-click it to search for your Ethernet card. If you see your Ethernet card listed, you can now go to the section “Connecting the Cable Modem”... - Page 12 illustration above. The modem is operating properly if the Power, RF/DS, RF/US, and Status light emitting diodes (LEDs) are solid green (lit and not blinking). 12/31 V1.0...
-
Page 13: Installing The Cable Modem Using The Usb Port (Brg35302)
Hardware Installation CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing the Hitron™ “Broadband Residential Cable Modem Gateway” BRG-35302 / BWA-35302. This chapter provides an overview of how to install the cable modem using the USB port. First you connect the hardware (cable modem, power adapter). - Page 14 CAUTION! You must use the 5VDC power adapter that comes with the Hitron BRG-35302 cable modem. Using the wrong power adapter can damage the cable modem. Connect the USB end of the cable modem to the USB port on your computer using a USB cable.
-
Page 15: Usb Driver Installation
The modem is operating properly if the Power, RF/DS, RF/US, Status and USB light emitting diodes (LEDs) are solid green (lit and not blinking). You must now install the software drivers provided on the Installation CD. Be sure to follow the instructions (below) for your specific operating system. USB Driver Installation After the Hardware Installation, you must install the USB software driver. -
Page 16: Windows Me
Windows Me When the CM is powered on, the Add New hardware Wizard screen appears. Select Automatically search for a better driver (Recommended) and click Next. When Windows locates the driver files click Next to install the necessary files. Click Finish. The system Settings Change dialog box appears. Click Yes to reboot your computer. -
Page 17: Wireless Configuration（Bwa35302
CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing Hitron™ “Broadband Residential Cable Modem Gateway” BRG-35302 / BWA35302. This chapter provides an overview of how to set up the Wireless parameters via Ethernet Port : “Installing the Cable Modem Using the Ethernet... - Page 18 192.168.100.2, mask = 255.255.255.0, so that the computer and the Cable Modem will be connected. Open the Browser in your computer and key in http://192.168.100.1, you will be asked to key in the username and password.. As for the Username and Password, you can contact your service provider for the details. 18/31 V1.0...
-
Page 19: Wireless Setting
Wireless Setting There are several wireless transmission modes for selection: 802.11b（11B） ：It is of the old transmission mode. The max speed can be up to 11Mbps. 802.11b+（11B+） ：The formal description should be Packet Binary Convolutional Coding (PBCC). It is of the enhanced transmission mode of 11B, and the max speed can be up to twice of 11B (22Mbps). -
Page 20: Channel And Ssid
Channel and SSID SSID SSID（Service Set Identification）is the “name” of this wireless access point. It is also called the “Wireless Network Name” in the Windows XP environment. While the wireless LAN card searches for the access point, SSID is the important information for user to judge which Wireless Access Point is the expected one. -
Page 21: Hide Ssid
Hide SSID For security, wireless access point can disable the broadcast of SSID, and the configuration is to select the “Hide SSID”. Once the “Hide SSID” is selected, only the computer with same SSID can connect the wireless access point. On the other hand, the computer with the different SSID (or without SSID) will not “see”... -
Page 22: Encryption
Encryption The wireless LAN signal is broadcasted openly. This is vulnerable for information theft or hackers trying to sniff your private information. To provide a certain level of protection, it is recommended to enable the authentication for the connection and the encryption of the transmission data. - Page 23 8~63 characters, which can be alphabet, number, symbol, even the blank. WEP： The WEP is similar to the WPA-PSK. There is the encryption key between the PCs and access point, too. There are two encryption lengths for selection: 64 bits and 128 bits. If encryption strength is set to 64-bit or 128-bit, then only the selected WEP key box will automatically be populated with key values.
-
Page 24: Authentication Type (Wep Mode Only)
Authentication Type (WEP Mode only) Once the security mode is selected as WEP, one may need to select the Authentication Type. There are two selections in Authentication Type: Open System and Shared Key. The difference between Open System and Shared Key is the Authentication between Access Point and Computer. -
Page 25: Mac Filtering
MAC Filtering To restrict access based on MAC addresses, you can set up a list of the Trusted Devices, which are allowed to connect to the Access Point. If the “All Wireless Stations” is selected, the Access Point can accept all of the connection requests. -
Page 26: Cable Modem Front And Rear Panel
Chapter 5 Cable Modem Front and Rear Panel CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing the Hitron “Broadband Residential Cable Modem Gateway” BRG-35302/BWA-35302 (cable modem). This chapter describes the light emitting diodes (LEDs) on the front panel and the connectors on the rear panel of the cable modem. -
Page 27: Front Panel Leds
The current performance of the cable modem. • The condition of the network connection between the cable modem and your cable service provider. • The condition of the connection between your cable modem and electrical power. Fig. 5 Front Panel LEDs BRG35302 BWA35302 27/31 V1.0... - Page 28 Cable modem is transmitting/receiving data through the Ethernet port Green USB interface is connected Green-Blinking Data is being sent/received through the USB port (BRG35302) Green Wireless interface is connected Wireless Green-Blinking Data is being sent/received through the Wireless port (BWA35302) 28/31 V1.0...
-
Page 29: Rear Panel
Rear Panel Fig. 7 Rear Panel BRG35302 BWA35302 Fig. 8 Rear Panel Interface 5V/1A (BRG-35302) 5V/1.5A (BWA-35302) Caution: Be sure to use only the power adapter that came with the cable modem. Using the wrong power adapter can damage the cable modem or cause unstable while operating. -
Page 30: Notices
Chapter 6 Notices CAUTION! Be sure to read this entire User’s Manual from front to back in sequence before installing the Hitron “Broadband Residential Cable Modem Gateway” BRG-35302/BWA-35302 (cable modem) Safety Notice & Warning WARNING! Risk of electric shock. Do not expose the cable modem to water or moisture.. -
Page 31: Product Specification
Product Specification: Dimensions 120 mm (L) x 142mm (W) x 30mm (H)) Power 5V/1A (BRG35302)or 5V/1.5A(BWA35302) Power Consumption Max 4 Watts(BRG35302)/ Max 7 Watts (BWA35302) Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Operating Humidity 10%~90% Non Condensing Cable Interface Female “F”... - Page 32 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
