Bluetooth
Multi-Media Boombox
I'll Play All Your Tunes

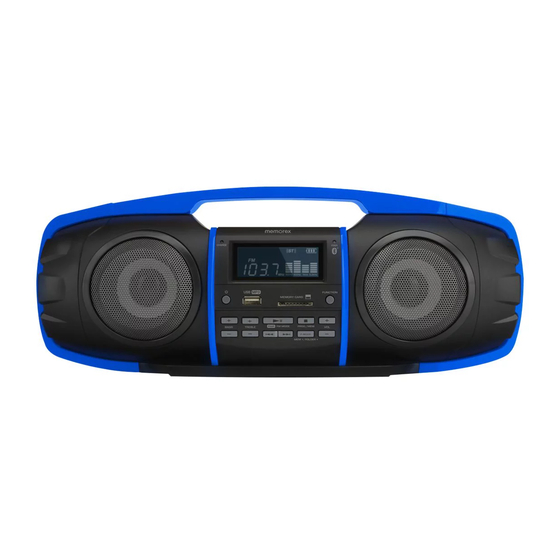

Congratulations on your purchase of the Memorex Bluetooth ® Multi-Media
Boombox! The MW5554, with built-in Bluetooth A2DP Profile Wireless Technology
®
rocks the house with its High Power Audio Amplifier and Spectrum Analyzer
displayed on the LCD screen. Its rechargeable Lithium Polymer battery makes
it portable. Choose your source of music from any Bluetooth-enabled device,
FM-PLL stereo radio, or MP3 files on a USB drive or SD Card. Please follow these
operational instructions carefully. Save them for future reference.
HOW TO USE THE MEMOREX MW5554

RECHARGEABLE BATTERY

The MW5554 Bluetooth Multi-Media Boombox features a built-in rechargeable
battery that can be charged using the Micro USB DC Jack located on the rear
bn
of the unit. Before first use, fully recharge the speaker for a minimum of 8 hours for
optimal performance and battery life.
1. Connect charging cable (included) to a computer USB port or USB power adapter
with 5V supply.
2. When connected to a power source, the CHARGE indicator will light solid Red
v
to indicate the charging is in progress.
3. The CHARGE indicator will turn off when the integrated battery is fully charged.
v
Notes:
• Charging time will vary if you listen to music while charging the battery. Turn off
the speaker power during the charging process or until battery is fully charged.
• To prolong battery life, completely discharge before fully recharging again.
• Recharge the battery at least once a month.

CHARGING AN EXTERNAL DEVICE

You can charge an external device by connecting its USB charging cable into the
rear USB CHARGING socket under the rubber flap. Charging does not work while
bq
in the FM mode.

OPERATION

Pair a Bluetooth-Enabled Mobile Device

1. Turn on MW5554 by pressing the Power button located on front of the unit.
X
2. Repeatedly press the Function button to select the Bluetooth mode (the
bk
Bluetooth indicator will appear in the display and a tone will sound). The unit
will automatically search for and pair to a previously paired Bluetooth device (if
previously paired). You can also press and hold the FM Mode/Pair/Play-Pause
( ) button for 2 seconds to begin pairing; the blue PAIR indicator will blink.
bt
3. Turn on your mobile device's Bluetooth option in settings to search for a
discoverable device with a Bluetooth signal. Select MRX-MW5554 from the
device results on your smartphone or tablet.
4. You can also switch between paired devices or pair a new device by pressing and
holding the FM Mode/Pair/Play-Pause ( ) button for 2 seconds; the blue PAIR
bt
indicator will blink.
5. You will hear an audible tone indicating the Bluetooth connection is now enabled
and the blue PAIR indicator will light solid when successfully paired.
U
6. Use "0000" if a pairing code is necessary on your mobile device.
7. Find your music selection on your mobile device, select play and enjoy!
8. While connected via Bluetooth, press the FM Mode/Pair/Play-Pause (
to Play or Pause and the Tune/Skip 9 / : buttons to go back or
bt an ao
advance tracks.
If connection is lost after successful pairing, check to make sure the distance
between speaker and Bluetooth-enabled device does not exceed 30 ft/10 m. If the
connection is interrupted due to low battery, switch the speaker off, recharge the
internal battery, and repeat steps when fully charged.
Notes:
• When the unit is on and in Bluetooth source mode, the speaker will automatically
try to connect to the most recently played paired device when available. Up to
six devices maximum may be stored in Bluetooth memory.
• To avoid interference, deactivate Wi-Fi on your device (smartphone, tablet, etc.)
when using Bluetooth.

Listen to Music Using USB or SD Card with MP3 Audio Files

1. Insert a USB drive into USB MP3 socket or SD Card into SD socket bl.
W
2. Repeatedly press the Function button to select the USB or SD CARD mode;
bk
the unit will automatically start playing the music after up to 60 seconds.
3. Press the FM Mode/Pair/Play-Pause ( ) button to Play or Pause and the Tune/
bt
Skip 9 / : buttons to go back or advance tracks. You can also press
an ao
the Stop /Program/Memory button FOLDER to stop playback. Select different folders
ap
FOLDER
using the P.MODE/MEM +/FOLDER + button (press and hold) or to cycle
aq
through the Playback modes: Repeat 1 , Repeat Folder
FOLDER
or Shuffle .
4. You can program up to 20 tracks to play back in the order you set. When in the
FOLDER
Stop mode, press the Stop /Program/Memory button ap; "P01" (Program 1) will
blink in the display. Select a track to be played first using the Tune/Skip
/ : buttons, then press the Stop /Program/Memory button ap. Repeat to
ao
program up to 20 tracks and press the FM Mode/Pair/Play-Pause (
to start program playback.
5. To delete a program, press the Stop /Program/Memory button twice while in the
ap
Stop mode.
HOW TO USE THE MEMOREX MW5554
6. To remove the USB drive or SD Card, first turn the unit's power off by pressing the
Power button X.

Listen to Music Using FM-PLL Radio

Enjoy your favorite FM stations with crisp, digital tuning and easy programming for
station presets.
1. Repeatedly press the Function button to select the FM mode.
bk
2. Manually search for stations by tapping the Tune/Skip
auto search by pressing and holding the buttons for 2 seconds; the next strong FM
station will tune in.
3. Static can be reduced on a station by changing from the Stereo ("ST") mode to
Mono mode by pressing the FM Mode/Pair/Play-Pause (
4. Adjust the FM Antenna as desired.
bm
5. To save station selections, press the Stop /Program/Memory button ap, then
the Tune/Skip 9 / : buttons. Confirm the preset by pressing the Stop
an ao
Program/Memory button ap.
6. Repeat step 5 to save up to 20 stations for recall.
7. Press P.MODE/MEM +/FOLDER + button to recall and play preset stations.
aq

Listen to Music Using the Line-In Source

This unit provides an auxiliary audio signal input jack for connecting external audio
devices like MP3 players, CD players and listening to your external source through
the speakers of this system.
1. Insert one end of an audio cable (not included) into the Line Out Jack (or
Headphone Jack) on your external audio device and the other end into the AUX
Jack bp.
2. Repeatedly press the Function button to select the AUX mode.
bk
3. Use the connected external audio device to play and pause music. Sound will be
heard through the speaker.
4. Adjust the speaker volume level either by pushing the "+"
buttons on this unit, or by using the volume controls on the mobile device.
HEADPHONE JACK
For private listening, insert headphone cable (not included) into the Headphone jack
located on the back of the unit.
bo
AUTO OFF
The MW5554 will automatically shut off if there is no music from a Line-In source or
from a Bluetooth-enabled device for more than 20 minutes.
MAINTAINING YOUR SYSTEM FOR CONTINUED ENJOYMENT
• When not in use, turn the unit off. To extend the battery life of your external
audio/mobile device, turn off the Bluetooth signal when not in use.
• Keep the unit away from direct sunlight and excessive heat.
• Clean durable rubberized exterior with a damp soft cloth.
• Protect your furniture when placing the unit on wood and lacquered finishes.

LED INDICATOR

MODE LED EFFECT MODE
Charging External Device Solid Red Device Paired
) button
Full Charge Off OFF

TROUBLESHOOTING

Not Charging:
• Check to make sure the USB cable (provided) is plugged into the Micro USB Jack
and the other end is plugged into a USB Power Adapter (not included) or Powered
USB jack on a computer.
• Plug another device into the same outlet to confirm the power source is working.
Sound not clear or no sound:
• Check volume levels on both MW5554 speaker and connected device.
• Check distance between this unit and the connected device.
Music does not play from external device:
• Make sure you are using a Bluetooth-enabled device.
• Select MRX-MW5554 as your speaker device, disconnect this unit and device
from pairing with all other devices.
• Check if both devices are connected.
• Restart the MW5554 and auto-connect with the Bluetooth-enabled device.
Unit gets warm after extended play at high volume
, Repeat All
• This is normal; turn the unit off for a period of time or lower the volume.
MEM-CE, LLC.
11485 Valley View Road, Eden Prairie, MN 55344 USA MEMOREX-CE.COM
9
an
Memorex and the Memorex logo are trademarks of Imation Corp and its affiliates. The Bluetooth
) button mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
bt
Imation Corp is under license. All other trademarks are the property of their respective owners.
For additional setup, operating assistance or an electronic version of this user manual, please visit
www.MEMOREX-CE.COM
Please read these instructions completely

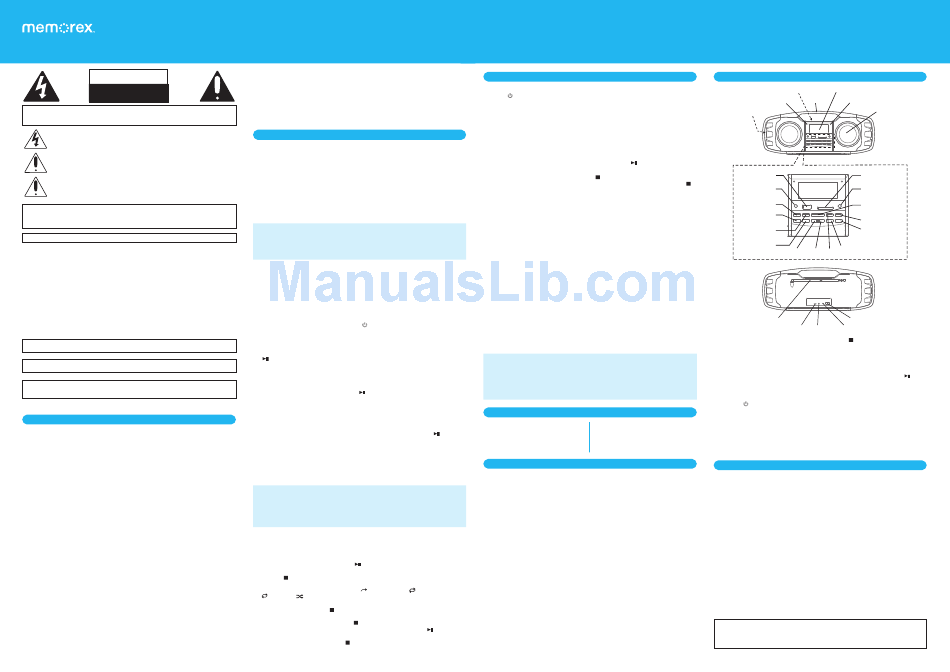

LOCATION OF CONTROLS

w
v
u
9 / : buttons or
an ao
) button bt.
W
/
X
at
ak
al
am
an
or "–" Volume
ar as
bm
bn
1. Passive Subwoofer
2. CHARGE Indicator
3. Tablet/Smartphone Holder
4. Carrying Handle
5. LCD Display
6. PAIR Indicator
7. Speaker
8. USB MP3 Socket (for MP3
Playback)
9. Power Button
10. Bass + Button
11. Bass – Button
LED EFFECT
12. Treble + Button
Solid Blue
13. Treble – Button
Off
14. Tune –/Skip 9 Button
15. Tune +/Skip : Button

SPECIFICATIONS AND COMPATIBILITY

Power Source ......................................Rechargeable Lithium 3.7V/ 2100mAh X 1 PC
Output Power .................................................................. 2.5W x 2 (RMS @10% THD)
Charging Time ....................................................................................... Up to 6 Hours
Playback Time ................................................................................................. 4 Hours
Dimensions ....................................................................393(W) x 150(H) x 128(D) mm
Weight ...............................................................................................................1.48kg
Compatibility .....................................................
Radio Frequency .....................................................................FM: 87.5MHz–108MHz
Frequency Response............................................................................ 100Hz~16KHz
Accessories .................................................................................. USB Cable, Manual
LIMITED WARRANTY
MEM-CE, LLC. warrants this product against defects for 90 days from the date of original purchase.
MEM-CE, LLC. shall not be responsible for any lost data or other incidental or consequential
damages related to this product. Some jurisdictions do not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights,
and you may have other rights which may vary from one state, province or country to another.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN
THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEM-CE, LLC.
® word
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT:
WWW.MEMOREX-CE.COM OR CONTACT CUSTOMER SERVICE: For customers calling within the
United States and Canada, call 1-877-363-6673
User Guide
before operating this product.
MEMOREX-CE.COM
MW5554
y
x
U
V
bl
bk
bt
as
ar
aq
ao
ap
bq
bp
bo
16. Stop /Program/Memory Button
17. P.MODE (Playback Mode)/MEM +/
FOLDER + Button
18. Volume + Button
19. Volume – Button
20. FM Mode/Pair/Play-Pause ( )
Button
21. Function Button
22. SD Card Socket
23. FM Antenna
24. DC Jack (Micro USB)
25. Headphone Jack
26. Auxiliary (AUX) Jack
27. USB CHARGING Socket (for
Charging)
Bluetooth 4.0, 3.0,2.1+EDR Compatible
