Sector Status Panel
Table 2‐4: HBS main button bar functions
Menu Item Purpose
Help side
Link Budget Calculator
arrow
Check Updates
About
2.7.2 Sector Status Panel
Sector‐level parameters are set before the base station is activated and are applicable for
each HSU in the sector.

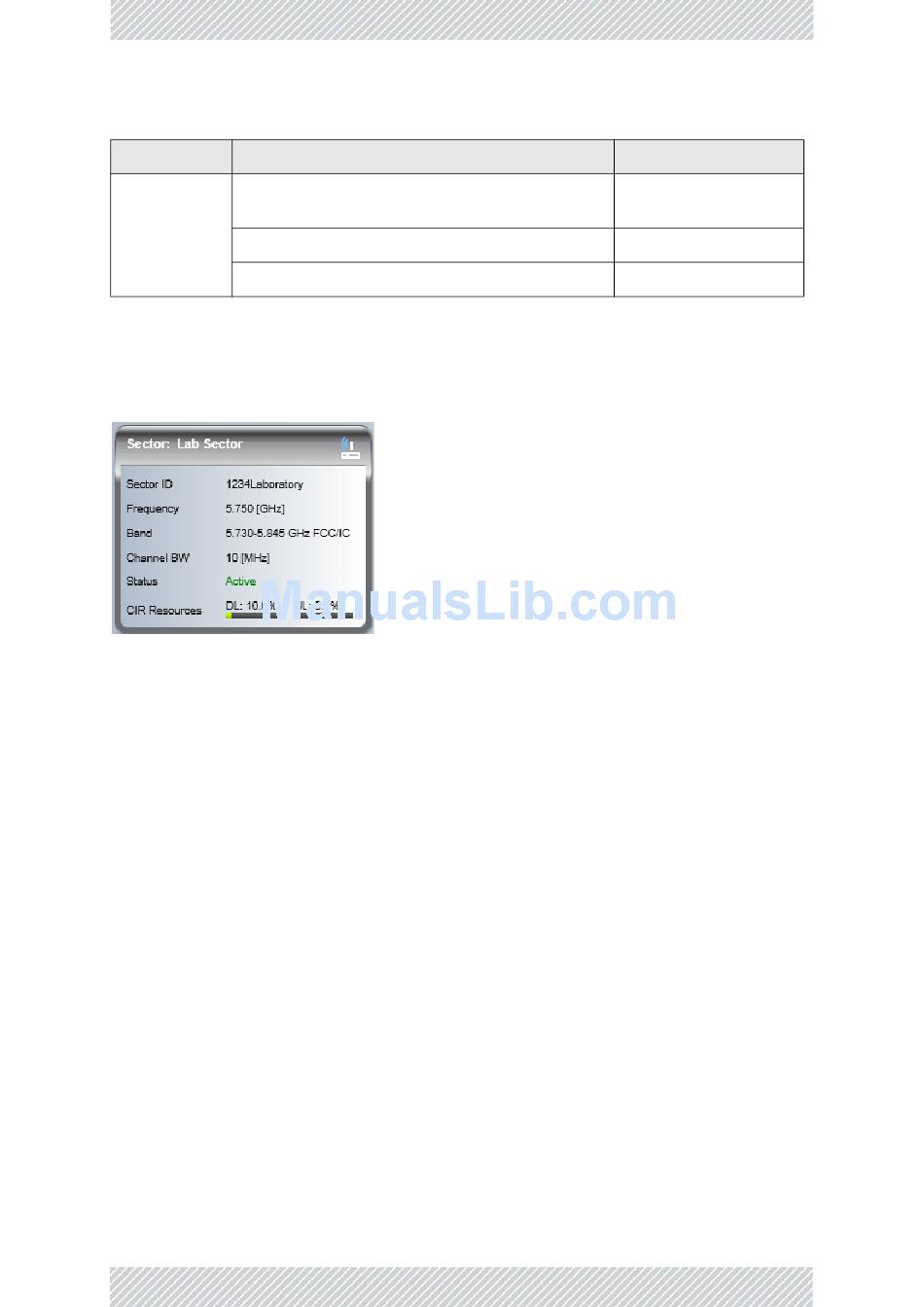

Figure 2‐17: Sector Status panel
Sector ID: The name of the sector. When configuring HSUs, make sure their Sector ID is the
same as that here, otherwise connection may not be possible.
Frequency, Band: The Frequency and Frequency Band in use in the sector.
Channel BW: Bandwidth of the specific channel. This can be configured.
Status: Indicates whether the HBS has been activated or not.
CIR Resources: Indicate what percentage of the allocated CIR resources are being used by the
sector at any given moment.
2.7.3 Base Station Panel
The Base Station panel shows basic information for the connected Base Station.
RADWIN 5000 Configuration Guide
RADWIN Manager Overview
Cross Reference
App Note "Link Budget
Calculator"
Release 4.9.17 2‐17
