X-dream Fly X-TRIANGLE Operation Manual

Parachute
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
X-TRIANGLE
Operation manual
date 09|2017
www.x-dreamfly.ch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-TRIANGLE and is the answer not in the manual?

Questions and answers

Summary of Contents for X-dream Fly X-TRIANGLE

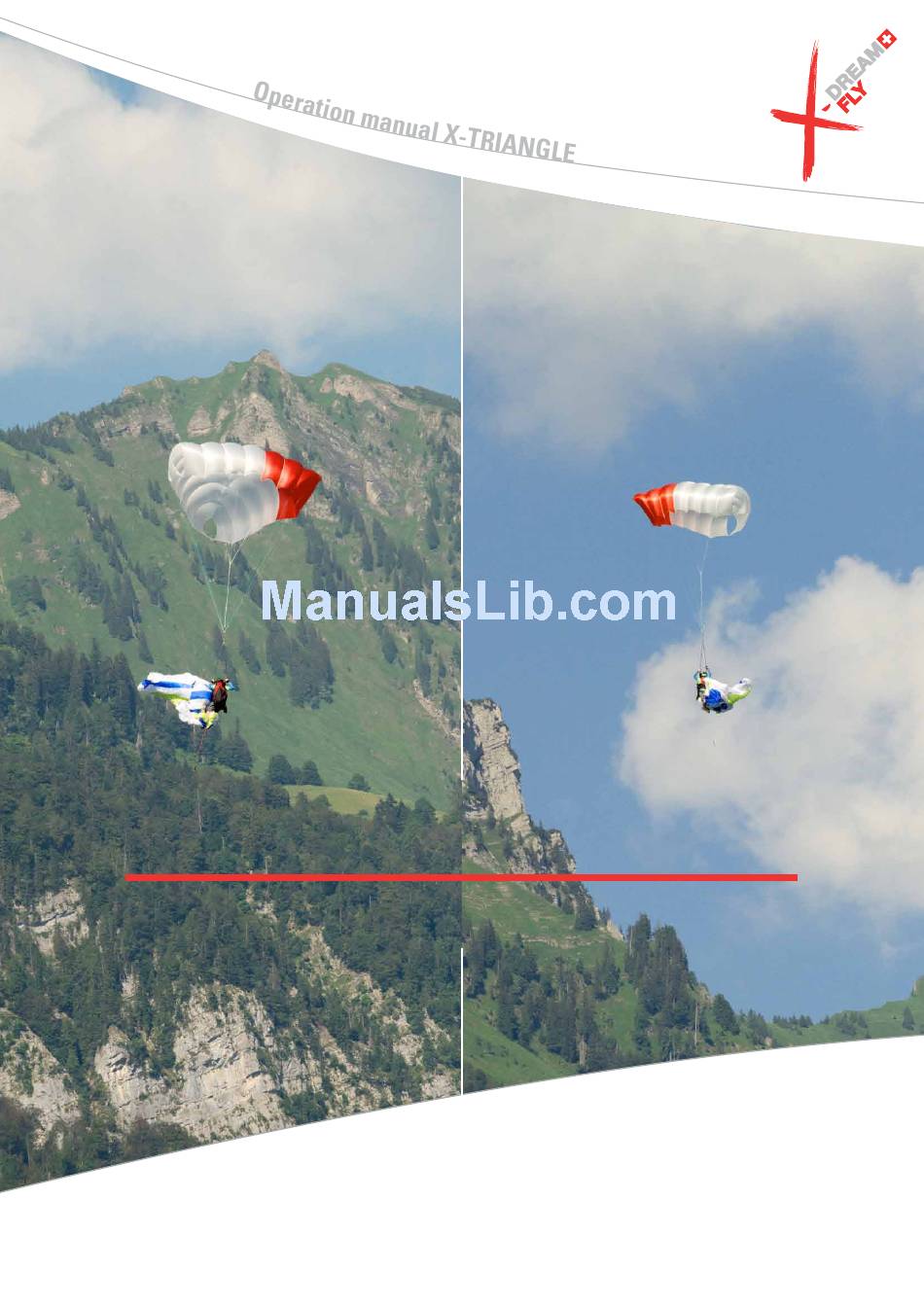

  • Page 1 X-TRIANGLE Operation manual date 09|2017 www.x-dreamfly.ch...
  • Page 2 Text: Daniel Loritz & Gerald Roschmann Graphic & design: Manu Feuerstein Copyright by X-dream Fly Unterbach 9 A-6653 Bach / Tirol Tel.: +43 676 92 52 780 Mail: info@x-dreamfly.ch www.x-dreamfly.ch Web: page 2 of 39 www.x-dreamfly.ch...

  • Page 3: Table Of Contents

    Disconnect the glider ............................9 Flying with the X-TRIANGLE ..........................10 Landing with the rescue ............................11 Potential errors and hazards ..........................11 5. Maintenance and inspection of the X-TRIANGLE ................... 12 Behaviour if damaged ............................12 Storage .................................. 12 Cleaning and drying ..............................

  • Page 4: Forword

    X-TRIANGLE. of the We wish you much success and joy dealing with the X-TRIANGLE! Dani Loritz and Geri Roschmann Team X-dream Fly ..live your dream page 4 of 39 www.x-dreamfly.ch...

  • Page 5: Introduction

    Through intensive research work we managed to develop a rescue system with maximum reliability, strength and fastest opening time at low sink rate. The X-TRIANGLE is easy to pack with a small packing size, low overall weight and a very high pendulum stability. Despite a high maximum weight load we could achieve a very low sink rate.

  • Page 6: The Construction

    The construction Legend: sidelines middlelines steeringlines riser 4.1 loop in riser prolongation canopy flight direction red (gray) corner page 6 of 39 www.x-dreamfly.ch...

  • Page 7: Necessary Documentation

    Components of the delivery • X-dream Fly X-TRIANGLE rescue • X-dream Fly X-TRIANGLE inner container (4-leaf container) • X-dream Fly X-TRIANGLE pack instructions (in the operations manual for free download) • X-dream Fly X-TRIANGLE inspection record • X-dream Fly X-TRIANGLE operation manual The operation manual is available for download at www.x-dreamfly.ch...

  • Page 8: Quality Assurance

    Quality assurance The X-dream Fly rescue devices go through a step by step control during the whole production. After every step, the product is accurately checked and only after a successful pass of the test the following step will be started.

  • Page 9: Throwing The X-Triangle

    The scissors position The X-TRIANGLE is extremely pendulum stabl. Nevertheless, the danger of a scissor position (down plane) should be reduced by stabilising or retraction the main glider. A scissor position increases the rate of descent and produce an...

  • Page 10: Flying With The X-Triangle

    The X-TRIANGLE can not be stalled by pulling both steering lines. We recommend to study and train the use of the X-TRIANGLE in advance. If your rescue is mounted to your shoulders it can be difficult to turn your head, to orientate yourselves to the risers of the X-TRIANGLE.

  • Page 11: Landing With The Rescue

    Forward speed according situation paraglider situation sink forward speed steering not disconnected variable 0 - 3 km|h difficult (paraglider not deformed) one side disconnected good | stable 4 - 7 km|h good both sides disconnected very good | very stable 7 - 12 km|h very good Landing with the rescue device...

  • Page 12: Maintenance And Inspection Of The X-Triangle

    X-TRIANGLE rescue device. Avoid unnecessary burdens and let your X-TRIANGLE never unnecessarily lying in the sun. The rescue equipment should be dried in clean, dry and dark rooms. Rescue packages that are no longer used should be stored loosely rolled in a bag.

  • Page 13: Correct Disposal Of The Rescue Equipment

    V-line to the harness. When using a connection carabiner the breaking load of the carabiner must have a min. of 2400 daN. If the X-TRIANGLE is connected to the shoulder area with two carabiners or as a front container on two lateral attachment points (usually the front container is mounted on the main carabiners), each individual carabiner need to have a strength of 1200 daN at least.

  • Page 14: Funktion & Assembly For Packing X-Triangle

    8. Funktion & assembly for packing X-TRIANGLE Assembly ring system Situation of delivery (opening without forward drive) 1. brake handles mounted and fixed 2. ring system fixed through steel pin 3. spliced line loops on the brake lines looped into the steel pin (IMPORTANT: both loops, 1x left and 1x right brake line) to release and open the ring system and generate a forward drive.
  • Page 15 Assembly ring system for re-packing and after an opening 1.) Assembly of the rubber band on the steel pin for fixing them afer closing the ring system. 2.) Closing the ring system (using a short line makes this procedure easier). page 15 of 39 www.x-dreamfly.ch...
  • Page 16 3.) Pass the black (larger) loop through the ring. 4.) Then the yellow (smaller) loop is looped through the black loop. page 16 of 39 www.x-dreamfly.ch...
  • Page 17 (one loop left and one loop on the right brake line) into the pin. This is the only way to ensure that you can activate the ring system by pulling one or both brakes and thus forward drive can be generated. 6.) Fully assembled ring system on the X-TRIANGLE. page 17 of 39 www.x-dreamfly.ch...
  • Page 18 Montage break handle First the upper yellow plastik pin trough the metall D-ring, then the lower yellow plastic pin trough the small line loop. page 18 of 39 www.x-dreamfly.ch...
  • Page 19 X-TRIANGLE. 3. Due the release of the ring system the X-TRIANGLE generate a forward drive into the direction of the red corner of the canopy. This forward motion can be controlled and steered with the brake handles.

  • Page 20: Packing Manual X-Triangle

    9. Packing manual X-TRIANGLE Before you start to pack, the X-TRIANGLE should be checked for any damage to the canopy, the lines and the main riser. The lines should be checked for proper performance and to unravel if necessary. Image 1 Overwiew riser and lines.
  • Page 21 Image 2 Sort the canopy (fabric) that the red corner looks up (flying direction). All lines are sorted correct without any knots or line overs. Images 3 & 4 Take a line and mount all the packing loops on top of the canopy. page 21 of 39 www.x-dreamfly.ch...
  • Page 22 Images 5 & 6 In the lower corners of the panels (at the line attachments) are black and blue arrows printed. Search the panel without printed arrow and drop it to the left. Image 7 Drop the panels with the blue arrows to the left side (the arrows then get to the bottom of each panel).
  • Page 23 Image 8 Continue dropping the panels with the blue arrows to the left side till you reach the corner panel. Flatten and streak this corner panel to the outside as you can see in the pic. Make sure the line on this panel re- mains in the center of the base and is not pulled outward.
  • Page 24 (blue arrows) is now ready. Images 11 & 12 Put now the right side of the X-TRIANGLE on the already sorted left until the black arrow appears. Now the panels of the right side (black arrows) are sorted like on the left side.
  • Page 25 Images 13 to 15 Continue as in the images 13 until 15. page 25 of 39 www.x-dreamfly.ch...
  • Page 26 Image 16 The canopy of the X-TRIANGLE is now sorted with the red corner up in front of you. Through the opening (side slot) the center lines are visible. Image 17 Search all 9 center lines take them into your hand and roam freely from the base edge up to the top line attachments.
  • Page 27 Pull the fabric up to the top of the inside of the rescue. Image 19 The panels of the X-TRIANGLE are ready sorted to start with the S-turns to fold the X-TRIANGLE canopy on container width.
  • Page 28 On side gets folded upwards. Images 22 & 23 The other side gets folded downward in a S-turn. (final width) The X-TRIANGLE is now folded on container width and should be weighted down with sandbags to simplify the next process. page 28 of 39...
  • Page 29 Images 24 & 25 The X-TRIANGLE will now be folded in S-turns for container length. NOTE: The line at the top of the rescue (packing loops line) has the to be removed from the canopy. Images 26 & 27 The now finished folded canopy (final size of the container in length and width) must be rotated 180 degrees.
  • Page 30 Images 28 to 30 The deployment bag will be closed now. Pull the black rubber band in correct order of leaf no. 1 up to leaf no. 4 through the eyelet. page 30 of 39 www.x-dreamfly.ch...
  • Page 31 Image 31 Fix the black rubber band with a line loop. This line loop on the black rubber band is made first, thereby the canopy is fixed into the container. This packing method en- sures maximum throwing power. The lines released first, get stretched and opens the last line loop with the black rubber band, afterwards the canopy will be released...
  • Page 32 Images 35 & 36 The line bundles are stored into the line department in leaf no. 5 of the deployment bag. Images 37 & 38 The lateral ears of the container can be inserted under the cloth of the canopy as shown in the picture. page 32 of 39 www.x-dreamfly.ch...
  • Page 33 Image 39 The cover sheet leaf no. 5 is now closed with the plastic stick, starting from the inside out. Image 40 Pull the black rubber band from the inside out through the eyelet in leaf no. 5 (Take care that the lines remain in position on top of the eyelet of leaf no.
  • Page 34 Images 41 & 42 Pull the plastic stick through the black rubber band and slide back through the small hole. Images 43 to 45 Store the line loop, the plastic stick and the flap of cover sheet 5 into the provided pocket. page 34 of 39 www.x-dreamfly.ch...
  • Page 35 (manual harness). Make sure that you mount the X-TRIANGLE proper and in the right way. There are three loops to connect the handle from the harness to the inner container from the X-TRIANGLE.

  • Page 36: Appendix Inspection Records

    10. Appendix Inspection records Wartung/Packnachweis Packing Advice/Inspection Book Serien Nr. Serial No. Nr.: Datum: Tätigkeit: Notöffnung: Spezielles: Packwart: Unterschrift: No.: Date: Activity: Emergency use: Specials: Name: Signature: Nachprüfung Datum: Beanstandung: Spezielles: Prüfer: Unterschrift: Inspection Date: Result: Specials: Inspector: Signature: page 36 of 39 www.x-dreamfly.ch...
  • Page 37 COPYRIGHT © 2017 by X-dream Fly All rights reserved. No part of this manual may be reproduced in any form without permission form X-dream Fly. We wish you continued great flights and many happy landings with the X-dream Fly product X-TRIANGLE.

  • Page 38: Release

    3. Implementation and installation The implementation and installation of a X-dream Fly rescue unit in the inner container of a third-party may be made only by trained personal by X-dream Fly. During the conversion and installation of the rescue the manual of the rescue as also of the harness - or inside container manufacturer - has to exist and the corresponding installa- tion and pack instructions need to be followed.
  • Page 39 The operating manual as well as additional information can be found as download under www.x-dreamfly.ch Bach, 10|09|2017 Gerald Roschmann X-dream Fly Unterbach 9 A-6653 Bach/Tirol page 37 of 39 www.x-dreamfly.ch...
