Poulan Pro BH 2660 Instruction Manual

Poulan Pro BH 2660 Instruction Manual

Poulan chain saw instruction manual
Hide thumbs Also See for BH 2660:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

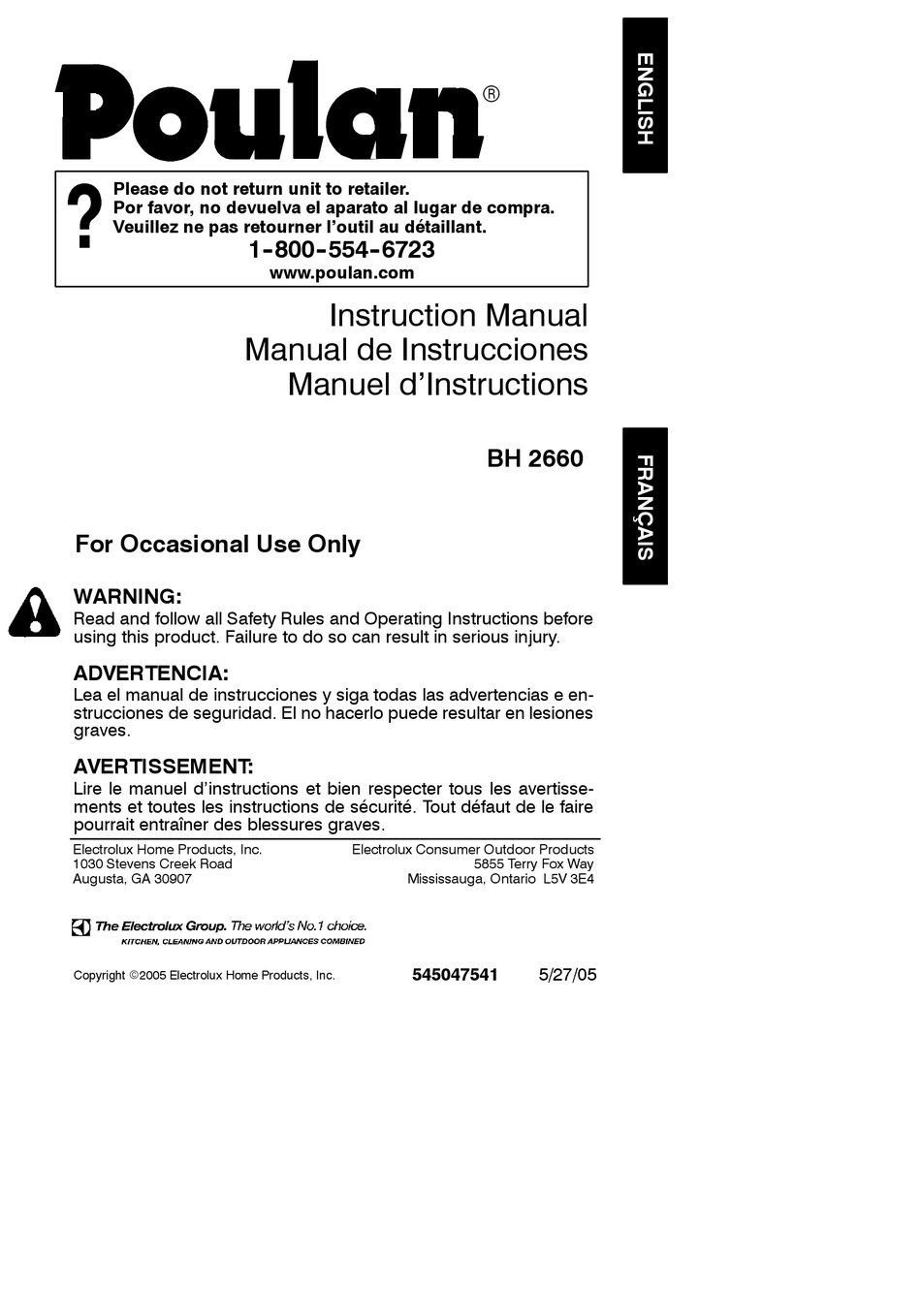

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1- -800- -554- -6723
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e en-
strucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
1030 Stevens Creek Road
Augusta, GA 30907
Copyright E2005 Electrolux Home Products, Inc.
www.poulan.com

Instruction Manual

Manuel d'Instructions
Electrolux Consumer Outdoor Products
Mississauga, Ontario L5V 3E4
545047541
R
BH 2660
5855 Terry Fox Way
5/27/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH 2660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Poulan Pro BH 2660

Summary of Contents for Poulan Pro BH 2660

  • Page 1: Instruction Manual

    Electrolux Home Products, Inc. 1030 Stevens Creek Road Augusta, GA 30907 Copyright E2005 Electrolux Home Products, Inc. Instruction Manual BH 2660 Electrolux Consumer Outdoor Products 5855 Terry Fox Way Mississauga, Ontario L5V 3E4 545047541 5/27/05...

  • Page 2: Identification Of Symbols

    IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when operating the chain saw. WARNING! should be avoided;...

  • Page 3: Kickback Warning

    ging, vented goggles or face screen; an approved safety hard hat; and sound barri- ers (ear plugs or mufflers) to protect your hearing. Regular users should have hear- ing checked regularly as chain saw noise can damage hearing. Secure hair above shoulder length.

  • Page 4: Maintain Control

    wood closes in and pinches the moving saw chain in the cut along the top of the guide bar and the saw chain is suddenly stopped. This sudden stopping of the chain results in a reversal of the chain force used to cut wood and causes the saw to move in the opposite direction of the chain rotation.
  • Page 5 thrown off balance and lose control of the saw. S Do not cut above shoulder height. It is diffi- cult to maintain control of saw above shoulder height. KICKBACK SAFETY FEATURES WARNING: The following features are included on your saw to help reduce the hazard of kickback;...

  • Page 6: Assembly

    Z62.1, Z62.3, & ANSI B175.1 when used on saws listed in this manual. Use of bar and Computed kickback angle (CKA) Table MODEL Length BH 2660 952044418 NOTE: If this saw is to be used for commer- cial logging, a chain brake is required and shall...

  • Page 7: Chain Tension

    guide bar stops against clutch drum sprocket. Mount the Bar 6. Carefully remove the chain from the pack- age. Hold chain with the drive links as shown. Tip of CUTTERS MUST FACE IN DIIRECTION OF ROTATION Depth Gauge Cutters Drive Links Place chain onto the sprocket 7.

  • Page 8: Operation

    OPERATION KNOW YOUR SAW READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Chain Front Hand Guard Adjustment Tool...

  • Page 9: Fueling Engine

    3.2 ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. Included with this saw is a 3.2 ounce container of Poulan/Weed Eater brand synthetic oil. Pour the entire contents of this container into 1 gallon of gasoline to achieve the proper fuel mixture.

  • Page 10: Starting A Warm Engine

    CHOKE/FAST IDLE LEVER (SIDE VIEW) Choke/ fast idle lever HALF FULL 6. Pull the starter rope sharply with your right hand until the engine starts. 7. Allow the engine to run for approximately 5 seconds. Then, squeeze and release throttle trigger to allow engine to return to idle speed.

  • Page 11: Tree Felling Techniques

    the cut is completed, allowing the en- gine to idle. If you run the saw at full throttle without a cutting load, unneces- sary wear can occur to the chain, bar, and engine. It is recommended that the engine not be operated for lon- ger than 30 seconds at full throttle.
  • Page 12 with your saw. Be extremely cautious with partially fallen trees that may be poorly supported. When a tree doesn’t fall com- pletely, set the saw aside and pull down the tree with a cable winch, block and tackle, or tractor. CUTTING A FALLEN TREE (BUCKING) Bucking is the term used for cutting a fallen...
  • Page 13 LIMBING AND PRUNING WARNING: Be alert for and guard against kickback. Do not allow the moving chain to contact any other branches or ob- jects at the nose of the guide bar when limb- ing or pruning. Allowing such contact can re- sult in serious injury.

  • Page 14: Carburetor Adjustment

    A dirty air filter decreases engine perform- ance and increases fuel consumption and harmful emissions. Always clean after 10 tanks of fuel or 5 hours of operation, which- ever comes first. Clean more frequently in dusty conditions. A used aire filter can never be completely cleaned.

  • Page 15: Chain Sharpening

    1- -800- -554- -6723. BAR MAINTENANCE If your saw cuts to one side, has to be forced through the cut, or been run with an improper amount of bar lubrication it may be necessary to service your bar. A worn bar will damage your chain and make cutting difficult.

  • Page 16: Troubleshooting Table

    WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Ignition switch off. start or will run 2. Engine flooded. only a few seconds after 3.
  • Page 17 U.S. EPA / ENVIRONMENT CANADA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGA- TIONS: The U.S. Environmental Protection Agency, Environment Canada and ELEC- TROLUX HOME PRODUCTS, INC., are pleased to explain the emissions control sys- tem warranty on your year 2005 and later small off- -road engine.
  • Page 18 The information on the product label indicates which standard your engine is certified. Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA. This engine is certified to be emissions compliant for the following use: Moderate (50 hours) Intermediate (125 hours) Extended (300 hours)
