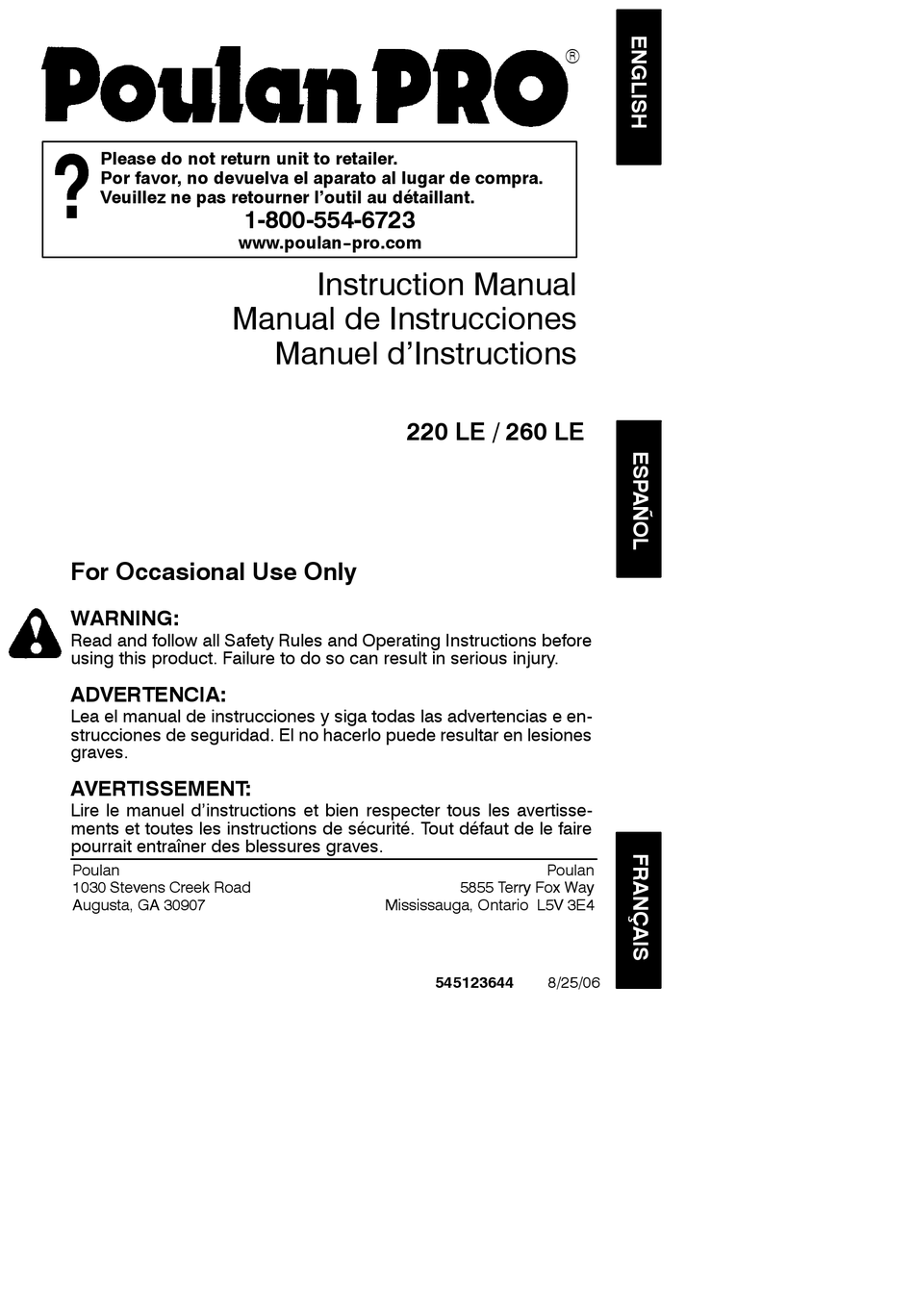

Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e en-
strucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Poulan
1030 Stevens Creek Road
Augusta, GA 30907
1-800-554-6723
Instruction Manual
Manuel d'Instructions
220 LE / 260 LE
Mississauga, Ontario L5V 3E4
R
Poulan
5855 Terry Fox Way
545123644
8/25/06
Advertisement
Table of Contents
Related Manuals for Poulan Pro 545123644
Summary of Contents for Poulan Pro 545123644
-
Page 1: Instruction Manual
Please do not return unit to retailer. Por favor, no devuelva el aparato al lugar de compra. Veuillez ne pas retourner l’outil au détaillant. 1-800-554-6723 www.poulan- -pro.com Manual de Instrucciones Manuel d’Instructions For Occasional Use Only WARNING: Read and follow all Safety Rules and Operating Instructions before using this product. -
Page 2: Plan Ahead
IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when operating the chain saw. WARNING! should be avoided;... -
Page 3: Kickback Warning
S Keep fuel and oil caps, screws, and fas- teners securely tightened. S Use only Poulan PRO accessories and re- placement parts as recommended. HANDLE FUEL WITH CAUTION S Do not smoke while handling fuel or while operating the saw. -
Page 4: Maintain Control
wood closes in and pinches the moving saw chain in the cut along the top of the guide bar and the saw chain is suddenly stopped. This sudden stopping of the chain results in a reversal of the chain force used to cut wood and causes the saw to move in the opposite direction of the chain rotation. - Page 5 WARNING: The following features are included on your saw to help reduce the hazard of kickback; however, such features will not totally eliminate this danger. As a chain saw user, do not rely only on safety de- vices. You must follow all safety precau- tions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.
-
Page 6: Assembly
Length MODEL 220 LE 16″ 530044834 18″ 530044835 260 LE NOTE: If this saw is to be used for commer- cial logging, a chain brake is required and shall not be removed or otherwise disabled to com- ply with Federal OSHA Regulations for Com- mercial Logging. -
Page 7: Chain Tension
Mount the Bar 5. Prepare the chain by checking the proper direction. Without following the illustration it is easy to place the chain on the saw in the wrong direction. Use the illustration of the chain to determine the proper direction. Tip of CUTTERS MUST FACE IN DIIRECTION OF ROTATION... -
Page 8: Operation
OPERATION KNOW YOUR SAW READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Chain Front Hand Guard Adjustment Tool... -
Page 9: Fueling Engine
3.2 ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. Included with this saw is a 3.2 ounce container of Poulan/WEED EATER brand synthetic oil. Pour the entire contents of this container into 1 gallon of gasoline to achieve the proper fuel mixture. - Page 10 (to the FULL CHOKE position). 3. Slowly press primer bulb 6 times. 4. Pull the starter rope sharply 5 times with your right hand. Then, proceed to the next step. NOTE: If the engine sounds as if it is trying to start before the 5th pull, stop pulling and immediately proceed to the next step.
-
Page 11: Tree Felling Techniques
the engine to reach full speed before cutting. S Begin cutting with the saw frame against the log. S Keep the engine at full speed the entire time you are cutting. S Allow the chain to cut for you. Exert only light downward pressure. - Page 12 wedges to open the cut when necessary to control the direction of fall. To avoid kickback and chain damage, use wood or plastic wedges, but never steel or iron wedges. S Be alert to signs that the tree is ready to fall: cracking sounds, widening of the felling cut, or movement in the upper branches.
- Page 13 If any dealer other than an authorized service dealer performs work on the product, Poulan PRO may not pay for repairs under warranty. It is your re- sponsibility to maintain and perform general maintenance.
-
Page 14: Cleaning The Spark Arrest- Ing Screen
MAINTENANCE SCHEDULE Check: Fuel mixture level ..Before each use Bar lubrication ..Before each use Chain tension ..Before each use Chain sharpness ..Before each use For damaged parts . -
Page 15: Carburetor Adjustment
11. Reinstall backplate, outlet guide, muffler gasket, and muffler using muffler bolts. Tighten until secure. 12. Reinstall bolt cover and locknut. Tighten securely. CARBURETOR ADJUSTMENT WARNING: The chain will be mov- ing during most of this procedure. Wear your protective equipment and observe all safety precautions. -
Page 16: Troubleshooting Table
Poulan PRO for this chain saw. Additionally, this warranty does not cover blended fuels (called gasohol or using ethanol... -
Page 17: Warranty Commencement Date
Poulan/WEED EATER at 1- -800- -554- -6723. LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. The policy of Poulan PRO is to continuously improve its products. Therefore, Poulan PRO reserves the right to change, modify, or discontinue models, designs, specifications, and accessories of all products at any time without notice or obligation to any purchaser. - Page 18 LIST: Carburetor, Ignition System: Spark Plug (covered up to maintenance schedule), Ignition Module, Muffler including catalyst. The information on the product label indicates which standard your engine is certified. Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA. This engine is certified to be emissions compliant for the following use: Moderate (50 hours) Intermediate (125 hours) Extended (300 hours)
