Page 1: Instruction Manual

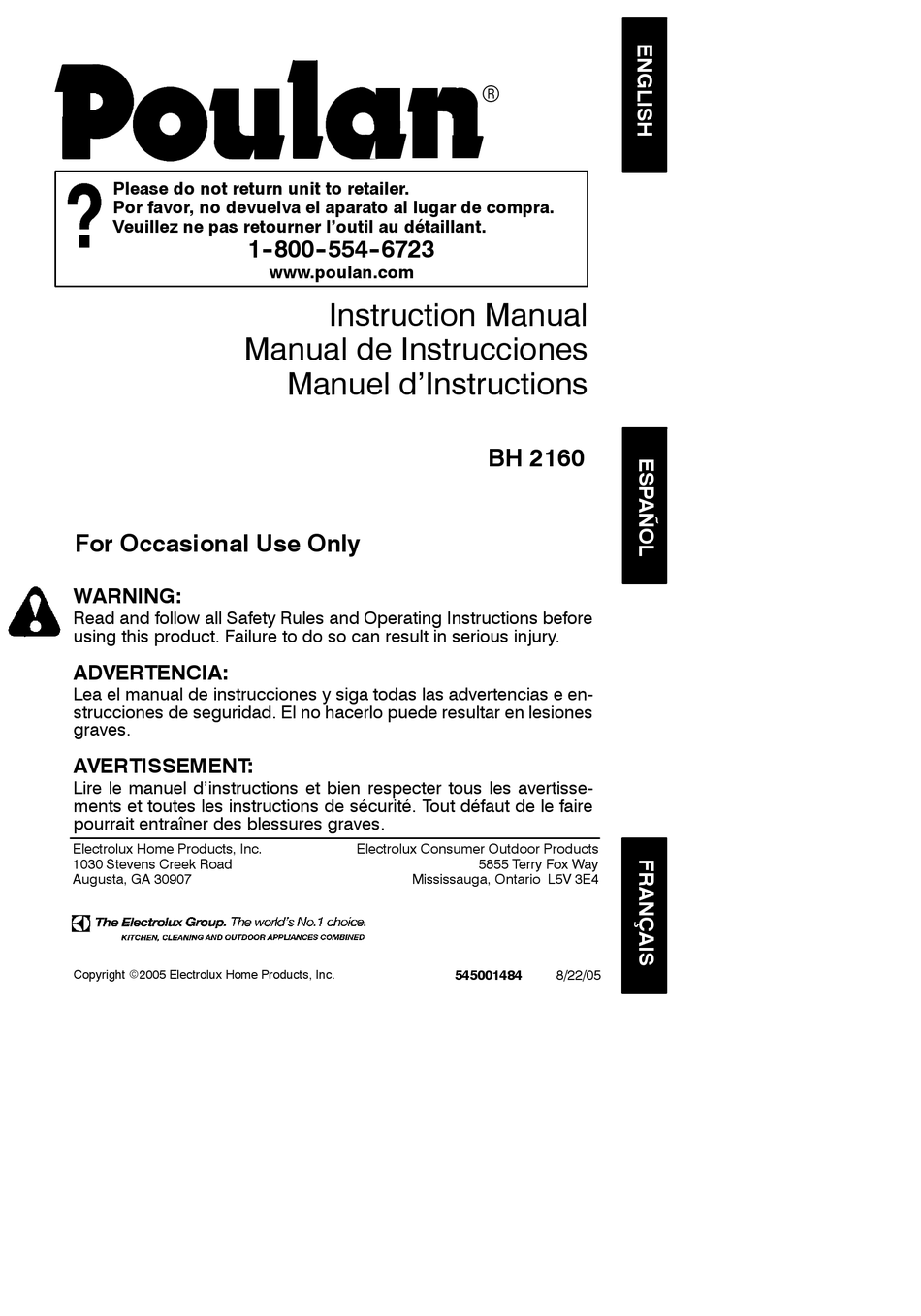

Electrolux Home Products, Inc. 1030 Stevens Creek Road Augusta, GA 30907 Copyright E2005 Electrolux Home Products, Inc. Instruction Manual BH 2160 Electrolux Consumer Outdoor Products 5855 Terry Fox Way Mississauga, Ontario L5V 3E4 545001484 8/22/05... -
Page 2: Identification Of Symbols
IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when operating the chain saw. WARNING! should be avoided;... -
Page 3: Kickback Warning
vance. Do not start cutting until you have a clear work area, secure footing, and, if you are felling trees, a planned retreat path. OPERATE YOUR SAW SAFELY S Do not operate a chain saw with one hand. Serious injury to the operator, helpers, by- standers or any combination of these per- sons may result from one-handed opera- tion. -
Page 4: Maintain Control
Avoid Obstructions Clear The Working Area REDUCE THE CHANCE OF KICKBACK S Recognize that kickback can happen. With a basic understanding of kickback, you can reduce the element of surprise which contributes to accidents. S Never let the moving chain contact any ob- ject at the tip of the guide bar. - Page 5 Symmetrical Guide Bar Large Radius Tip S Low- -Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. Low- - Kickback Chain has met kickback per- formance requirements when tested on a representative sample of chain saws be- low 3.8 cubic inch displacement specified...
-
Page 6: Assembly
mercial logging, a chain brake is required and shall not be removed or otherwise dis- abled to comply with Federal OSHA Regula- tions for Commercial Logging. SAFETY NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swellings. -
Page 7: Chain Tension
Drive Links Place chain onto the sprocket 7. Place chain over and behind clutch, fitting the drive links in the clutch drum sprocket. 8. Fit bottom of drive links between the teeth in the sprocket in the nose of the guide bar. -
Page 8: Operation
OPERATION KNOW YOUR CHAIN SAW READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Front Hand Guard Chain Adjustment Tool... -
Page 9: Fueling Engine
2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 ounces (95 ml) of oil... -
Page 10: Cutting Methods
ing to start before the 5th pull, stop pulling and immediately proceed to the next step. 6. Push the choke knob in completely (to the OFF position); pull the starter rope until the engine starts. CHOKE (SIDE VIEW) Choke knob FULL 7. -
Page 11: Tree Felling Techniques
only light downward pressure. If you force the cut, damage to the bar, chain, or engine can result. Release the throttle trigger as soon as the cut is completed, allowing the en- gine to idle. If you run the saw at full throttle without a cutting load, unnec- essary wear can occur to the chain, bar, and engine. - Page 12 and get away quickly on your planned re- treat path. S DO NOT cut down a partially fallen tree with your saw. Be extremely cautious with partially fallen trees that may be poorly supported. When a tree doesn’t fall com- pletely, set the saw aside and pull down the tree with a cable winch, block and tackle, or tractor.
- Page 13 LIMBING AND PRUNING WARNING: Be alert for and guard against kickback. Do not allow the moving chain to contact any other branches or ob- jects at the nose of the guide bar when limb- ing or pruning. Allowing such contact can re- sult in serious injury.
-
Page 14: Bar Maintenance
be completely cleaned. It is advisable to re- place your air filter with a new one after every 50 hours of operation, or annually, whichever comes first. 1. Loosen 3 screws on cylinder cover. 2. Remove cylinder cover. 3. Remove air filter. 4. -
Page 15: Chain Sharpening
File Rail Edges and Sides Square Worn Groove Correct Groove Replace guide bar when the groove is worn, the guide bar is bent or cracked, or when excess heating or burring of the rails occurs. If replacement is necessary, use only the guide bar specified for your saw in the repair parts list or on the decal located on the chain saw. -
Page 16: Troubleshooting Table
WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Ignition switch off. start or will run 2. Engine flooded. only a few seconds after 3. - Page 17 U.S. EPA / ENVIRONMENT CANADA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OB- LIGATIONS: The U. S. Environmental Protection Agency, Environment Canada and ELECTROLUX HOME PRODUCTS, INC., are pleased to explain the emissions control system warranty on your year 2005 and later small off- -road engine.
- Page 18 The information on the product label indicates which standard your engine is certified. Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA. This engine is certified to be emissions compliant for the following use: Moderate (50 hours) Intermediate (125 hours) Extended (300 hours)
