Manual de Instrucciones
1950 / 2025 / 2050 / 2075 / 2150
2155 / 2175 / 2350 / 2375 / 2150PR
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA :
Lea el manual de instrucciones y siga todas las advertencias e en-
strucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
Copyright E2002 Electrolux Home Products, I
www.poulan.com
Instruction Manual
Manuel d'Instructions
nc.
R
LE Series
530163152
5/8/02
Advertisement
Table of Contents
Related Manuals for Poulan Pro 530163152
Summary of Contents for Poulan Pro 530163152
-

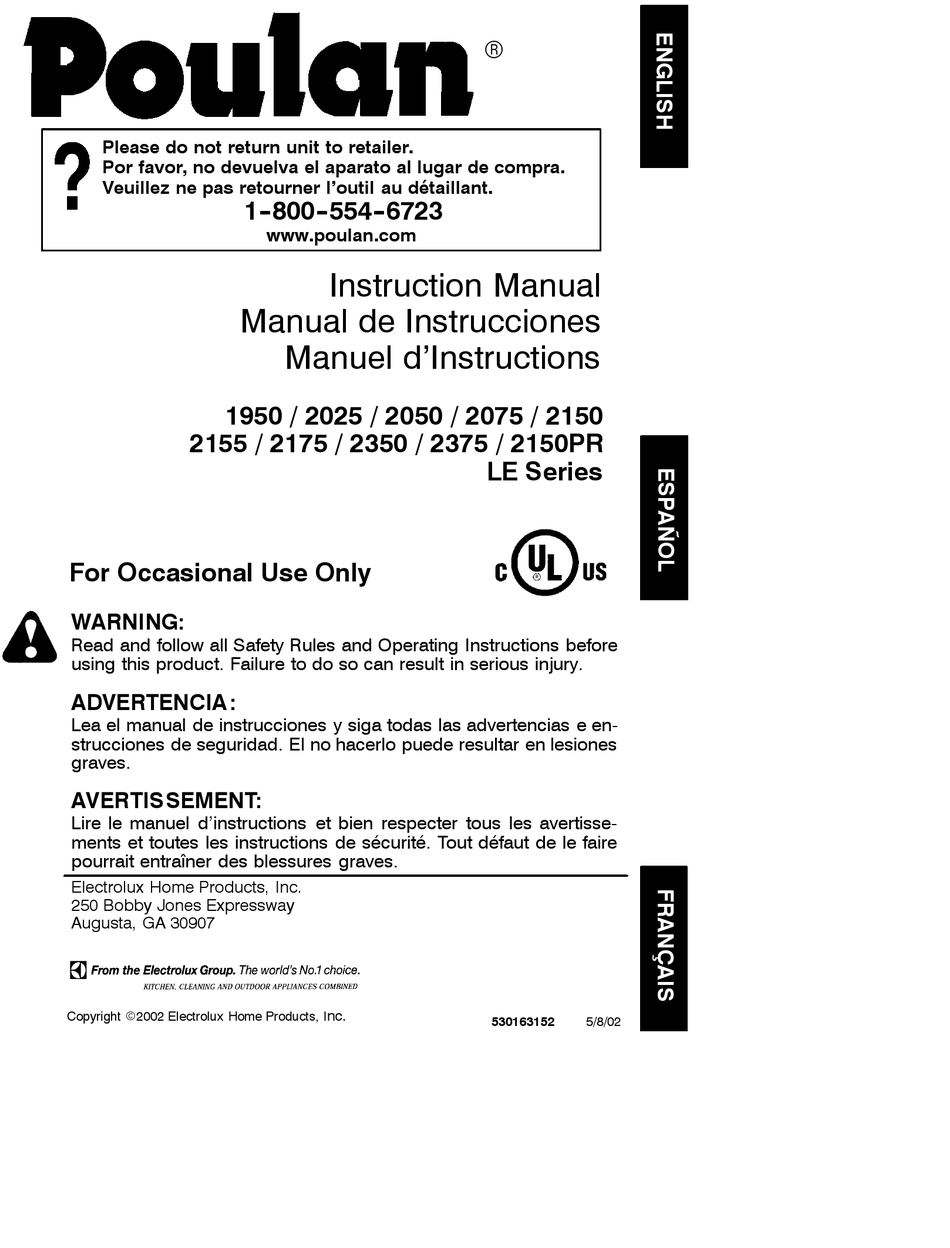

Page 1: Instruction Manual
Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. Electrolux Home Products, Inc. 250 Bobby Jones Expressway Augusta, GA 30907 Copyright E2002 Electrolux Home Products, I LE Series 530163152 5/8/02... -
Page 2: Identification Of Symbols
IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when operating the chain saw. WARNING! should be avoided;... - Page 3 S Carefully plan your sawing operation in ad- vance. Do not start cutting until you have a clear work area, secure footing, and, if you are felling trees, a planned retreat path. OPERATE YOUR SAW SAFELY S Do not operate a chain saw with one hand. Serious injury to the operator, helpers, by- standers or any combination of these per- sons may result from one-handed opera-...
-
Page 4: Maintain Control
Avoid Obstructions Clear The Working Area REDUCE THE CHANCE OF KICKBACK S Recognize that kickback can happen. With a basic understanding of kickback, you can reduce the element of surprise which contributes to accidents. S Never let the moving chain contact any ob- ject at the tip of the guide bar. - Page 5 Reduced Kickback Symmetrical Guide Bar Small Radius Tip Symmetrical Guide Bar Large Radius Tip S Low--Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. Low-- Kickback Chain has met kickback per- formance requirements when tested on a representative sample of chain saws be-...
-
Page 6: Assembly
NOTE: If this saw is to be used for com- mercial logging, a chain brake is required and shall not be removed or otherwise dis- abled to comply with Federal OSHA Regula- tions for Commercial Logging. SAFETY NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of... -
Page 7: Chain Tension
Depth Gauge Cutters Drive Links Place chain onto the sprocket S Place chain over and behind clutch, fitting the drive links in the clutch drum sprocket. S Fit bottom of drive links between the teeth in the sprocket in the nose of the guide bar. S Fit chain drive links into bar groove. -
Page 8: Operation
OPERATION KNOW YOUR CHAIN SAW READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Front Hand Guard Chain Adjustment Tool... -
Page 9: Starting A Cold Engine
Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. A 40:1 ratio is obtained by mixing 3.2 ounces of oil with 1 gallon of unleaded gasoline. -
Page 10: Difficult Starting
S Push the choke knob in completely (to the OFF position); pull the starter rope until the engine starts. CHOKE (SIDE VIEW) Choke knob FULL S Allow the engine to run for approximately 5 seconds. Then, squeeze and release throttle trigger to allow engine to return to idle speed. -
Page 11: Tree Felling Techniques
S Release the throttle trigger as soon as the cut is completed, allowing the en- gine to idle. If you run the saw at full throttle without a cutting load, unneces- sary wear can occur to the chain, bar, and engine. It is recommended that the engine not be operated for lon- ger than 30 seconds at full throttle. - Page 12 S DO NOT cut down a partially fallen tree with your saw. Be extremely cautious with partially fallen trees that may be poorly supported. When a tree doesn’t fall com- pletely, set the saw aside and pull down the tree with a cable winch, block and tackle, or tractor.
- Page 13 Using a support stand LIMBING AND PRUNING WARNING: Be alert for and guard against kickback. Do not allow the moving chain to contact any other branches or objects at the nose of the guide bar when limbing or pruning. Allowing such contact can result in serious injury.
-
Page 14: Cleaning The Spark Arrest- Ing Screen
harmful emissions. Always clean after every 5 hours of operation. S Clean the cover and the area around it to keep dirt and sawdust from falling into the carburetor chamber when the cover is re- moved. S Remove the parts as illustrated below. S Wash the filter in soap and water. -
Page 15: Chain Sharpening
Remove Sawdust From Guide Bar Groove Sprocket Hole Oil Holes S Add lubricant to sprocket hole after each use. S Burring of guide bar rails is a normal process of rail wear. Remove these burrs with a flat file. S When rail top is uneven, use a flat file to re- store square edges and sides. -
Page 16: Troubleshooting Table
LIMITED WARRANTY ELECTROLUX HOME PRODUCTS, INC., warrants to the original purchaser that each new Poulan brand gasoline chain saw is free from defects in material and workman- ship and agrees to repair or replace under this warranty any defective gasoline chain saw as follows from the original date of pur- chase. - Page 17 YOUR WARRANTY RIGHTS AND OB- LIGATIONS: U.S. Environmental Protection Agency, California Air Resources Board, Environment Canada and POULAN/ WEED EATER. DIVISION OF WCI OUT- DOOR PRODUCTS, INC., are pleased to explain the emissions control system war- ranty on your year 2000--2003 small off--road engine.
