WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA :
Lea el manual del operador y siga todas las advertencias e enstruc-
ciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel de l'utilisateur et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products
North America
Div. of WCI Outdoor Products, Inc.
Augusta, GA 30907
Copyright E2001 WCI Outdoor Products, Inc.

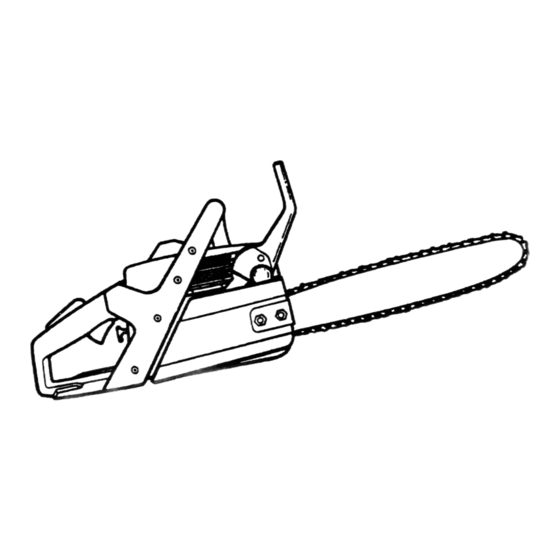

Operator's Manual
Manual del Operador
Manuel de L'utilisateur
Electrolux Home Products
Div. of WCI Outdoor Products, Inc.
Mississauga, Ontario l5T 1K6
R
220 / 260
U L
R
North America
530088740
2/12/01
Advertisement
Table of Contents
Related Manuals for Poulan Pro 530088740
Summary of Contents for Poulan Pro 530088740
- Page 1 Electrolux Home Products North America Div. of WCI Outdoor Products, Inc. Augusta, GA 30907 Copyright E2001 WCI Outdoor Products, Inc. 220 / 260 Electrolux Home Products North America Div. of WCI Outdoor Products, Inc. Mississauga, Ontario l5T 1K6 530088740 2/12/01...
-
Page 2: Identification Of Symbols
IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Careless or improper use can cause serious or even fatal injury. Read and understand the Operator’s Manual before using the chain saw. Always use two hands when operating the chain saw. WARNING! should be avoided;... - Page 3 S Keep the handles dry, clean, and free of oil or fuel mixture. S Keep fuel and oil caps, screws, and fas- teners securely tightened. S Use only Poulan or Poulan Pro accesso- ries and replacement parts as recom- mended. HANDLE FUEL WITH CAUTION S Do not smoke while handling fuel or while operating the saw.
-
Page 4: Maintain Control
Avoid Pinch- -Kickback: S Be extremely aware of situations or ob- structions that can cause material to pinch the top of or otherwise stop the chain. S Do not cut more than one log at a time. S Do not twist the saw as the bar is with- drawn from an undercut when bucking. - Page 5 bar tip. A Reduced--Kickback Guide Bar has been demonstrated to significantly re- duce the number and seriousness of kick- backs when tested in accordance with safety requirements for gasoline powered chain saws as set by ANSI B175.1. Reduced Kickback Symmetrical Guide Bar Small Radius Tip Symmetrical Guide Bar Large Radius Tip...
-
Page 6: Safety Notice
Computed kickback angle (CKA) Table Length MODEL 16” 530044834 18” 530044835 NOTE: This saw complies with Federal OSHA regulations for commercial logging. SAFETY NOTICE: Exposure vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swellings. -
Page 7: Chain Tension
Tip of Bar Proper chain direction Place chain onto the sprocket CHAIN TENSION (Including units with chain already installed) NOTE: When adjusting chain tension, make sure the chain brake nuts are finger tight only. Attempting to tension the chain when the chain brake nuts are tight can cause damage. - Page 8 2-cycle air-cooled engine oil. recommend Poulan or Poulan ProR brand oil. If you do not use this oil, use a good quality 2-cycle air-cooled oil designed to be mixed at a ratio of 40:1 (A 40:1 ratio is obtained by mixing 3.2 onces of oil with 1 gallon of unleaded gasoline).
-
Page 9: Starting A Cold Engine
engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See STORAGE section for addi- tional information. STARTING WARNING: The chain must not move when the engine runs at idle speed. If the chain moves at idle speed refer to CAR- BURETOR ADJUSTMENT... -
Page 10: Cutting Methods
duced--kickback guide bars and low--kick- back saw chains reduce the chance and magnitude of kickback and are recom- mended. Your saw has a low kickback chain and bar as original equipment. If the brake band is worn too thin it may break when the chain brake is triggered. -
Page 11: Felling Large Trees
Look for decay and rot . If the trunk is rotted, it can snap and fall toward the operator. Check for broken or dead branches which can fall on you while cutting. Make sure there is enough room for the tree to fall. -
Page 12: Limbing And Pruning
use a metal wedge. Do not attempt to restart your saw when it is pinched or hung in a log. Use a wedge to remove pinched saw Turn saw and use a plastic or wooden wedge to force cut open. Overcutting begins on the top side of the log with the bottom of the saw against the log. - Page 13 saw when the tension in the wood fibers is released. S Keep a clear work area. Frequently clear branches out of the way to avoid tripping over them. LIMBING S Always limb a tree after it is cut down. Only then can limbing be done safely and prop- erly.
-
Page 14: Carburetor Adjustments
Muffler Diffuser Spark Arresting Screen Muffler Cover Screws Muffler Muffler Body Cover Cleaning is required every 25 hours of op- eration or annually, whichever comes first. S Loosen and remove the 2 muffler cover screws. S Remove the muffler cover (cover snaps off muffler body). -
Page 15: Need Assistance
open flame from hot water heaters, electric motors or switches, furnaces, etc. S Store in a dry area out of the reach of chil- dren. CAUTION: It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel filter, fuel hose, or fuel tank during storage. -
Page 16: Limited Warranty
PRODUCTS NORTH AMERICA, Division of WCI Out- door Products, Inc., warrants to the original purchaser that each new Poulan PRO brand gasoline chain saw is free from defects in material and workmanship and agrees to re- pair or replace under this warranty any de- fective gasoline chain saw as follows from the original date of purchase. - Page 17 REPAIR OR REPLACEMENT OF PARTS. Repair or replacement of any warranted part will be performed at no charge to the owner at an approved Poulan/Weed Eater servic- ing center. If you have any questions regard- ing your warranty rights and responsibilities,...
