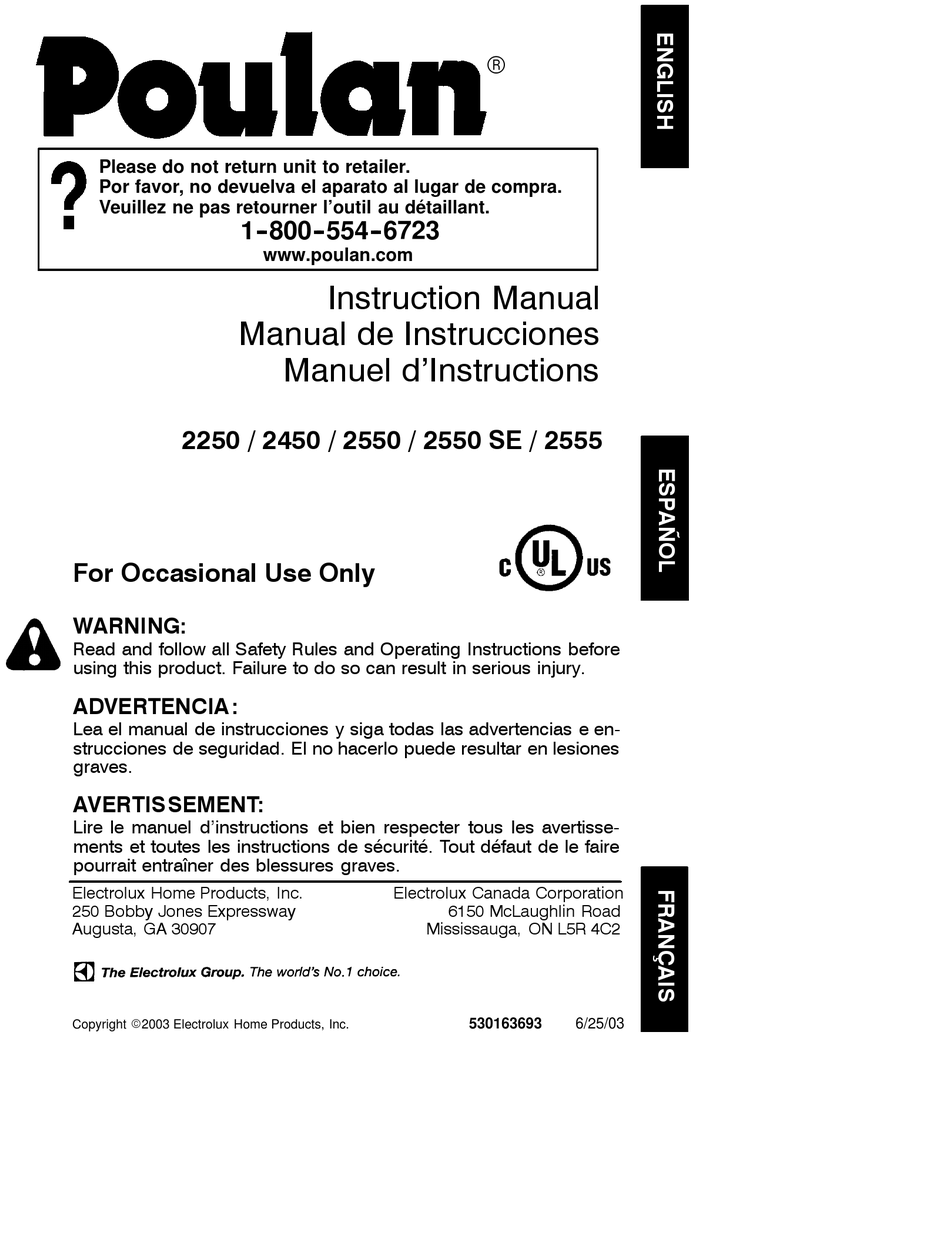

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1- -800- -554- -6723
www.poulan.com
Manual de Instrucciones
2250 / 2450 / 2550 / 2550 SE / 2555
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA :
Lea el manual de instrucciones y siga todas las advertencias e en-
strucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
Copyright E2003 Electrolux Home Products, Inc.
Instruction Manual
Manuel d'Instructions
Electrolux Canada Corporation
6150 McLaughlin Road
Mississauga, ON L5R 4C2
530163693
R
6/25/03
Advertisement
Table of Contents
Related Manuals for Poulan Pro 2003-06
Summary of Contents for Poulan Pro 2003-06
-
Page 1: Instruction Manual
Please do not return unit to retailer. Por favor, no devuelva el aparato al lugar de compra. Veuillez ne pas retourner l’outil au détaillant. 1- -800- -554- -6723 www.poulan.com Instruction Manual Manual de Instrucciones Manuel d’Instructions 2250 / 2450 / 2550 / 2550 SE / 2555... -
Page 2: Identification Of Symbols
IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when oper- ating the chain saw. - Page 3 S Carefully plan your sawing operation in ad- vance. Do not start cutting until you have a clear work area, secure footing, and, if you are felling trees, a planned retreat path. OPERATE YOUR SAW SAFELY S Do not operate a chain saw with one hand. Serious injury to the operator, helpers, by- standers or any combination of these per- sons may result from one-handed opera-...
-
Page 4: Maintain Control
Avoid Obstructions Clear The Working Area REDUCE THE CHANCE OF KICKBACK S Recognize that kickback can happen. With a basic understanding of kickback, you can reduce the element of surprise which contributes to accidents. S Never let the moving chain contact any ob- ject at the tip of the guide bar. - Page 5 Symmetrical Guide Bar Large Radius Tip S Low--Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. Low-- Kickback Chain has met kickback per- formance requirements when tested on a representative sample of chain saws be- low 3.8 cubic inch displacement specified in ANSI B175.1.
-
Page 6: Assembly
NOTE: If this saw is to be used for commer- cial logging, a chain brake is required and shall not be removed or otherwise disabled to com- ply with Federal OSHA Regulations for Com- mercial Logging. SAFETY NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of... -
Page 7: Chain Tension
Mount the Bar 6. Carefully remove the chain from the pack- age. Hold chain with the drive links as shown. Tip of CUTTERS MUST FACE IN DIIRECTION OF ROTATION Depth Gauge Cutters Drive Links Place chain onto the sprocket 7. Place chain over and behind clutch, fitting the drive links in the clutch drum sprocket. -
Page 8: Operation
OPERATION KNOW YOUR SAW READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR CHAIN SAW. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Chain Front Hand Guard Adjustment Tool... -
Page 9: Fueling Engine
2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. -
Page 10: Cutting Methods
ON/STOP Switch Primer Bulb ON/STOP SWITCH STOP CHOKE/FAST IDLE LEVER (SIDE VIEW) Choke/Fast FULL Idle Lever STARTING A WARM ENGINE: 1. Move ON/STOP switch to the ON posi- tion. 2. Pull the choke/fast idle lever out to the full extent, then push the lever back in com- pletely (to the OFF position). -
Page 11: Tree Felling Techniques
S Begin cutting with the saw frame against the log. S Keep the engine at full speed the entire time you are cutting. S Allow the chain to cut for you. Exert only light downward pressure. If you force the cut, damage to the bar, chain, or en- gine can result. - Page 12 S DO NOT cut down a partially fallen tree with your saw. Be extremely cautious with partially fallen trees that may be poorly supported. When a tree doesn’t fall com- pletely, set the saw aside and pull down the tree with a cable winch, block and tackle, or tractor.
- Page 13 Using a support stand LIMBING AND PRUNING WARNING: Be alert for and guard against kickback. Do not allow the moving chain to contact any other branches or ob- jects at the nose of the guide bar when limb- ing or pruning. Allowing such contact can re- sult in serious injury.
-
Page 14: Bar Maintenance
Cleaning the air filter: A dirty air filter decreases engine perform- ance and increases fuel consumption and harmful emissions. Always clean after 15 tanks of fuel or 5 hours of operation, which- ever comes first. Clean more frequently in dusty conditions. A used aire filter can never be completely cleaned. -
Page 15: Need Assistance
Replace guide bar when the groove is worn, the guide bar is bent or cracked, or when exce- ss heating or burring of the rails occurs. If re- placement is necessary, use only the guide bar specified for your saw in the repair parts list or on the decal located on the chain saw. -
Page 16: Limited Warranty
TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE Engine will not 1. Ignition switch off. start or will run 2. Engine flooded. only a few seconds after 3. - Page 17 U.S. EPA / ENVIRONMENT CANADA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OB- LIGATIONS: The U. S. Environmental Protection Agency, Environment Canada and ELECTROLUX HOME PRODUCTS, INC., are pleased to explain the emissions control system warranty on your year 2002--2004 small off--road engine.
- Page 18 The information on the product label indicates which standard your engine is certified. Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA. This engine is certified to be emissions compliant for the following use: Moderate (50 hours) Intermediate (125 hours) Extended (300 hours)
