SuperCELL® Model SC500-H-SM User's Information
Alarm
Button
Power
Menu
Button
Up 1
Message
Button
Up 16
Messages
Button

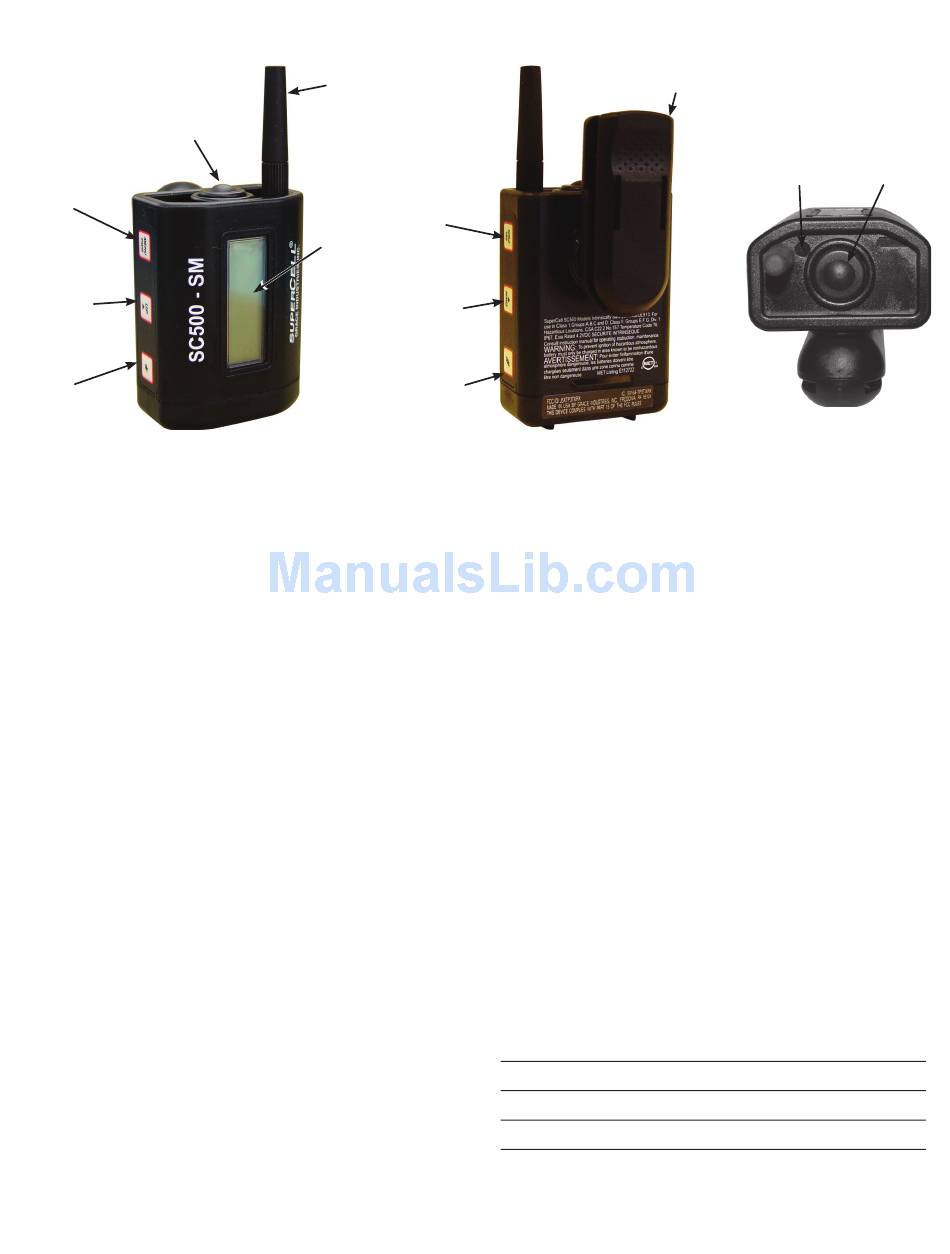

Front View

Introduction

SuperCELL® Model SC500-H-SM is an intrinsically safe,
high performance, RF-wireless, emergency signaling
and monitoring device which provides Man-Down
monitoring and notifi cation for personnel working
alone in hazardous environments.
• Location: Tracking the location of the SuperCELL® is
possible when used in conjunction with the Grace
Locator Beacon and Grace-Watch® safety monitoring
system.
• Alarm Monitoring: Alerts the Supervisor that a
GRACE Man-Down telemetry device, within signaling
range, is transmitting an alarm message.
• Panic ALARM: Manually activated Emergency Alarm.
• Man Down Alarm: An optional safety monitoring
feature which provides the Supervisor with motion
sensing protection.
• Canned Text Messaging: Allows the Supervisor to
send and receive pre-set Canned Text Messages to
other
SuperCELL®
monitoring systems.
Grace Industries, Inc.
Antenna
LCD
Display

Features

devices
and
Grace-Watch®
Power
Select
Button
Down 1
Message
Button
Down 16
Messages
Button
Back View
• Model: SC500-H-SM, Supervisor Model.
• Dimensions: 2-3/16" wide, 1-3/8" deep (without clip),
5" high (with antenna).
• Weight: 5.6 oz.
• Internal Battery: 3.7 V nominal, 1960 mAh,
intrinsically safe, lithium-ion rechargeable.
• Device Run Time: Approximately 40 hrs. in Sensing
Mode, and 10 hrs. in Alarm Mode.
• Radio Frequency: 902 - 928MHz, ISM license free,
spread spectrum.
• Battery Charger Operational Voltage:
120VAC or 12VDC.
• Battery Charge Time: 6 - 8 hrs.
• Certifi cations:
• Intrinsically Safe UL913, CSA C22.2 No. 157
• IP67
• FCC ID: J5XT3HEP
• IC: 5916A-T3HEP
Menu Screens
Defi nition of Terms
1
Swi
Swivel Clip
Operation
Status LED
Specifi cations
Table of Contents
Alarm
Button
Top View
2
3
8
8
SC500-H-SM UI 2017-04
