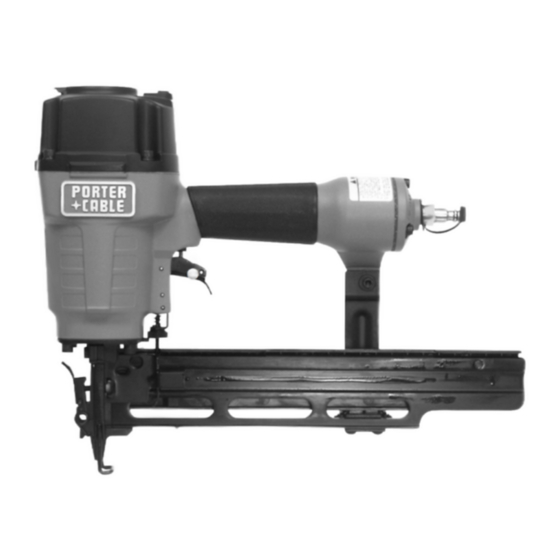

MEDIUM CROWN
STAPLER
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
MODEL MS200
IMPORTANT
Part No. 908991 - 12-12-02
Advertisement
Table of Contents
Related Manuals for Porter-Cable MS200
Summary of Contents for Porter-Cable MS200
- Page 1 908991 - 12-12-02.qxd 12/12/02 Instruction manual To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2002 Porter-Cable Corporation 11:17 AM Page 1 ESPAÑOL: PÁGINA 13 FRANÇAISE : PAGE 25 MEDIUM CROWN STAPLER MODEL MS200 IMPORTANT Please make certain that the person who is...
- Page 2 EN792 13: 2000 Matthew G. Popik Vice President of Engineering Date of Manufacture:___________________________ Fecha de fabricación:, Date de fabrication: Serial No:______________________________________ Número de serie:, Nombre d'ordre 11:17 AM Page 2 PORTER CABLE Porter-Cable Corporation 4825 Highway 45 North Jackson, TN 38305...
-
Page 3: Safety Guidelines - Definitions
READ AND FOLLOW ALL INSTRUCTIONS. There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written Porter- Cable and we have advised you. -
Page 4: General Safety Rules
908991 - 12-12-02.qxd 12/12/02 GENERAL SAFETY RULES 1. Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Fig. 1. 2. Operator and others in work area MUST wear safety glasses with side shields. These safety glasses must conform to ANSI Z87.1 requirements (approved glasses have “Z87”... - Page 5 Fig. 8. 15. Do not use tool without safety warning label. If label is missing, damaged or unreadable, contact your Porter-Cable Service Center for a replacement. Fig. 9. 16. Only use parts, fasteners and accessories approved by Porter-Cable.
-
Page 6: Technical Specifications
908991 - 12-12-02.qxd 12/12/02 21. Remove finger from trigger when not driving fasteners. Never carry tool with finger on trigger. In “Contact Actuation Mode” tool will fire a fastener if safety is bumped while trigger is depressed. Fig. 14. 22. Do not overreach. Keep proper footing and balance at all times when using or handling the tool. -
Page 7: Employer's Responsibilities
If an in-line oiler is not available: place five or six drops of Porter-Cable Air Tool Oil into the tool’s air inlet at the beginning of each workday. - Page 8 908991 - 12-12-02.qxd 12/12/02 Only use approved Porter-Cable fasteners. Operator and others in work area MUST wear safety glasses with side shields. Always wear ANSI Z87.1 approved safety glasses, and ANSI S3.19 approved hearing protection when preparing or operating the tool.
- Page 9 908991 - 12-12-02.qxd 12/12/02 OPERATING INSTRUCTIONS USING THE TOOL WITH SELECTABLE TRIGGERING OPTIONS Complete all steps of PREPARING THE TOOL before using the tool. This tool is shipped from the factory with a selectable trigger set in the “SINGLE SEQUENTIAL ACTUATION” firing mode as described in number 1 below.
- Page 10 908991 - 12-12-02.qxd 12/12/02 Keep fingers AWAY from trigger when not driving fasteners to avoid accidental firing. Never carry tool with finger on trigger. In “Contact Actuation Mode” tool will fire a fastener if safety is bumped while trigger is depressed. Never point tool at yourself or others.
-
Page 11: Maintenance
Keep all screws tight. Loose screws can cause personal injury or damage tool. If tool is used without an in-line oiler: place 5 or 6 drops of Porter-Cable Air Tool Oil into the air inlet of the tool at the beginning of each workday. - Page 12 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its nailing and stapling tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
- Page 13 Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable •...
