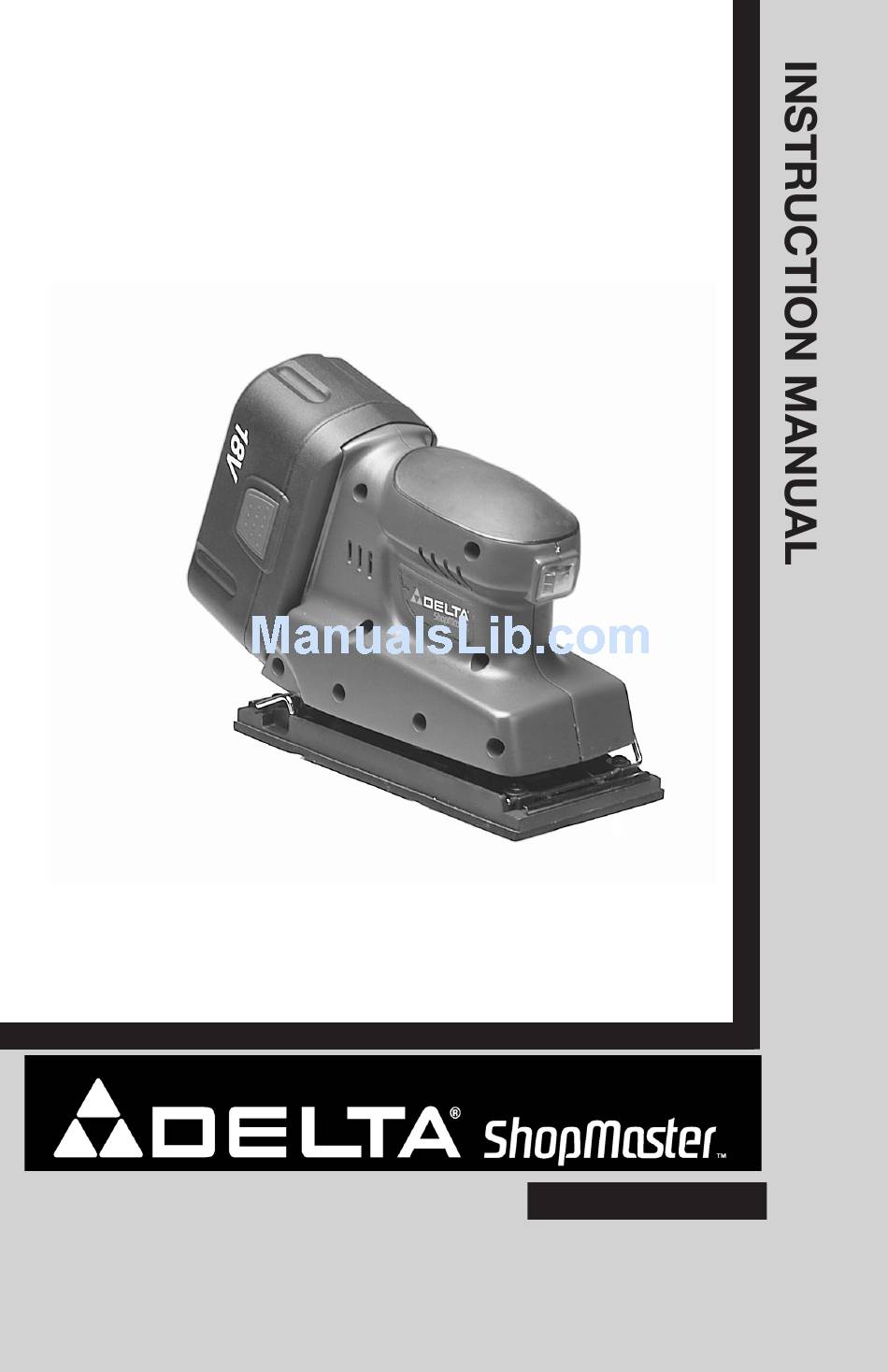

Cordless Pad Sander
(Model CL180PS)
PART NO. 912238 - 08-05-03
Copyright © 2003 Delta Machinery
To learn more about DELTA MACHINERY
ESPAÑOL: PÁGINA 15
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
1-800-223-7278 (
1-800-463-3582).
please call
In Canada call
Advertisement
Table of Contents
Related Manuals for Porter-Cable CL180PS
Summary of Contents for Porter-Cable CL180PS
- Page 1 Cordless Pad Sander (Model CL180PS) PART NO. 912238 - 08-05-03 Copyright © 2003 Delta Machinery To learn more about DELTA MACHINERY ESPAÑOL: PÁGINA 15 visit our website at: www.deltamachinery.com. For Parts, Service, Warranty or other Assistance, 1-800-223-7278 ( 1-800-463-3582). please call...
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and under- stand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections. indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 3: Tool Use And Care
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Avoid accidental starting. Be sure switch is in the locked or off posi- tion before inserting battery pack. -
Page 4: Additional Specific Safety Rules
ADDITIONAL SPECIFIC SAFETY RULES ALWAYS disconnect the sander from the power source before changing abrasive sheets. USE PROPER SAFETY EQUIPMENT. Wear safety goggles to protect your eyes and wear a protective mask to minimize breathing in the fine dust created while sanding. NOTE: Some wood contains preservatives which can be toxic. -
Page 5: Additional Safety Rules For Paint Removal
... splash-proof construction ... watertight construction …/min ... revolutions or reciprocation per minute ADDITIONAL SAFETY RULES FOR PAINT REMOVAL Extreme care should be taken when removing paint. The peelings, residue, and vapors of paint may contain lead, which is poisonous. Exposure to even low levels of lead can cause irreversible brain and nervous system dam- age;... -
Page 6: Safety Instructions For Charger And Batteries
SAFETY INSTRUCTIONS FOR CHARGER SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions for Delta Battery Charger. Before using a battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery pack, and (3) product using bat- tery. -
Page 7: Replacement Parts
When servicing use only identical replacement parts. FUNCTIONAL DESCRIPTION FOREWORD Delta Model CL180PS is a cordless finishing sander. This sander is designed for its portability and all-purpose sanding. NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CUR- RENT PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE... -
Page 8: Normal Charging
NORMAL CHARGING Make sure power circuit voltage is the same as that shown on the charger specification plate. Connect charger to power source. The orange light (A) Fig. 2, should light up. This indicates the charger is ready to begin charging. Position battery pack on charger, align rails (D) Fig. - Page 9 Before starting to work, make sure you have the right abrasive for the mater- ial on which the sander is to be used. Make sure you use the correct size abra- sive paper or cloth. Cut, do not tear, the abrasive sheets to size. The Model CL180PS uses 1/3 sheet size sanding paper.
-
Page 10: Sander Operation
Also, additional pressure might cause the sander to “jump”. Always start the machine before placing it on the work surface. Once it has started, ease it down on the work surface evenly and move it slowly back and forth in wide, overlapping arcs. - Page 11 SAFETY RULES FOR PAINT REMOVAL section of this manual. Your sander will do a good job of removing old paint and varnish if two pre- cautions are taken. First, be sure to use a coarse, open coat abrasive to avoid the usual clogging of the abrasive surfaces.
-
Page 12: Maintenance
In any communications, please give all information shown on the name- plate of your tool (model number, type, serial number, etc.). A complete line of accessories is available from your Porter-Cable• Delta Supplier, Porter-Cable•Delta Factory Service Centers, and Delta Authorized Service Stations. - Page 13 NOTES...
- Page 14 Two Year Limited New Product Warranty Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection.
- Page 15 Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the near- est Porter-Cable •...
