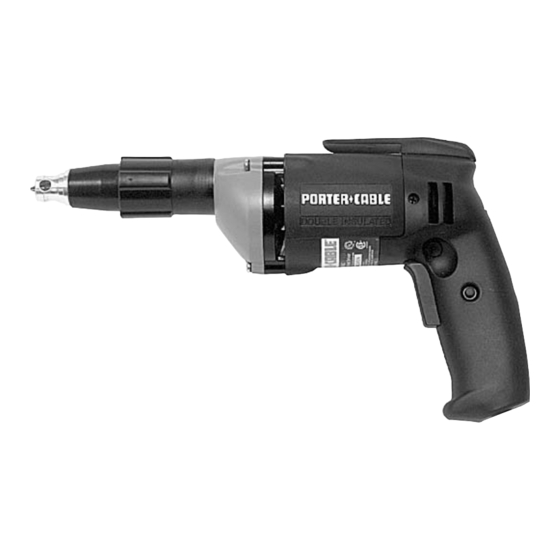

Double Insulated
Portable Electric
Screwdrivers
Drywall Drivers
Depth Sensing
MODEL 6640 0/4000 RPM
MODEL 6645 0/2500 RPM
Fastener Drivers
Depth Sensing
MODEL 6641 0/2500 RPM
MODEL 6642 0/2000 RPM
Please make certain that the person who
is to use this equipment carefully reads
and understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
ESPAÑOL: PÁGINA 13
FRANÇAISE : PAGE 25
IMPORTANT
Part No. 902387 - 10-31-01
Advertisement
Table of Contents
Related Manuals for Porter-Cable 6640
Summary of Contents for Porter-Cable 6640
- Page 1 2/12/02 Instruction manual Fastener Drivers Depth Sensing MODEL 6641 0/2500 RPM MODEL 6642 0/2000 RPM To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2001 PORTER-CABLE Corporation 3:29 PM Page 1 ESPAÑOL: PÁGINA 13 FRANÇAISE : PAGE 25...
-
Page 2: General Safety Rules
902387 - 10-31-01.qxd 2/12/02 WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: · lead from lead-based paints, ·... - Page 3 902387 - 10-31-01.qxd 2/12/02 Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Avoid accidental starting. Be sure switch is OFF before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch ON invites accidents.
-
Page 4: Replacement Parts
WARNING: There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written Porter-Cable and we have advised you. -
Page 5: Extension Cord Selection
2/12/02 MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C. - Page 6 TO UNLOCK lock button, squeeze trigger and release, leaving lock button free to spring out. DIRECTION OF ROTATION – PORTER-CABLE screwdrivers will rotate either in a clockwise direction for driving fasteners with a right hand thread, or a counter clockwise direction for removing fasteners with a right hand thread.
- Page 7 902387 - 10-31-01.qxd 2/12/02 Release adjusting collar being sure that the depressions in the collar engage the projections on the clutch housing. Drive a test fastener in a piece of scrap material identical to that to be used. Examine results of drive and make additional depth stop adjustment if required as follows: To increase depth of drive, repeat STEP 1 and turn adjusting collar so that end of nutsetter extends beyond end of depth stop.
- Page 8 Push new bit holder into spindle until it snaps into place. Install aluminum nose piece and adjust depth stop (see TO ADJUST DEPTH STOP, MODELS 6640, 6645). TO ADJUST DEPTH STOP – Pull the adjusting collar (D), Fig. 4, forward, (away from power unit), and hold while performing Step 2.
-
Page 9: Maintenance
902387 - 10-31-01.qxd 2/12/02 CAUTION: DO NOT EXERT PRESSURE ON SCREW WHILE DOING THIS. Place end of screw in desired location and remove fingers. Apply forward pressure to drive screw until depth stop rests on the surface of the work. The depth stop should be adjusted so the fastener head seats firmly on the work. -
Page 10: Service And Repairs
PORTER-CABLE gear lubricant on the clutch elements and surrounding areas. Reassemble the screwdriver mechanism onto the power unit. - Page 11 902387 - 10-31-01.qxd 2/12/02 A complete line of accessories is available from your Porter-Cable • Delta Supplier, Porter-Cable • Delta Factory Service Centers, and Porter- Cable Authorized Service Stations. Please visit our Web Site www.porter-cable.com supplier. WARNING: Since accessories other than those offered by •...
- Page 12 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
- Page 13 Porter-Cable • Delta products should be obtained by contacting any Porter-Cable • Delta Distributor, Authorized Service Center, or Porter-Cable • Delta Factory Service Center. If you do not have access to any of these, call 888-848-5175 and you will be directed to the nearest Porter-Cable •...
