NOTE: This unit must be added to the Network only where it will be permanently installed. The proper operation of this node in the
mesh network is dependent on it knowing its location with respect to other nodes. You cannot "test bench" confi gure this unit, then install.
GOCONTROL MINI 4IN1
™ ®
The GoControl family of Z-Wave certifi ed wireless Lighting Products (smart
LED fi xtures, bulbs, switches, dimmers, outlets and plug-in modules) Control
Products (thermostats, irrigation controller and garage door controller) and
Sensors (fl ood, leak, alert sounder, motion sensor and door/window sensor)
bring a new level of intelligent wireless Home Automation capability to
commercial and residential environments.
The Z-Wave wireless protocol is an international wireless standard for remote
home automation, security and other applications. This product can be included
and operated in any Z-Wave network with other Z-Wave certifi ed devices
from other manufacturers and/or other applications. All non-battery operated
nodes within the network will act as repeaters regardless of vendor to increase
reliability of the network.
The M4IN1Z-1 Smart Multifunction Sensor is simple to set up and combines 4
popular functions in a small battery powered footprint: 360° PIR, Temperature,
Humidity and Light Sensors.
GoControl Z-Wave products are easy to install, are Z-Wave Plus certifi ed, and
allow dealers to create an integrated wireless network with nearly limitless
expansion and interoperability with security, energy management, home
entertainment, appliances, and more
LIGHT SENSOR
PROGRAM SWITCH

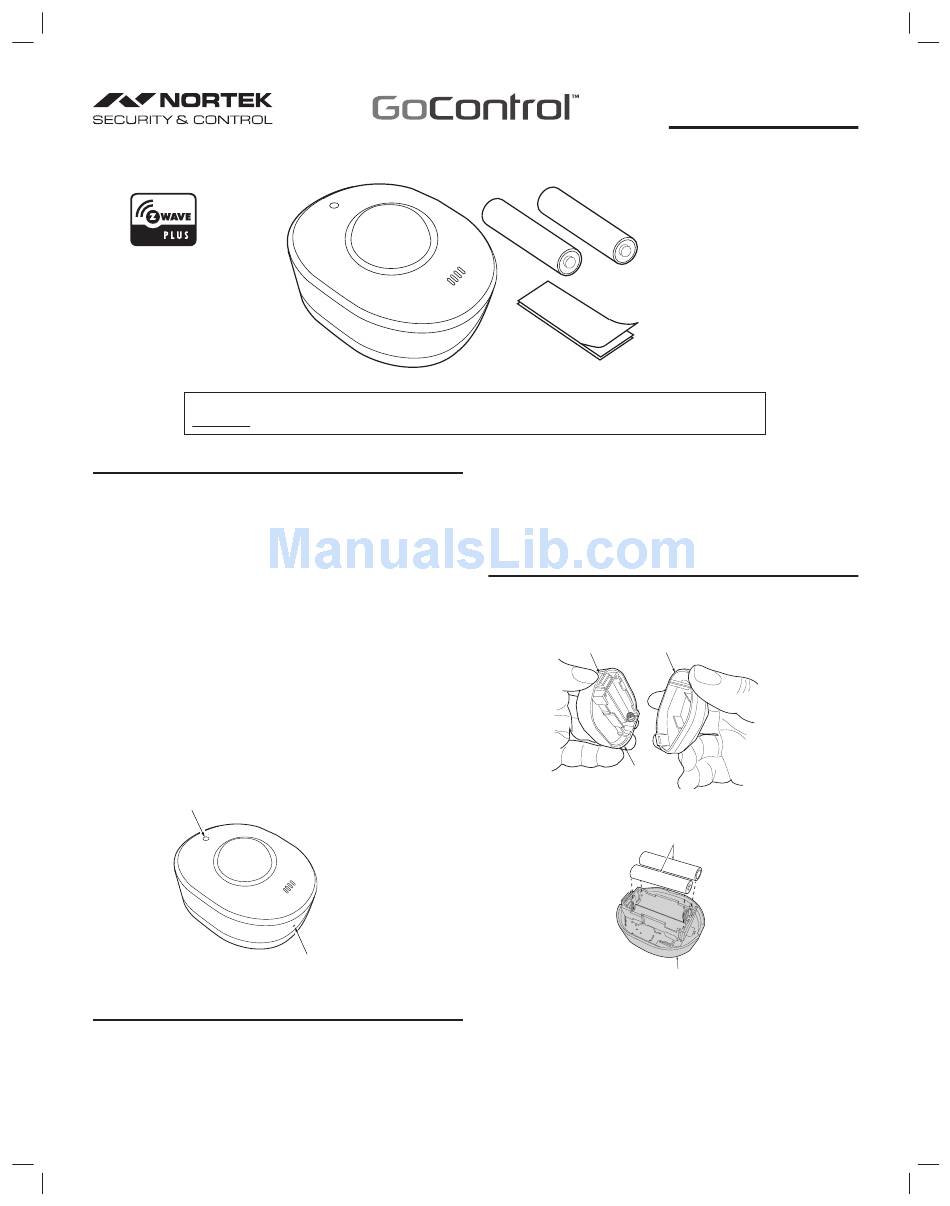

Figure 1. M4IN1Z-1 Mini 4in1 Sensor Components
Z-WAVE PLUS FEATURES
The M4IN1Z-1 contains a Z-Wave 500 Series Module that supports Z-Wave
Plus ® features. A Z-Wave certifi ed portable or stationary Controller can
communicate with the Z-Wave 500 Series Module. Depending on the capability
of the Controller or gateway software, the following operations can be performed
by Mini 4in1. Refer to the Controller or gateway manual for details.
PRINTER'S INSTRUCTIONS:
360° PIR, Temp, Humidity and Light Sensor
• Send an alert if motion is sensed.
• Provide the absolute temperature.
• Provide the humidity level.
• Send an alert when light is present.
• Add or Remove Mini 4in1.
• Over-the-air firmware update by the gateway or static Controller.
INSTALLATION
The M4IN1Z-1 can be mounted on a wall or ceiling using the double stick tape
(included). It can also be placed on a table top.
1. Remove the rear cover by pushing button on sensor top.
PUSH BUTTON
Figure 2. Removing Rear Cover of Mini 4in1 Sensor
2. Insert 2 AAA batteries (included). The LED will briefl y illuminate in RED,
Figure 3. Install Batteries into Sensor Top
BLUE, then GREEN.
3. Replace the rear cover onto the sensor top.
4. Install in permanent location using provided double stick tape. The
M4IN1Z-1 should be mounted (6) six feet from the fl oor.
5. Press the program switch. The Walk Test LED will fl ash 5 times if the sensor
has not been "included" in a Z-Wave network. If the LED fl ashes once, the
sensor has been already been "included".
1
M4IN1Z-1
Wireless Multi-Function Sensor
REMOVE REAR COVER
SENSOR TOP
AAA BATTERIES
SENSOR TOP
