Porter-Cable 7406 Instruction Manual
  1. Manuals
  2. Brands
  3. Porter-Cable Manuals
  4. Grinder
  5. 7406
  6. Instruction manual

Porter-Cable 7406 Instruction Manual

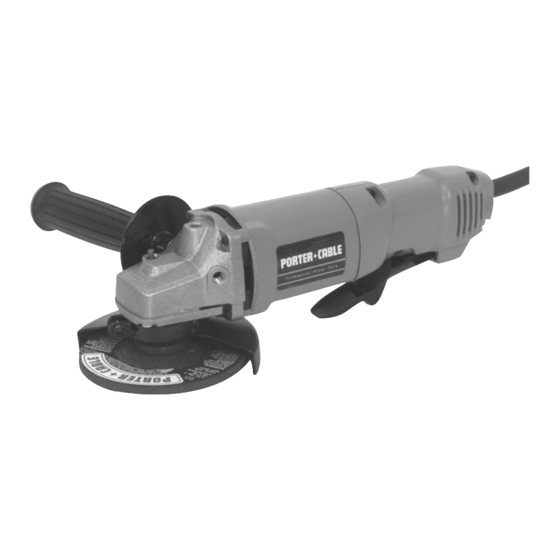

Double insulated disc grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

902388 - 02-21-02.qxd
2/28/02
Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2002 PORTER-CABLE Corporation
8:31 AM
Page 1
ESPAÑOL: PÁGINA 13
FRANÇAISE : PAGE 27
Double Insulated
Disc Grinder
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
Model No. ______________________________________
Type ___________________________________________
Serial No. _______________________________________
MODEL
7406
Part No. 902388 - 02-21-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7406 and is the answer not in the manual?

Questions and answers

Related Manuals for Porter-Cable 7406

Summary of Contents for Porter-Cable 7406

  • Page 1 902388 - 02-21-02.qxd 2/28/02 8:31 AM Instruction manual To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2002 PORTER-CABLE Corporation Page 1 ESPAÑOL: PÁGINA 13 FRANÇAISE : PAGE 27 Double Insulated Disc Grinder MODEL 7406 IMPORTANT Please make certain that the person who is...

  • Page 2: General Safety Rules

    902388 - 02-21-02.qxd 2/28/02 8:31 AM WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, •...
  • Page 3 902388 - 02-21-02.qxd 2/28/02 8:31 AM Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Avoid accidental starting.

  • Page 4: Specific Safety Rules And Symbols

    WARNING: There are certain applications for which this tool was designed. Porter-Cable strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written Porter-Cable and we have advised you.

  • Page 5: Additional Safety Rules For Paint Removal

    902388 - 02-21-02.qxd 2/28/02 8:31 AM ... no load ... alternating or direct current ... Class II Construction ... splash-proof construction ... watertight construction …/min ... revolutions or reciprocation per minute ADDITIONAL SAFETY RULES FOR PAINT REMOVAL WARNING: Extreme care should be taken when removing paint. The peelings, residue, and vapors of paint may contain lead, which is poisonous.

  • Page 6: Extension Cord Selection

    Wash hair and body thoroughly with soap and water. MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C.

  • Page 7: Functional Description

    8:31 AM FUNCTIONAL DESCRIPTION FOREWORD Porter-Cable disc grinders are designed for numerous grinding operations. Typical applications are auto body grinding, smoothing welding beads, removing gates and flash from castings, removing rust and the like! TO START AND STOP THE MACHINE CAUTION: Make sure switch is OFF and power circuit voltage is the same as that shown on the specification plate.
  • Page 8 Position the appropriate guard to the machine so that the three bosses (inside the guard mounting clamp) are aligned with the three notches in the mounting flange of the grinder (see Fig. 3). Seat guard onto mounting flange. Rotate the guard to a position that will place the guard between the operator and the grinding wheel (or other accessory requiring a guard).
  • Page 9 902388 - 02-21-02.qxd 2/28/02 8:31 AM NOTE: For TYPE 1 Blades ONLY: reverse the inner flange and assemble it to the spindle with the round hub facing inward, toward the machine (see Fig. 6). CAUTION: Use Type 1 Blade Guard when using Type 1 Blades. Position grinding wheel to spindle.

  • Page 10: Operation

    Use light pressure. Always lift the grinder off work before starting or stopping motor. The arrow on the front gear housing indicates the direction in which the grinding wheel rotates.

  • Page 11: Service And Repairs

    (model number, type, serial number, etc.). ACCESSORIES A complete line of accessories is available from your Porter-Cable • Delta Supplier, Porter-Cable • Delta Factory Service Centers, and Porter-Cable Authorized Service Stations. Please visit our Web Site www.porter- cable.com for a catalog or for the name of your nearest supplier.
  • Page 12 PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
  • Page 13 Pour obtenir des pièces et accessoires pour les produits Porter-Cable • Delta, s’adresser à tout distributeur Porter- Cable • Delta, centre de service agréé ou centre de service d’usine Porter-Cable • Delta. Si vous n’avez accès à aucun de ces centres, appeler le 888-848-5175 et on vous dirigera vers le centre de service d’usine Porter-Cable •...

Table of Contents
