Instruction manual
Instrucciones
Manuel d'instructions
To learn more about Porter-Cable visit
our website at:
http://www.porter-cable.com
Para obtener más información sobre
Porter-Cable, visite nuestro sitio web en:
http://www.porter-cable.com
Pour de plus amples renseignements
concernant Porter-Cable, consultez
notre site Web à l'adresse suivante:
http://www.porter-cable.com
Copyright © 2002 Porter-Cable Corporation
Manual de
ESPAÑOL: PÁGINA 9
FRANÇAIS: PAGE 17

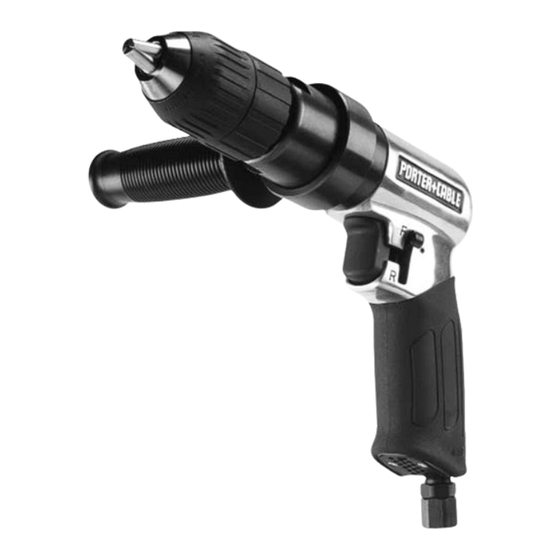

1/2" Reversible Drill
Taladro Reversible
de 1/2"
Perceuse réversible de
1/2 po
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
IMPORTANTE
Asegúrese de que la persona que va a usar esta
herramienta lea cuidadosamente y comprenda
estas instrucciones antes de empezar a
operarla.
IMPORTANT
Veuillez vous assurer que la personne qui
utilise cet outil lit attentivement et comprend
ces instructions avant de commencer à utiliser
l'outil.
MODEL PTD501
MODELO PTD501
MODÈLE PTD501
Part No. D22722-028-3
Advertisement
Table of Contents
Related Manuals for Porter-Cable D22722-028-3
Summary of Contents for Porter-Cable D22722-028-3
- Page 1 Instruction manual Manual de Instrucciones Manuel d'instructions To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Para obtener más información sobre Porter-Cable, visite nuestro sitio web en: http://www.porter-cable.com Pour de plus amples renseignements concernant Porter-Cable, consultez notre site Web à l'adresse suivante: http://www.porter-cable.com...
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information re- lates to protecting YOUR SAFE- TY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this informa- tion, we use the symbols below. Please read the manual and pay attention to these sections. - Page 3 HAZARD RISK OF LOSS OF HEARING WHAT COULD HAPPEN • Long term exposure to noise produced from the opera- tion of air tools can lead to permanent hearing loss. HAZARD RISK TO BREATHING INHALATION HAZARD WHAT COULD HAPPEN • Abrasive tools, such as grinders, sanders, and cut-off tools generate dust and abrasive materials which can be harmful to human lungs and respiratory system.
- Page 4 HAZARD RISK OF CUT OR BURNS WHAT COULD HAPPEN • Tools which cut, shear, drill, staple, punch, chisel, etc. are capable of causing serious injury. D22722 HOW TO PREVENT IT • Maintain the tool with care.
-
Page 5: Specifications
Lubricate tool, see “Maintenance” section in this manual. Open the keyless chuck (A), no tools are required. Insert and center drill bit in the jaws (B) as you close chuck. NOTE: An off centered drill bit will wobble and could break. -
Page 6: Maintenance
Locate the position of the hole to be drilled. Mark that position with a center punch. This provides a good seat for the drill bit point and keeps the drill from moving from the mark. Never apply a spinning drill bit to the work. -
Page 7: Repair Parts
Part No. Description Rotor Blade Motor Gasket Trigger Spring O-Ring O-Ring Valve Bearing Bushing Valve Shaft O-Ring Spring Pin Hand Grip Handle Handle Ring + Only available in Trigger Repair Kit D25318 u Only available in Tune Up Kit D26762 s Only availabe in Service Kit D25328 NOTE: Parts not listed are not serviceable. -
Page 8: Limited Warranty
• Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Porter-Cable Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
