VT592 User Manual

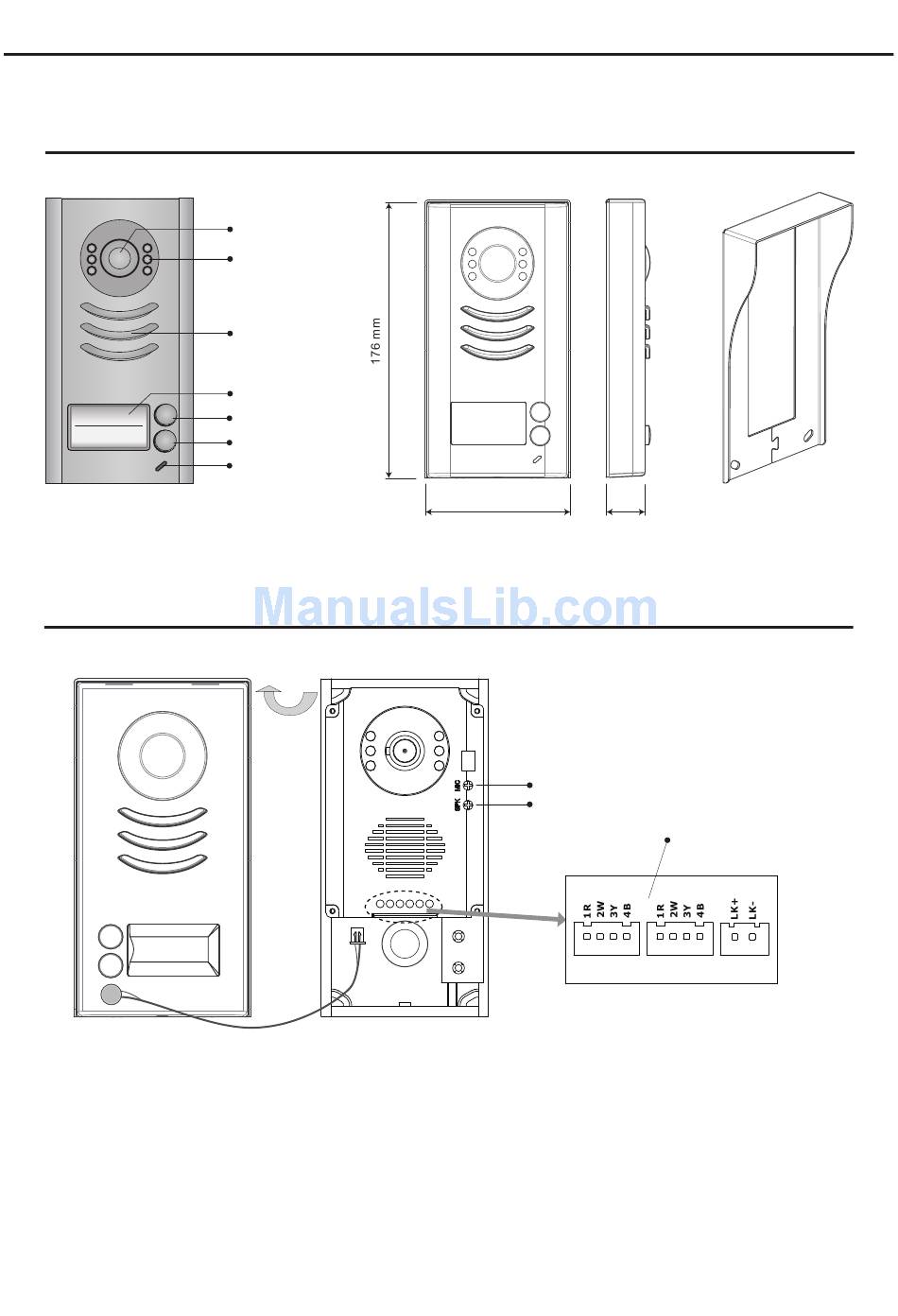

1. Parts and Functions
2. Terminal Descriptions
•
1R
(Red): Power positive. +12V present when Door Station calling or being monitored.
•
2W
(White): Power negative (Ground).
•
3Y
(Yellow): Image signal (Video signal).
•
4B
(Black): Talk and control signal (Audio signal).
•
LK+,LK
-:Normally opened connection port.
Camera Lens
Night View LED
Speaker
Nameplate
A Call Button
B Call Button
Microphone
VT-ENG-592-V1 1005S24
90 mm
23 mm
MIC adjustment
SPK adjustment
Monitor B
-1-
Rainy Cover
Connection Port
Monitor A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for M-E VT592
Summary of Contents for M-E VT592
-
Page 1: Parts And Functions
VT592 User Manual VT-ENG-592-V1 1005S24 1. Parts and Functions Camera Lens Night View LED Speaker Nameplate A Call Button B Call Button Microphone Rainy Cover 90 mm 23 mm 2. Terminal Descriptions MIC adjustment SPK adjustment Connection Port Monitor B Monitor A •... - Page 2 3. Mounting 3.1 Mounting Without Rainy Cover 160-165cm 3.2 Mounting With Rainy Cover 160-165cm...
-
Page 3: Adjusting Camera Angle
,then fix the screw. 4. System Wiring and Connections 4.1 Basic Connection VT592 Door Camera To Monitor A Back View JS_OS1 Control Monitor A Control Monitor B... -
Page 4: Electric Lock Connection
4.2 Electric Lock Connection • Mode1:Door Lock Controlled With Dry Contact Must install external power supply POWER for lock,and nearly all kinds of SUPPLY e l e c t r o n i c l o c k c a n b e u s e d . Incidentally,in this mode,you can continue talking and monitoring during unlock operation.
