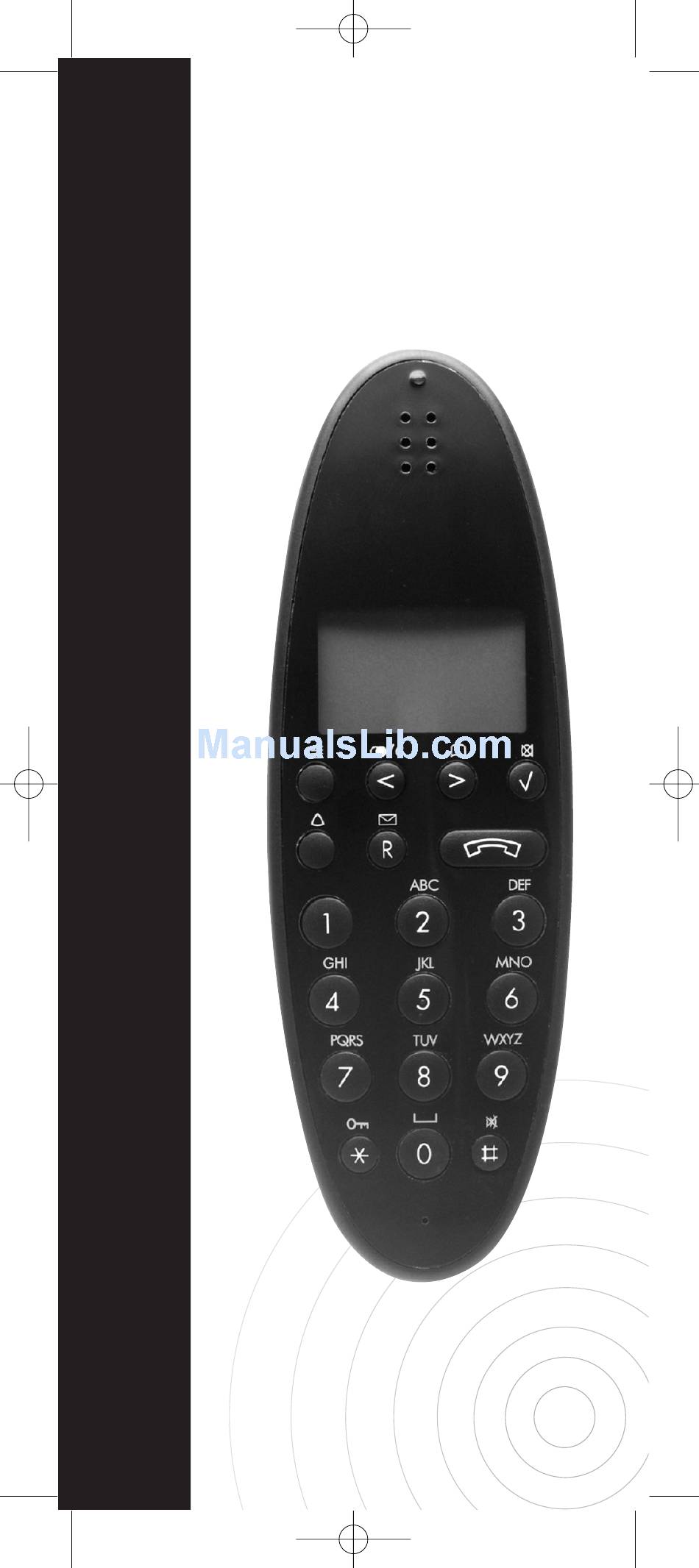

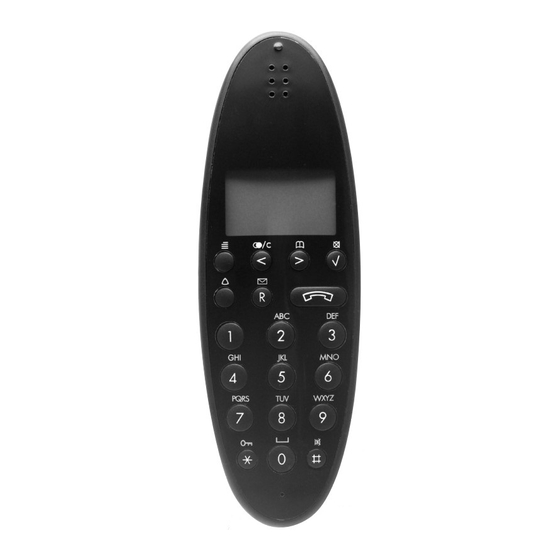

- Page 1 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2 1610 Handset Diagnostic handset...
- Page 2 1415 0200-ed2:14473_KT_1415 0200 ed1 1 Diagostic handset 2 Charger 3 Deployment 4 Subscription of the Handset 5 Menu Structure 5.1 Best Base Stations 5.2 Cur. Base 5.3 Free Chan. 6 Possible Use of the Handset 1. The Diagnostic handset – The pro- fessional diagnostic tool for fault fin- ding and deployment of DECT systems...
- Page 3 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2 During normal operation, it takes approx- imately 3 1/2 hours to charge the hand- set from fully discharged to its full capa- city. Place the handset in the charger. When the handset is turned on, the dis- play shows the charging status in line 3.
- Page 4 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2 3. Deployment The difficult part of installing a DECT system is the question of where to place the base stations. The placement of the base stations is made during deployment of the site. Deployment should only be performed be trained technicians.
- Page 5 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2...
- Page 6 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2...
- Page 7 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2...
- Page 8 1415 0200-ed2:14473_KT_1415 0200 ed1 5.1. Best Base Stations In the “BEST BASES” menu it is possi- ble to see how many base stations there are in the air where the handset is pla- ced. The base stations are sorted after signal strength (RSSI).
- Page 9 1415 0200-ed2:14473_KT_1415 0200 ed1 Class C is for DECT local loop: ARI C POC FPN FPS Class D is for DECT directly attached to GSM: Class E is for PP to PP direct communi- cation: RFPI B PARI EIC FPN FPS RPN = 31 bits RFPI C PARI...
- Page 10 1415 0200-ed2:14473_KT_1415 0200 ed1 EMC: Equipment Manufacturer’s Code FPN: Fixed Part Number RPN: Radio Fixed Part Number (Base number) EIC: Equipment Installer’s Code FPS: Fixed Part Sub Number POC: Public Operator Code GOP: GSM Operator Code FIL: Fill bits fixed 16-bit 0101... pattern The ARI Number of a DECT System The ARI number of a residential system characterised by the octal number start-...
- Page 11 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2 Base Number (RPN) The RPN value can be read in the hand- set and can be in decimal or hex value. The hex value is read in the test mode * 99989 *, and the decimal value is in the test mode * 99981 *.
- Page 12 1415 0200-ed2:14473_KT_1415 0200 ed1 XXXXXXXXXX: RFPI number. To select a base station press ENTER and the handset will stay on this base stations until the handset is powered off or a LOGIN is made. The display is now the same as if CUR BASE (Ch. 5.2) was selected.
- Page 13 1415 0200-ed2:14473_KT_1415 0200 ed1 my bearer only uses one channel on the base station RF-module if the dummy bearer is jumping between the channels. When a call is on the base station all slots on the frequency are blocked. The frequency on which the call is can also change, but this only happens if the qua- lity is getting very bad.
- Page 14 1415 0200-ed2:14473_KT_1415 0200 ed1 06-12-2007 15:2 Note:...
