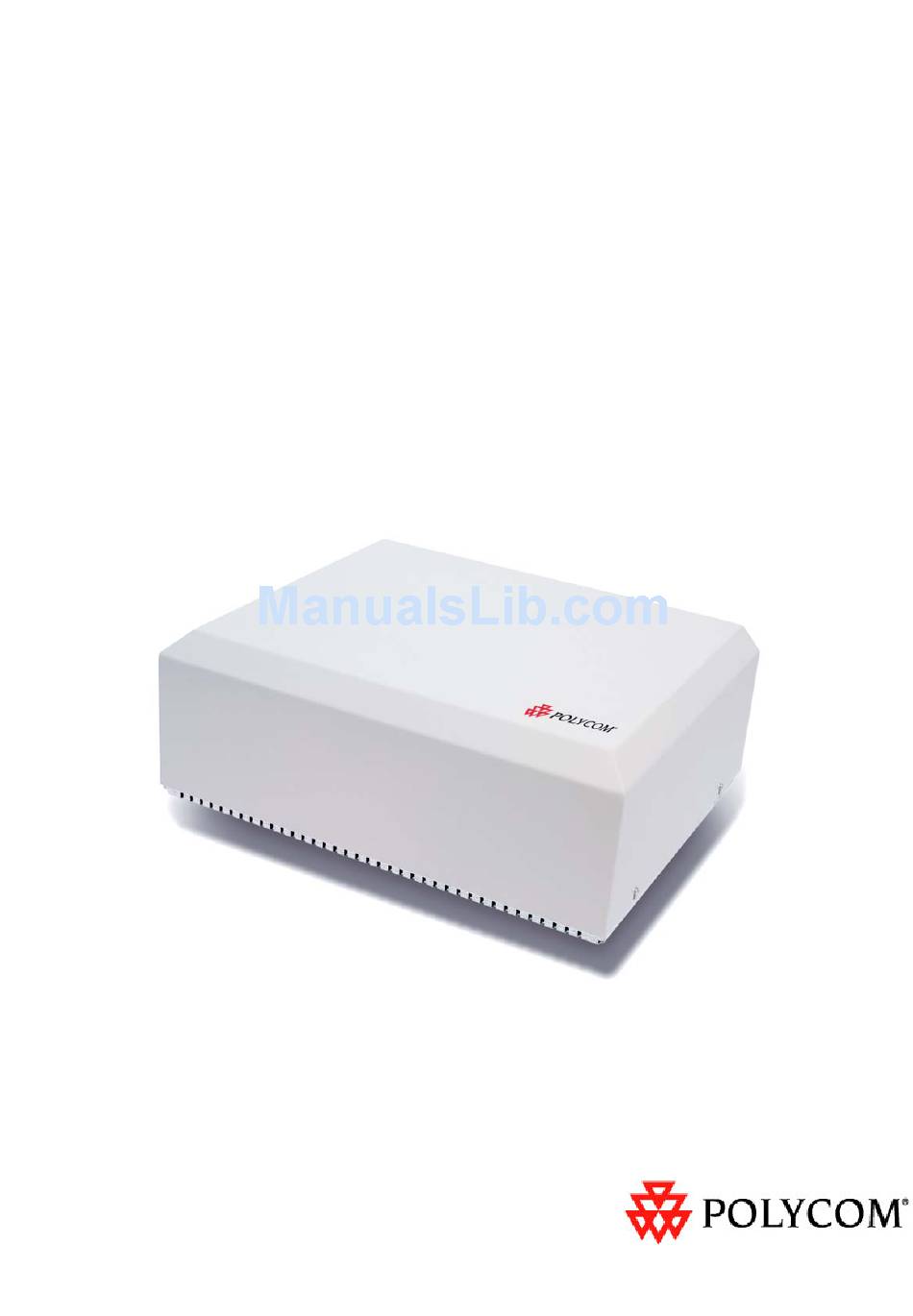

- Page 1 Polycom KIRK ISDN Interface Card ® User Guide...
- Page 2 PBX's. The protocols available are QSIG ver.3.0 and NET5. Please see the white list on our website. Note: Handling of the KIRK Wireless Server with the KIRK ISDN Interface Card can only be done from the Administration Program version 8.09 or higher. The system also needs a 28 digit pin code which you can get from KIRK telecom Sales Support.
- Page 3 2. Setting up the KIRK ISDN Interface Card The KIRK ISDN Interface Card must be installed in Slot 0 (closest to AC main plug). Please refer to the KIRK ISDN Interface Card Installation Guide for more information about the installation of the KIRK ISDN Interface Card.
- Page 4 Preparing the KIRK Wireless Server 1500 for Use When preparing the KIRK Wireless Server 1500 for use it is necessary to use the Administration Program. In the Administration Program you change the flash software, register users, allow subscription of handsets and type the required pin code. 1 Open the Administration Program version 8.09 or higher to change the flash software.
- Page 5 3 In the Advanced Options tab, click Transfer Flash Code to CCFP. An Open dialog box appears. 4 Select the flash code in question ((1330 0180.KTB), and then click Open. The flash software will be loaded to the system. Loading the flash can take a while. 5 In the Advanced Options tab, select the Allow Subscription checkbox.
- Page 6 7 Click OK to accept the code. 8 In the Advanced Options tab, click Restart System. 9 Click Close to return to the main window. 10 From the main window, click the ISDN Registration to register users. 11 Under Current User Data, type the serial No., AC No., Local No. and Standby text, and then click Create.
- Page 7 ISDN IWU. If not already installed, download the software from www.kirktelecom.com. 2.2 Setting up the connection 1 Connect the PC to the KIRK ISDN Interface Card (J5), and start the administration software. If a symbol is shown at each information in the main window and the status bar says “Receive –...
- Page 8 2 Click File>setup connection. Click Disconnect and Select the correct comport. Click Connect and Close. Note the “Receive – success” message on the status bar. 2.3 Uploading new flash software to the ISDN IWU card. Click Advanced and select Load Flash. An Flashload dialog box appears.
- Page 9 2.4 Changing parameters and using feature. When opening the administration software the program will with the Function Commands tab selected. Here it is possible to enable or disable a list of features. 1. Call forward and Call forward reply timer. It is possible to activate call forward individual on each handset subscribed to the system.
- Page 10 2. how to activate call forward. 1. Press the menu button on the handset and select EXT. SERVICE 2. Select CALL DIVERS. and select the wanted type of call forward. 3. Select FORWARD NUMBER and type the wanted call forward destination number.
- Page 11 10. EEprom Key Param. This setting defines if it should be possible to transfer key information during connect. Normally this should be possible to be able to use phone banking and other dial-inn services. Under normal operations it does not cause any problems enabling both DTMF and Keypad information.
- Page 12 the function that causes problems and try to do this in a situation where there is no other traffic on the system. Send the mail to KIRK. Remember to disable the trace information in the Protocol debug tab before shutting down the administration software. 14129600-HD, Ed.008/ Page 12...
