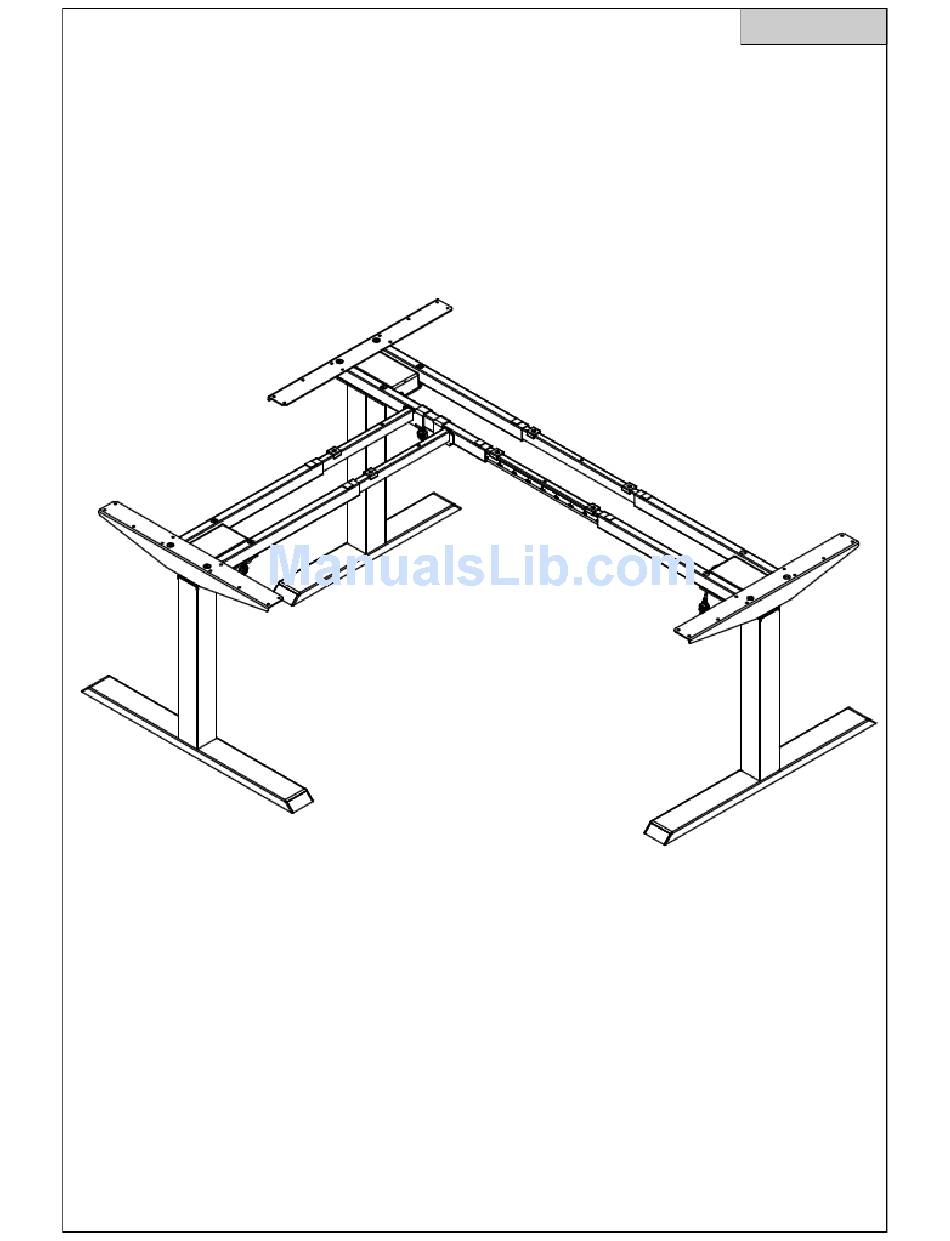

- Page 1 English MultiTable Electric ModDesk Pro-L Assembly Manual Read this manual thoroughly and store in a safe place.
-
Page 2: Table Of Contents
Content GENERAL .......................... 3 Local value of the assembly/operating manual ............3 Intended use ......................3 Improper use ......................3 Content box ......................4-5 SAFETY INFORMATION ..................... 6 Symbols/warnings ....................6 Symbols used on the workstation frame ..............6 Organizational measures ..................6 Informal safety measures .................. -
Page 3: General
1 General 1.1 Local value of the assembly/operating manual The guiding principle for safe use and trouble-free operation of this workstation frame is knowledge of basic safety information and regulations. This assembly/operating manual contains the most important information needed for assembling and operating the workstation frame safely. -
Page 4: Content Box
1.4 Content Box Assembly requires 2 people ! Items optional... - Page 5 Mounting Hardware Kit M8x50 M6x16 M10x35 4.5x16 M6x8 Tools...
-
Page 6: Safety Information
2 Safety Information 2.1 Symbols/warnings The assembly/operating manual uses the following terms and signs to indicate dangers: This symbol indicates an immediate threatening situation for any person’s life or health. Failure to adhere to such information may have serious consequences for health, or could even result in life-threatening injury or death. -
Page 7: Specific Dangers
2.8 Specific dangers When adjusting the height of the frame there is danger of injury. Make sure that • there is no-one else in the immediate surroundings of the frame. When assembling the workstation frame, make sure there is ample space to avoid •... -
Page 8: Assembly
3 Assembly Before attempting assembly, read the safety information in Section 2. .1 Checking the items supplied • Carefully open the cardboard packaging. • In doing so, do not use any long knife blades. They may damage the components inside. •... -
Page 9: Mounting The Feet
3.4.2 Mounting the Feet ... -
Page 10: Mounting The Crossbar
3.4.3 Mounting the Crossbar ... -
Page 11: Mounting The Top Support
3.4.4 Mounting the Top Support 3.4.5 Adjustment of the Frame Width ... -
Page 12: Mounting The Spacer
3.4.6 Mounting the Spacer ... -
Page 13: Pre-Assembly Of The Side Return Crossbars
3.4.7 Pre-assembly of the Side Return Crossbars Return Table Top Sizing: Crossbar Alignment Width / size table top Depth / size table top Table Top Thickness Align w/pre-drilled holes 40” 24” 3/4” Align w/pre-drilled holes 48” 24” 3/4” Adjust to fit Custom 27”... -
Page 14: Mounting The Side Return Crossbar On Left Or Right Side
3.4.8 Mounting the Side Return Crossbars on Left or Right Side 3.4.9 Mounting the Locking Plate ... -
Page 15: Mounting The Side Return Top Support And Spacers
3.4.10 Mounting the Side Return Top Support and Spacers ... -
Page 16: Connecting The Electrical Components
3.4.11 Connecting the electrical components Keep in mind that the desk which you are assembling is height adjustable. The cables of the electrical components must be able to freely follow the movement of the desk. -
Page 17: Frame Test Without Table Top
3.4.12 Frame test without table top Please make sure that the workstation frame can move freely and correct at all times. In case you need to disconnect cables from the electrical components always be sure to disconnect power first. In case the height adjustment is not operating normally, stop using the workstation frame immediately and disconnect the power. -
Page 18: Note: Mounting The Table Top
3.4.13 Note: Mounting the table top Center tops over bases, align with predrilled holes, and attach with wood screws (50 total). • Lay the Table Tops over the Base. • First, attach both Table Tops together with the table top brackets and the 8 table top screws. •... -
Page 19: Correct Position Of Seat
4 Correct position of seat 90°-120° Correct sitting posture Sitting incorrectly can lead to injuries at joints, bowstrings and muscles. In order to prevent this it is necessary to adjust your office chair and desk. Apart from the following advise you should always prevent an uncomfortable sitting posture. If you feel that the following advices leads you to an uncomfortable sitting posture simply adapt your needs. -
Page 20: Technical Specifications
5 Technical Specifications Frame for Sit-Stand Workstation Assembly Manual version 1600044-0E Year of release 06/2016 Production country Malaysia System 2-step Material Steel, Plastic and Aluminium Stroke (max.) 26” Frame load (max.) 450 lbs Frame weight ± 102 lbs Speed 0 lbs frame load ±... - Page 21 5 Technical Specifications (* General Tolerance = ± 1/8”) 43.3” - 66.875” 23.6” 23” Minimum Frame Height 24.5 in Maximum Frame Height 50.5 in Maximum Stroke 26 in Frame Width 43.3 -66.875 in Frame Depth 23.6 in Minimum Table Top Depth 24 in Maximum Frame Load 450 lbs...
-
Page 22: Operation And Indicators
6 Operation and Indicators Observe the provisions of Section 2 Safety Information on page 5, in particular: Do not leave children unsupervised with the workstation frame. Children may be unaware of the dangers presented by the work- station frame. They would be in serious danger of injuring them- selves, possibly even with fatal consequences. -
Page 23: Troubleshooting
If your problem couldn´t be solved or is not listed here, please contact your customer If your problem is not resolved or you need assistance, please call MultiTable, and we’ll be happy If the problem persists, or is not mentioned here, please feel free to contact MultiTable customer service for further advise. -
Page 24: Customer Service
8 Customer Service Make sure you have the workstation frame information at hand when contacting the customer service. MultiTable, LLC 2255 W Desert Cove Ave Suite E Phoenix, AZ 85027 Local: 602-773-6911 Toll Free: 855-469-6858 9 Recycling 9.1 Taking the workstation out of active duty Pull the power plug out of the electricity socket.
