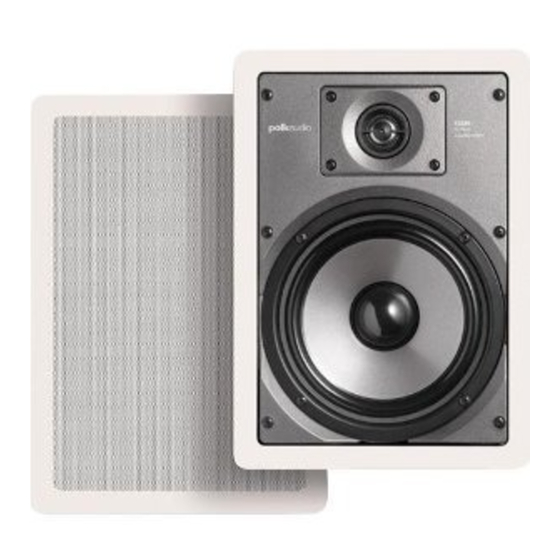

- Page 1 TC610i TC615i Owner’s Manual High Performance In-Wall Speakers Haut-parleurs Haute Performance encast- rables « In Wall »...
-
Page 2: Placement Options
PLACEMENT OPTIONS Polk Audio TCi Series In-Wall Loudspeakers give you nearly end- less placement options. But remember that placement choice for your in-wall speakers bears careful consideration, as installation requires that you cut a hole in your wall! Fill a room with sound by installing in-wall speakers in nearly any wall or ceiling location [figure 1]. - Page 3 FIGURE 3 Examples of in-wall and in-ceiling placement. When used as rear/sur- rounds, aim tweeter toward the nearest reflecting surface (an adjacent wall or ceiling) for a more diffuse sound field. Ejemplos de ubicación al ras de la pared o del cielorraso. Cuando se use como altavoz posterior o surround, oriente el tweeter hacia la superficie reflectora más cercana (pared o cielorraso adyacente) para producir un campo de sonido más difuso.
-
Page 4: Preparing To Paint
• Paint mask (to cover unpaintable parts, supplied!). PREPARING TO PAINT: 1. Separate the parts of the speaker. If the speaker is not yet installed, the grille can be removed simply by pushing the clamp screws forward to push the grille off the speaker from the inside. -
Page 5: Painting The Frame
PAINTING THE GRILLE: 1. The grille of the TCi Series speaker features an even, protec- tive powder coating. This powder coating is an ideal primer. 2. Grilles must be spray painted. Do not use a brush and paint. -
Page 6: Installation
Wiring is best performed by an experienced professional. If you are in doubt that you possess the necessary skills or tools, consult your Polk Audio dealer, or a professional installer. POP-OUT AREA TEMPLATE FIGURE 10a Round Template: Trace within the pop-out area. -
Page 7: You Will Need
• Make sure the locations you select do not conceal studs, elec- trical wiring or plumbing. Prior to installation, hold the speaker in your chosen location to make sure it safely clears obstacles such as studs, corners, beams, lighting fixtures and door/win- dow frames. - Page 8 (so you have two unfrayed strands). Note that one of the terminals on the rear of each speaker is red (+) and the other is black (-). Make certain that you connect the wire from the red terminal (+) of your amplifier...
- Page 9 Polk Audio loudspeakers and subwoofers are capable of playing at extremely high volume levels, which could cause serious or permanent hearing damage. Polk Audio, Inc. accepts no liability for hearing loss, bodily injury or property damage resulting from the misuse of its products.
-
Page 10: Safety First
2 13/16" (7.1cm) Profondeur av. placoplâtre 1/2" Shipping Weight Each 2 1/4 LBS- 2.5 Kg Poids à l’expédition ch. “Polk Audio” is a trademark of Britannia Investment Corporation. «Polk Audio» est une marque de commerce de la Britannia Investment Corporation. - Page 11 La garantie sera automatiquement annulée avant sa date d’expiration spécifiée si l’acheteur original vend ou transfère le produit à tout autre parti. Polk Audio, Inc., garantit - à l’acheteur au détail original seulement - que le ou les HAUT-PARLEUR(S), COMPOSANTE(S) DE FILTRE PASSIF et CAISSON(S) de ce pro- duit Polk Audio seront exempts de tout défaut attribuable aux pièces d’origine et...
