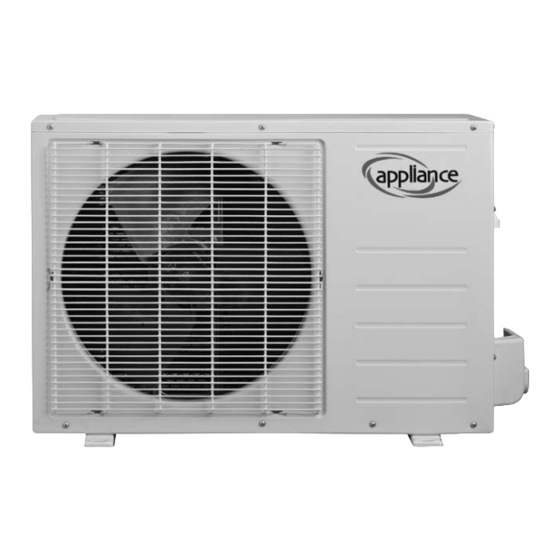

- Page 1 AAC Design 11000 A - PTC GEBRAUCHSANWEISUNG BRUGSANVISNING INSTRUCCIONES DE USO MANUEL D'UTILISATION KÄYTTÖOHJE OPERATING MANUAL...
-
Page 2: Table Of Contents
CONTENTS Safety instructions Parts identification Operation with remote control Special function Manual operation. Adjusting air flow direction. Operation tips How the air conditioner works Operation tips Cleaning and maintenance Troubleshooting tips Guarantee conditions Technical data READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a litt- le preventative care on your part can save you a great deal of time and money over the life of your air con- ditioner. -
Page 3: Safety Instructions
• Have any repairs and/or maintenance only carried out by a recognised service engineer or your recognised Appliance supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device. • Always remove the plug of the unit from the wall socket when it is not in use. -
Page 4: Control Panel
Do not use the power cord close to heating ner if there is a gas leakage from another Do not disassemble or modify unit. appliances. appliance. • It may cause explosion, fire and, burns. • It may cause fire and electric shock. -
Page 5: Preparing For Operation
Ensure that the installation bracket of the out- Hold the plug by the head of the power plug Do not place obstacles around air inlets or insi- door appliance is not damaged due to prolon- when taking it out. de of air-outlet. -
Page 6: Parts Identification
When cleaning the unit, first make sure that the power and circuit breaker are turned off. Service For repair and maintenance, contact your authorised service dealer. Operating Temperature COOLING MODE HEATING MODE INDOOR OUTDOOR INDOOR OUTDOOR MAX. MIN. MAX. MIN. MAX. - Page 7 LCD DISPLAY WINDOW fig. 2 OPERATION indication lamp This lamp illuminates when the air conditioner is in operation. AUTO CLEAN indication lamp (optional) Lights up during the Auto operation. TIMER indication lamp Lights up during Timer operation. CLEAN AIR indication lamp Lights up when CLEAN AIR feature is activated and Ionizer can generate abundant anions to fill the room with refreshing and natural air.
-
Page 8: Operation With Remote Control
OPERATION WITH REMOTE CONTROL NOTE! • Always aim the remote controller towards the receiver on the indoor unit and make sure there are no obstacles in between the remote control and the receiver on the indoor unit. Otherwise the remote control signal will not be picked up by the receiver and the air conditioner will not work properly. - Page 9 Timer on Button: Press this button to initiate the auto-on time sequence. Each press will increase the auto-timed setting in 30 minutes increments. When the setting time displays 10Hr, each press will incre- ase the auto-timed setting 60 minutes increments. To cancel the auto-timed program, continue pressing the button until time setting is 0.0.
- Page 10 Display Panel DIGITAL DISPLAY area: This area will show the set temperature and, if in the TIMER mode, will show the ON and OFF settings of the TIMER. If in the HEALTH mode, nothing is appeared. TRANSMISSION Indicator: This indicator lights when remote controller transmits signals to the indoor unit.
- Page 11 Push the button to set the desired room temperature. The most comfortable temperature set- tings are between 21ºC to 28ºC. Push the On/off button to start the air conditioner. The OPERATION lamp on the display panel of the indoor unit lights. The operating mode is AUTO. The FAN SPEED is automatically controlled. Push the On/off button again to stop the unit operation.
-
Page 12: Special Function
1.2 Push the Timer on button again to set desired unit start time. 1.3 After setting the Timer on ,there will be half a second delay before the remote controller transmits the signal to the air conditioner. Then, after approximately another 2 seconds, the signal "h" disappears and the set temperature will re-appear on the digital display. -
Page 13: Manual Operation
To activate the Follow Me feature, point the remote control towards the unit and press the Follow Me button. The display on the remote control shows the actual temperature at its location. The remote control will send this information to the air conditioner every 3 minutes, until the Follow Me button is pressed again. If the unit does not receive the Follow Me signal for 7 minutes, the unit will beep to indicate that the Follow Me mode has ended. -
Page 14: Adjusting Air Flow Direction
ADJUSTING AIR FLOW DIRECTION • Adjust the air flow direction properly otherwise, it might cause discomfort or cause uneven room temperatures. • Adjust the horizontal louver using the remote control. • Adjust the vertical louver manually. Adjusting the Vertical Air Flow Direction (up - down) The air conditioner automatically adjusts the vertical air flow direction in accor- dance with the operating mode. -
Page 15: Operation Tips
OPTIMAL OPERATION To achieve Optimal performance, please note the following: • Adjust the air flow direction correctly so that it is not directed on people. Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive temperature levels. •... - Page 16 C) Low temperature heating. The indoor or outdoor fan stop running when defrosting (Reverse cycle models only). • Defrosting (Reverse cycle models only) Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low and humidity is high resulting in lower heating efficiency of the air conditioner. •...
-
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING Before performing any maintenance, turn off the main power to the system. Cleaning the indoor unit CAUTION Turn the system off before cleaning. Use a dry cloth. A cloth dampened with cold water may be used if the indoor unit is very dirty. The front panel of the indoor unit can not be removed. - Page 18 The rear air inlet grille should be checked and cleaned once every 2 weeks or more often if necessary. A clog- ged air inlet grille will reduce cooling/heating efficiency. Push the right and left sides of the grille with your thumb and lift it upward, then take it out. Clean it with water, then use a dry cloth to wipe it.
-
Page 19: Troubleshooting Tips
TROUBLE SHOOTING TIPS Malfunctions and Solutions Stop the air conditioner immediately if one of the following faults occur. Disconnect the power and contact the nearest customer service centre. • Any one of E1, E2, E3, E4, E5 and E6 displays on the indoor unit. •... -
Page 20: Guarantee Conditions
If the trouble has not been corrected, please contact a local dealer or the nearest customer service centre. Be sure to inform them of the detailed malfunctions and unit model. NOTE! Do not attempt to repair the unit yourself. Always consult an authorised service provider. GUARANTEE CONDITIONS The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. -
Page 21: Technical Data
TECHNICAL DATA Model AAC Design 11000-A PTC Type air-conditioner Wall mounted split Cooling capacity (max.)* 2600 EE Class* EER* 3.22 Heating capacity (max.)* 3000 Heating performance COP* 3.62 Dehumidifying capacity ** * L / 24h Power consumption cooling 0.81 Power consumption heating 0.89 Power supply V / Hz / Ph... - Page 22 DISTRIBUTED IN EUROPE BY APPLIANCE A/S i ÖSTERREICH 4 UNITED KINGDOM PVG Austria VertriebsgmbH Scott Brothers Ltd. Salaberg 49 The Old Barn, Holly House Estate 3350 HAAG Cranage, Middlewich, CW10 9LT UK tel: +43 7434 44867 tel.: +44 1606 837787...
