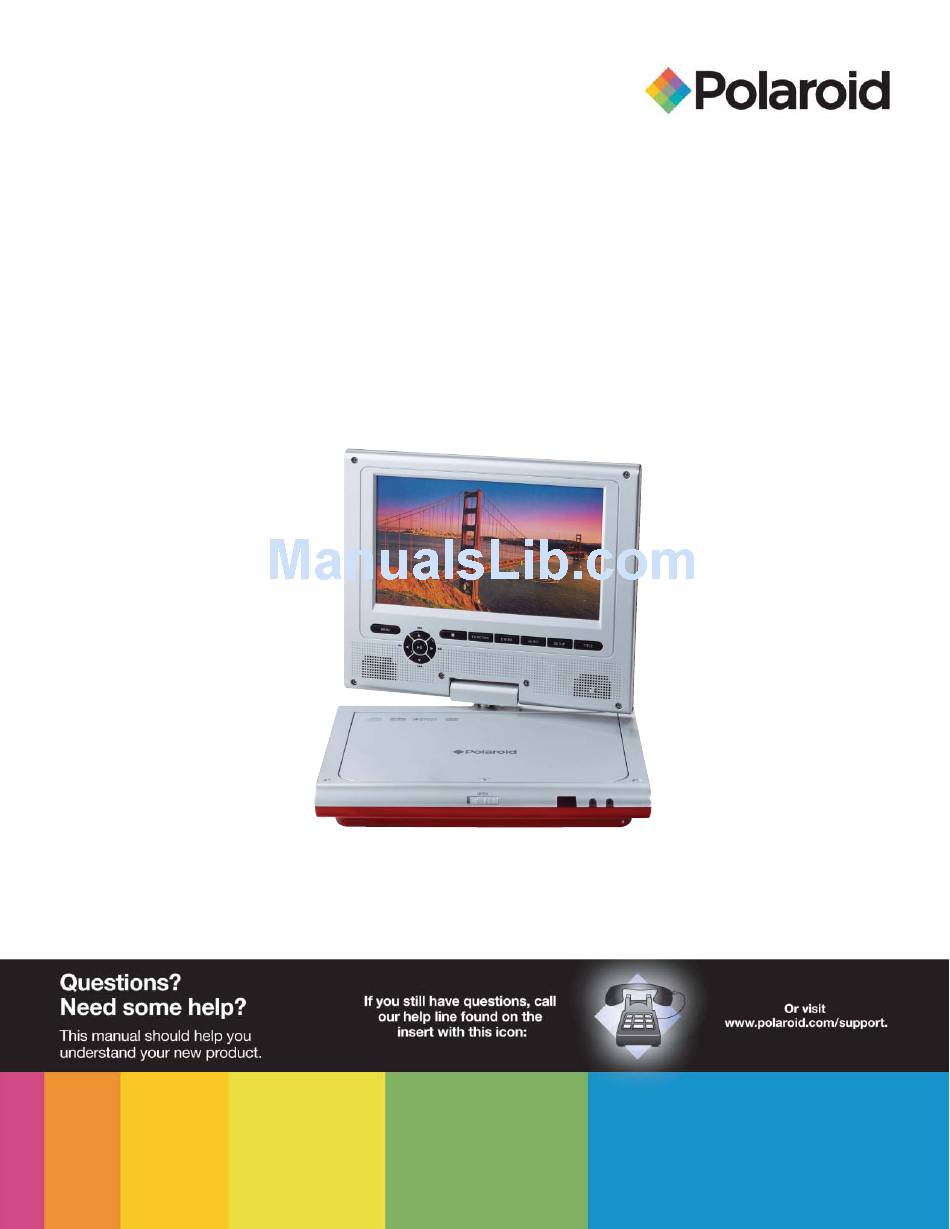

- Page 1 Portable DVD Player with Swivel Screen User’s Manual 20071226 20080421...
-
Page 2: Important Safety Instructions
Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 3 Important Safety Instructions CAUTION: These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualifi ed to do so. Refer to service manual for servicing instructions.
-
Page 4: Copyright Protection
To fi nd out how to properly dispose of this product, please go to www.polaroid. com and click on “Company“ or call the customer service number for your country listed in the instruction manual. -
Page 5: High-Quality Audio And Video
High-quality Audio and Video Excellent Sound: Dolby Digital Decoder delivers great sound. • AV Input: External audio, video can be connected to most external AV sources. • AV Output: Analog audio output can be connected to external amplifi er. • Advanced Playing Functions Compatibility: Compatible with DVD, CD, and JPEG discs, etc. -
Page 6: Accessories
Your portable DVD player may not include all accessories listed below. To purchase additional accessories for your player, visit www.polaroid.com. ITEM ITEM Note: Accessories and their parts numbers are subject to change without prior notice. Accessories Remote Control (with battery) -
Page 7: Table Of Contents
Important Safety Instructions Features Accessories View of Front Panel View of Side Panel View of Bottom Panel Revolving LCD Screen Remote Control System Connections Power Supply Rechargeable Battery Notes on Discs Playback Operation DVD Playback CD Playback JPEG Playback System Setup Defi... -
Page 8: View Of Front Panel
Working/Standby indicator Charge indicator: light is red when the battery is being charged; green when battery is fully charged. Remote sensor * Your portable DVD player may differ from the player shown. View of Front Panel* to go to previous list/track/chapter... -
Page 9: View Of Side Panel
Audio/Video Output Jack: For connecting to an external amplifi er or monitor source Power ON/OFF Switch: Switch the power on or off DC 9/12V Input Jack: Used to connect the DC 9/12V adaptor * Your portable DVD player may differ from the player shown. View of Side Panel*... -
Page 10: View Of Bottom Panel
View of Bottom Panel* Rechargeable Battery Contacts: For connecting the rechargeable battery pack Note: All markings are on the bottom of the portable DVD player. * Your portable DVD player may differ from the player shown. -
Page 11: Revolving Lcd Screen
Revolving LCD Screen The revolving LCD screen is one of the outstanding features about this product. Here are some suggested steps for proper operation: Revolving LCD Screen Open the screen cover to position (A) as shown at left, where the screen is vertical to the operation panel. Revolving the screen horizontally about its axis in the clockwise only. -
Page 12: Remote Control
AUDIO button: press to select different languages when a DVD disc with multiple audio languages is being played; press to select different audio tracks when a CD disc is being played * Your portable DVD player may differ from the player shown. Remote Control*... -
Page 13: Using The Remote Control
Installing the Remote Control Battery Pull the battery holder out from the remote control as shown below. Load a new battery properly with the (+) side up. Insert the battery holder back into the remote control. Battery Type: CR2025 3V Battery service life: approximately 1 year under normal use (at room temperature) Using the Remote Control Point the remote control to the remote sensor on the player within a 5-meter range and 60-degree angles, with-... -
Page 14: System Connections
DVD player. Connect the connected RCA cables to the gaming system and portable DVD player, turn on the portable DVD player and gaming system, and press the AV IN/OUT button on the portable DVD player to play. * Gaming adapter not included with all portable DVD players. -
Page 15: Using The Ac Adapter
Using the AC Adapter The player is supplied with an AC adapter for powering the player and charging the battery. Connect the AC adapter to the left side of the DVD player marked DC 9/12V IN. Plug the two-prong end of the power cord into a grounded electrical outlet. Notes: •... -
Page 16: Rechargeable Battery
About Your Rechargeable Battery Pack Your portable DVD player may come with a lithium ion polymer rechargeable battery that attaches to the bot- tom of the DVD player. Charge the battery fully before initial use. Charging time is normally about 5 hours. A fully-charged battery delivers about 2.5 hours of use, but playing time varies disc to disc. -
Page 17: Attaching The Battery Pack
Attaching the Battery Pack With one hand on the DVD player to prevent it from moving, take the battery and align the plastic tabs on the battery pack with the holds on the player, and push the battery pack into the DVD player. Slide the battery pack until you hear it click and lock in place. -
Page 18: Compatible Disc Formats
Compatible Disc Formats JPEG Operation methods of some DVD discs are specifi ed by the software manufacturer. Please follow the instructions of the disc. Care of Discs Holding Discs • When loading or removing discs, try not to touch their play surfaces. Cleaning Discs •... -
Page 19: Pre-Operation
Adjust the volume with the VOLUME control on the right panel to the desired level. To turn the player off, switch the POWER ON/OFF to off. * Your portable DVD player functions may differ from the player shown. Playback Operation*... -
Page 20: Dvd Playback
Features are available on both the DVD player and remote control unless otherwise noted. DVD Playback ENTER button PAUSE/ button STOP/ button MENU button TITLE button ZOOM button & buttons & buttons SLOW button REP button A-B button GOTO button Playback Operation When you load a disc in, the player will search the disc and play it automatically. -
Page 21: Cd Playback
DVD Playback (continued) INFO button AUDIO button SUBT button ANGLE button CD Playback PAUSE/ button STOP/ ■ button buttons & & buttons GOTO button INFO button REP button AUDIO button Playback Operation Press to display or cancel the detailed information of the disc during playback. (remote only) DVD discs can contain up to 8 audio bit streams. -
Page 22: Jpeg Playback
JPEG Playback Pre-Operation Load a JPEG in the disc tray and the player will search and play the disc automatically. The screen displays the root folder with several subdirectories/sub-folders. Use the desired folder. Then press the ENTER button to confi rm your selection. The screen enters the sub-folder with several fi... -
Page 23: Rotating Pictures
JPEG Playback (continued) Rotating Pictures While viewing a picture, use the direction buttons to rotate the picture. ◄ Press the button to rotate the current picture clockwise: ► Press the button to rotate the current picture counterclockwise: Press the button to rotate the current picture up and down: Press the button to rotate the current picture left and right: Playback Operation... -
Page 24: General Setup
Press the direction buttons to select a sub-menu to program and press the ENT/ENTER button to access. Press the SETUP button again to exit the setup menu at any time during setting. General Setup * Your portable DVD player functions may differ from the player shown. System Setup* SCREEN SAVER •... -
Page 25: Language Setup
Language Setup System Setup OSD LANGUAGE • This item is used to set the OSD (on-screen display) language. • Press the buttons to highlight this item. • Press the button to access. • There are several languages for you to choose. •... -
Page 26: Defi Nitions
Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. -
Page 27: Troubleshooting
If you suspect there is something wrong with the DVD player, immediately turn off the power. Disconnect the power connector and check that there is no smoke or excessive heat coming from the player. Never open or try to repair the player yourself. There are no user serviceable parts inside. PROBLEM The player cannot play There is no sound... -
Page 28: Specifi Cations
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confi dential unpublished works. © 1992-1997 Dolby Laboratories, Inc. For service, support and warranty information, visit www.polaroid.com. “Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation. Specifi cations 8 inches (16:9) 8.5 inches (16:9)
