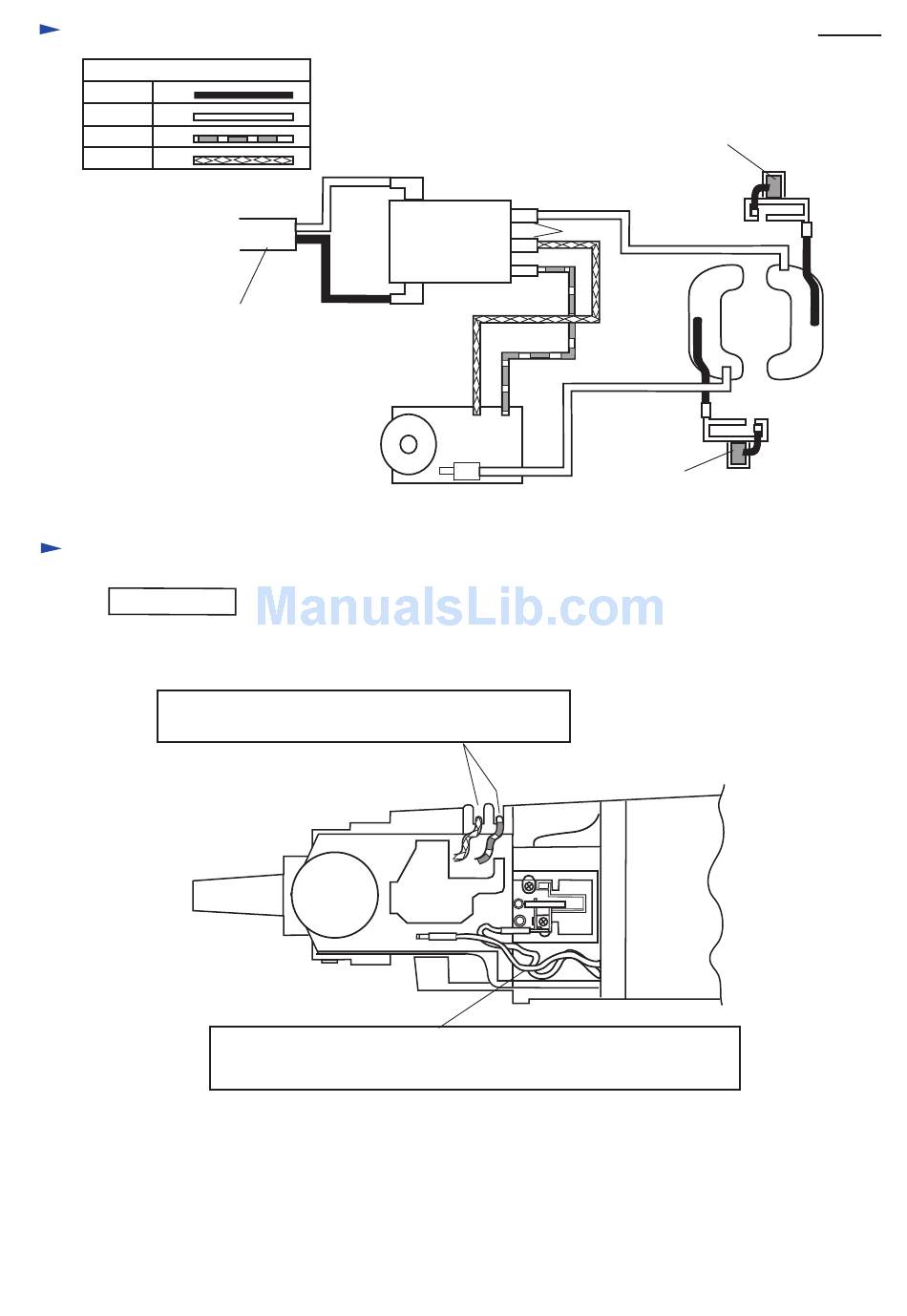

C
ircuit diagram
Color index of lead wires
Black
White
Red
Blue
Power supply
cord
W
iring diagram
Model 9566C,CV
with electronic features
Model 9566C : without speed control dial
Model 9566CV : with speed control dial
Put the lead wires of controller in the lead holder
so that they are not slacken.
Be careful not to loosen the lead wires of field in motor housing.
Put the loosened lead wires in the above place.
SB2
Switch block
SB1
Controller
Speed
Control
Dial
Brush holder
(Switch block side)
SB4
SB3
Brush holder
(Controller side)
P 9 / 10
