R
epair

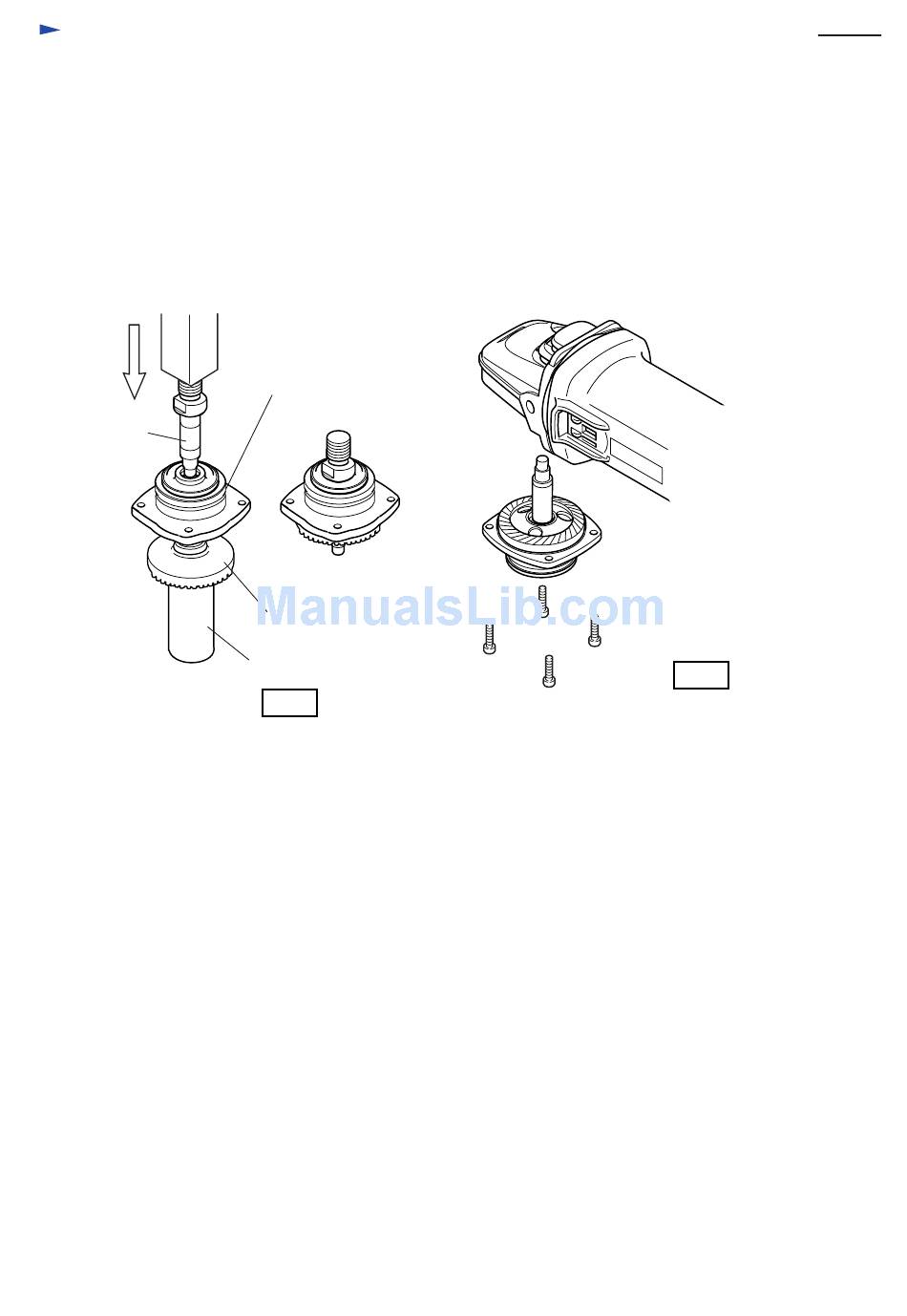

(4) Supporting spiral bevel gear 35 with 1R028 "Bearing setting pipe", assemble spindle to spiral bevel gear 35
by pressing with arbor press as illustrated in Fig. 4B.
(5) Assemble the gear section to gear housing by fastening with 4 pcs. of hex socket head bolts M4 x 16
as illustrated in Fig. 4C.
< Note in assembling >
The hex socket head bolts M4 x 16 are adhesive ones. The used hex socket head bolts have to be replaced
with fresh ones.
Spindle
Bearing box
Spiral bevel gear 35
1R028 Bearing setting pipe
Fig. 4B
P 7 / 10
Fig. 4C
