Summary of Contents for Polaroid FLM-3225

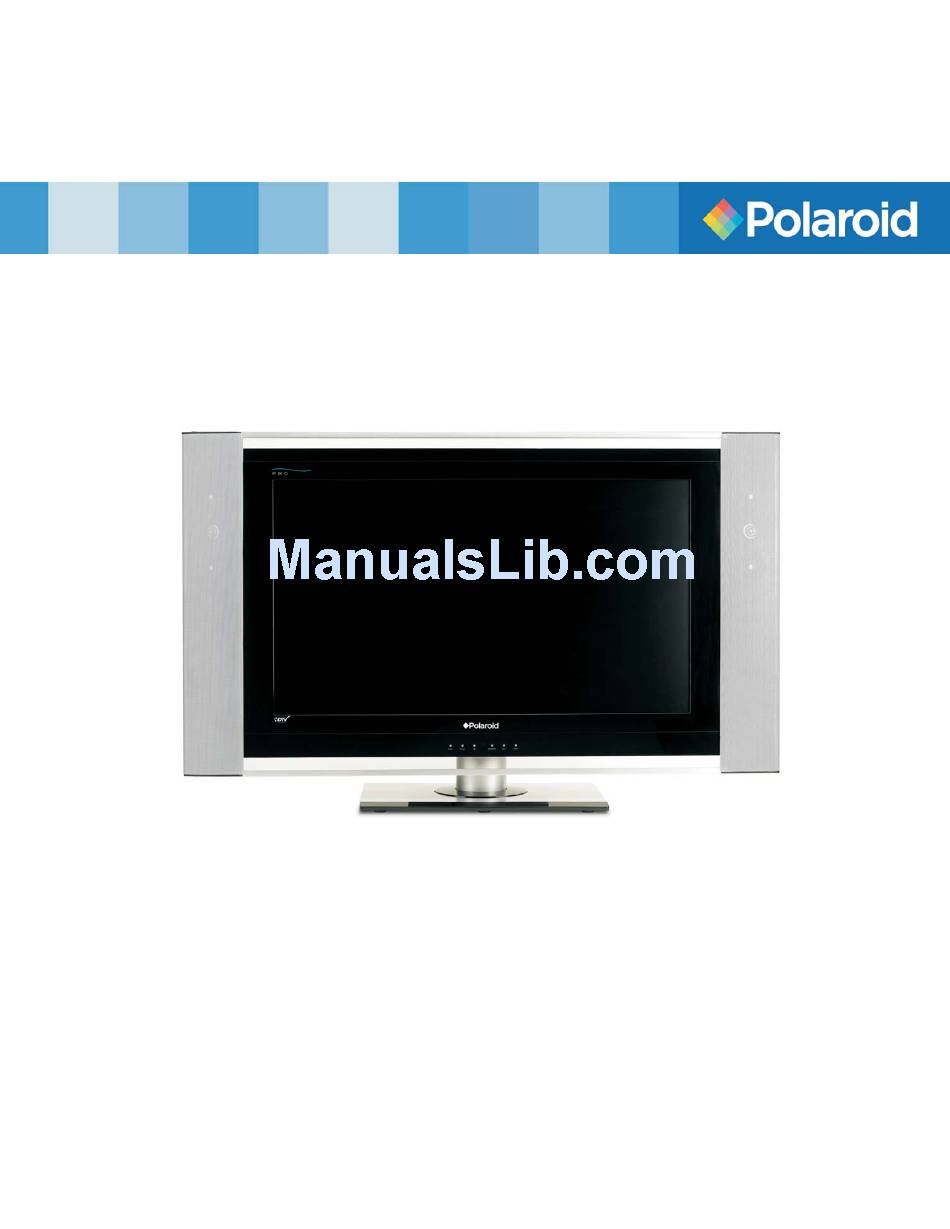

- Page 1 32” LCD Television FLM-3225 20051020...
-
Page 2: Table Of Contents
Important Information...1 Important Safety Precautions ...2 Preparations ...5 Using the Remote Control...5 Batteries for the Remote Control ...5 Power Connection...5 Antenna Connection ...6 Identification of Controls...7 Main Unit...7 Remote Control...9 Connections...11 Cautions Before Connecting ...11 Connect a VCR ...11 Connect a Camcorder ...12 Connect a DVD player...13 Connect a product to HDMI...14 Connect a PC...15... - Page 3 Setting OSD Timeout ...28 PIP Operations ...29 Viewing and Changing the Position of the PIP Frame ...29 Selecting the Signal Source for the PIP Frame...29 Selecting Sound Source for PIP Frame ...29 Viewing Closed Caption...30 Selecting Closed Caption...30 Adjustment in VGA Mode ...31 Adjusting the Picture ...31 Adjusting Image Size...31 Changing the Position of Image ...32...
-
Page 4: Important Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION-To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. -
Page 5: Important Safety Precautions
Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. - Page 6 Important Safety Precautions (continued) 12. Stand Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting inserious personal injuries as well as damage to the product.
- Page 7 22. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.
-
Page 8: Preparations
Using the Remote Control < Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation. Note: This illustration is for reference only. The remote sensor may be in different locations on different models. -
Page 9: Antenna Connection
Antenna Connection CABLE TV (CATV) CONNECTION A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75- ohm coaxial cable to the set, screw the 75- ohm cable to theANT. Terminal. Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. -
Page 10: Identification Of Controls
Main Unit VOL+/- Press the VOL+ VOL- button to directly increase or decrease the sound volume level; 2. POWER Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY. 3. - Page 11 Identification of Controls Main Unit Press and pull out the Cover carefully as the arrow shows (press and pull the two buttons at the same) Before you connect external devices with the unit, please removing the Back Cover. After finishing connecting, aim the insertion tabs toward the locating groove, then carefully push the Cover until the Cover locks in place with a click.
-
Page 12: Remote Control
Identification of Controls Remote Control (continued) 1 To select products to be controlled with remote control Note: This remote control is an universal control does not work correctly when you operate the TV set, please try to press button. 2 POWER Turn the unit on or off 3 0~9 number buttons Direct channel select... - Page 13 Identification of Controls Remote Control (continued) 13 ASPECT To select screen aspect ratio 14 DISPLAY To display channel status or signal information 15 STEREO To select stereo mode 16 PIP To activate PIP function 17 SIZE change the position of the PIP frame and 18 CAPTION To select CCD on/off and CCD mode 19 SLEEP...
-
Page 14: Connections
Cautions Before Connecting Carefully check the terminals for position and type before making any connections. The illustration of the external equipment may be different depending on your model. Loose connectors can result in image or color problems. Make sure that all connectors are securely inserted into their terminals. Refer to the operating manual of the external device as well. -
Page 15: Connect A Camcorder
Connect a Camcorder AUDIO AUDIO AUDIO S-VIDEO VIDEO VIDEO AUDIO AUDIO Yellow (VIDEO) White (AUDIO L) Red (AUDIO R ) How to connect: Connect the Audio Video cables between the Audio (L/R)/Video jacks on the unit and camcorder. To playback Camcorder 1. -
Page 16: Connect A Dvd Player
Connect a DVD player Video cable Audio cable AUDIO COMPONENT AUDIO AV OUT S - VIDEO AUDIO VIDEO Rear of the DVD player How to connect a DVD Player using Component Video Connections: Connect the Video cable between the Y, Pb/Cb, Pr/Cr input jacks on the unit and player. -
Page 17: Connect A Product To Hdmi
Connect a product to HDMI HDMI cable HDMI OUTPUT Product with HDMI jack How to connect: Connect the HDMI cable between the HDMI input jacks on the unit and HDMI output jacks on the product. Note: The HDMI Sources are compatible with DVI displays through the use of a passive cable converter. So you may connect product with DVI output jack to the unit. -
Page 18: Connect A Pc
Connect a PC D-Sub Audio cable cable How to connect: Connect a D-Sub cable between the VGA interface Connect an Audio cable between the AUDIO output on the PC and To Watch the PC screen 1. Turn on your LCD TV , press INPUT button on the remote control. -
Page 19: Connect A Vcr For Recording
Connect a VCR for Recording Yellow (VIDEO) White (AUDIO L) Red (AUDIO R ) How to connect: Connect the Audio Video cables between the Audio (L/R)/Video jacks on the unit and VCR. To record program 1. Turn on your LCD TV, select a program you wish to record. 2. -
Page 20: Turning The Unit On And Off
Turning the Unit On and Off Turning the Unit On and Off Turning On Insert the power cord into the wall outlet. Press the Power button on the remote control. The unit will be turned on and you will be ready to use its features. Turning Off With the power on, Press the Power... -
Page 21: Memorizing The Channels
Your LCD TV can memorize and store all of the available channels for both air and cable channels. After the available channels are memorized, use CH+/- to scan through the channels. Selecting the Signal Source Before your LCD TV can memorize the available channels, you must specify the type of signal source that is connected to the unit. (i.e., an air or cable system) Press MENU... -
Page 22: Adding And Erasing Channels
Memorizing the Channels Adding and Erasing Channels number buttons to directly select a channel that you want to add or erase. Press MENU to display the menu main page. Press repeatedly to select SOURCE Press to access the submenu. 6repeatedly Press to select ADD/ERASE... -
Page 23: Basic Operations
Changing Channels Using the Channel Buttons (CH+ or CH-) Press the CH+ CH- to change channels. When you press the CH+ CH- , the unit changes channels in sequence. You will see all the channels that the unit has memorized. You will not see channels that were erased. -
Page 24: Select Input Source Signal
Select Input Source Signal Press MENU to display the menu main page. Press repeatedly to select SOURCE Press to access the submenu. Press repeatedly to select PICTURE SOURCE Press to select. Press MENU repeatedly to exit. --------Select TV signal. ------- Select signal from AV IN(1) terminals. -
Page 25: Setting Picture
Customizing the Picture Press MENU to display the menu main page. The picture menu page will be displayed automatically. Press to access the PICTURE submenu. Press to select the item you wish to change. Press to adjust the value of the item. Press MENU repeatedly to exit. -
Page 26: Adjusting Screen Aspect
Setting Picture (continued) Adjusting Screen Aspect Press MENU to display the menu main page. The picture menu page will be displayed automatically. Press to access the submenu. Press repeatedly to select SIZE MODE Press to select a desired aspect ratio. You may also use the ASPECT button to select the aspect ratio between... -
Page 27: Setting Timer
Setting Clock Time Making use of this function can set the current time for the TV. Press MENU to display the menu main page. Press repeatedly to select FUNCTION Press to access the submenu. The [ CLOCK ] item will be highlighted automatically. Press to access . -
Page 28: Setting Sleep Timer
Setting Sleep Timer Making use of this function allows you to have the set automatically turn off after a preset time. Press MENU to display the menu main page. Press repeatedly to select FUNCTION Press to access the submenu. Press repeatedly to highlight SLEEP TIMER Press... -
Page 29: Setting Sound
Customizing the Sound Press MENU to display the menu main page. Press repeatedly to select SOUND Press to access the submenu. Press repeatedly to select the option items you want to adjust. Press to adjust the value . Using the Preset Sound Mode Press MENU to display the menu main page. -
Page 30: Selecting Stereo Mode
Selecting Stereo Mode Press MENU to display the menu main page. Press repeatedly to select SOUND Press to access the submenu. Press repeatedly to select item. Press to select a desired stereo mode. The relationships between Broadcast signal, User setting and Output are shown as follows: Broadcast signal MONO... -
Page 31: Adjusting On-Screen Display
Adjusting OSD Position Press MENU to display the menu main page. Press repeatedly to select Press to access the submenu. Press repeatedly to select H-POSITION Press to adjust the OSD position. Adjusting OSD Transparency Press MENU to display the menu main page. Press repeatedly to select Press... -
Page 32: Pip Operations
Viewing and Changing the Position of the PIP Frame Press MENU to display the menu main page. Press repeatedly to select SOURCE Press to access the submenu. The [PIP MODE] item will be highlighted automatically. Press repeatedly to select OFF, P1S1, P1S2, P2S1, P2S2, P3S1, P3S2,P4S1 or P4S2. -
Page 33: Viewing Closed Caption
The unit decodes and displays the closed captions that are broadcast with certain TV shows. These captions are usually subtitles for the hearing impaired or foreign language translations. All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. -
Page 34: Adjustment In Vga Mode
Adjustment in VGA Mode Adjusting the Picture Press Press MENU MENU to display the menu main page. to display the menu main page. The [PICTURE] menu will be highlighted automatically. Press to access the submenu. Press repeatedly to select the item you wish to change. Press to adjust the value of the item. -
Page 35: Changing The Position Of Image
Adjustment in VGA Mode(continued) Changing the Position of Image Press MENU to display the menu main page. Press repeatedly to select SCREEN Press to access the submenu. Press repeatedly to select H-POSITION Press to adjust the value of the item until the screen is well-aligned. Press MENU repeatedly to exit. -
Page 36: Adjusting Parental Control Settings
Adjusting Parental Control Settings Parental Control This function allows TV programs to be restricted and TV usage to be controlled based on FCC data. It prevents children from watching violent or sexual scenes that may be harmful. Restriction of TV programs includes two ratings that contain information about the program: the MPAA rating and the TV Parental Guidelines. -
Page 37: Accessing Parental Control
[2] MOVIE RATING (MPAA) Rating GENERAL AUDIENCES. All ages admitted. PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PARENTAL STRONGLY CAUTIONED. Some material may be inappropriate for children under 13. PG-13 RESTRICTED. Under 17 requires accompanying parent or adult guardian. based NC-17 NO ONE 17 AND UNDER ADMITTED. -
Page 38: Changing The Password
Adjusting Parental Control Settings Changing the Password After accessing the PARENTAL CONTROL CHANGE PASSWORD item. Press to access and then the unit requires you to input your new password. Directly use 0~9 number buttons to input and then confirm again. Press MENU repeatedly to exit. -
Page 39: Adjusting English Rating
Adjusting Parental Control Settings Adjusting ENGLISH RATING After accessing PARENTAL CONTROL select ENGLISH RATING item. Press to access submenu. Press repeatedly to select a desired rating you want to set. Press PIP INPUT button to block or unblock this rating . Press the MENU repeatedly to exit. -
Page 40: Troubleshooting
Before calling for repair service, check the following items for possible remedies to an encountered symptom. Symptoms “Ghost” or double images No power No picture Good picture but no sound Good sound but poor colour Poor picture Horizontal dotted line Television not responding to remote control Snowy picture and noise... -
Page 41: Specification
Total 181 channels TV system: NTSC-M Design and specifications are subject to change without notice. For service, support and warranty information, visit "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA. Specification www.pwwservice.com or call 1-866-396-6322. -
Page 42: Programming The Universal Remote Control
PRINTED IN RECYCLED PAPER 604-L26U253-00 Ver. 1.0...
