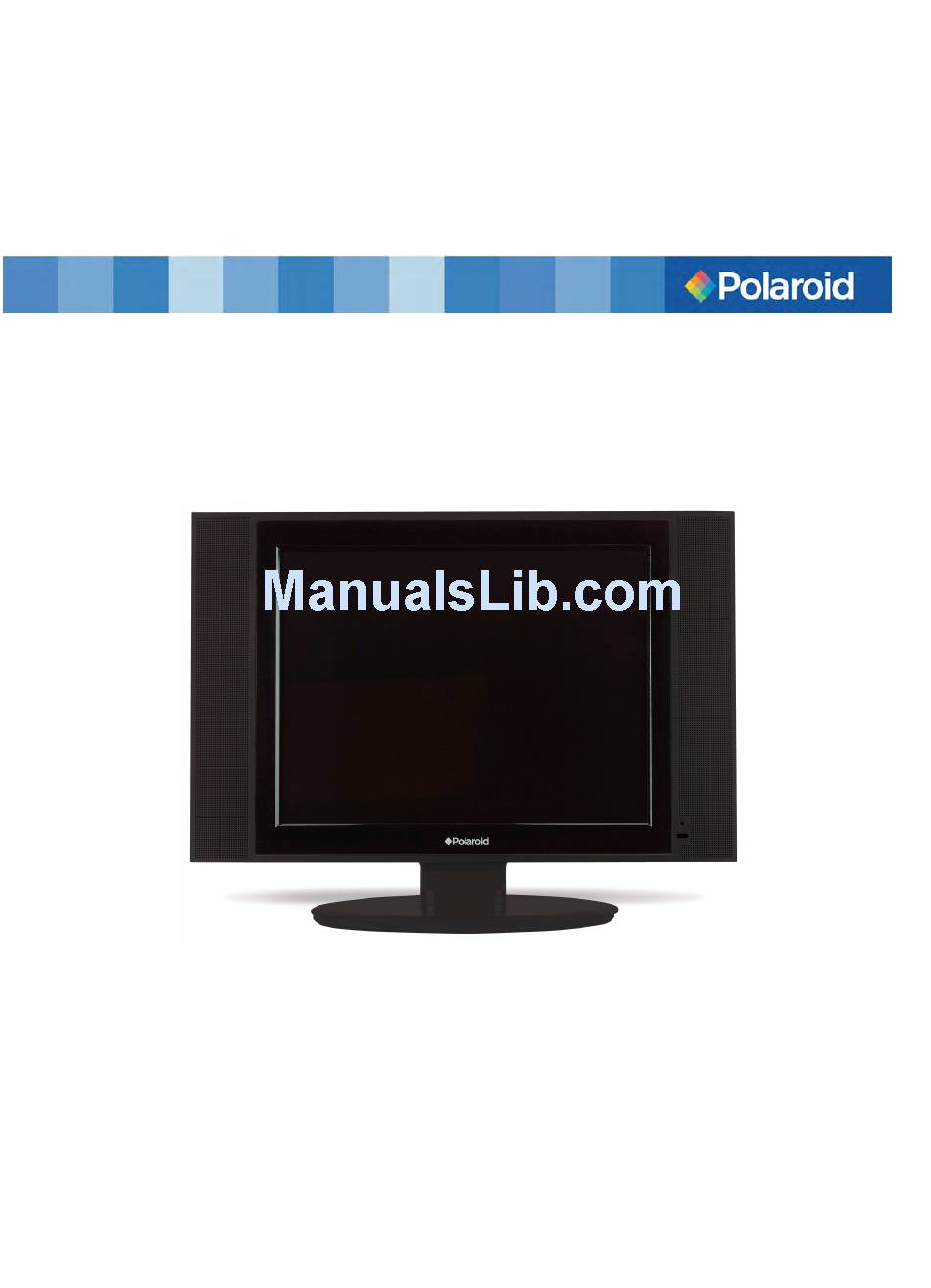

- Page 1 15"/ 38cm HD-Ready LCD Television FLA-1512B 20060508...
-
Page 2: Table Of Contents
INSTRUCTION MANUAL... 2 PACKING LIST... 4 GENERAL INTRODUCTION... 4 REMOTE CONTROL... 8 INSTALLATION ..9 GENERAL OPERATION ...9 FUNCTION INTRODUCTION...10 MENU OPERATION... 10 PICTURE ... 10 SOUND ... 10 SETUP ... 11 TUNE ... 12 CLOCK... 13 PC SETUP ... 13 OTHER FUNCTIONS ... -
Page 3: Instruction Manual
LCD TVs, portable and standard DVD players, digital cameras. And while our selection has changed, you’ll still receive the same friendly, helpful service. Congratulations on your new Polaroid LCD TV purchase. To ensure your new LCD TV provides you with years of enjoyment, please read this guide carefully. -
Page 4: Important Safety Instructions
Product Information Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numbers are located on the back of your LCD color television. -
Page 5: Packing List
PACKING LIST LCD TV Operation Manual Power Adapter AC Power Cable Infrared Remote Control Remote Control Battery Warranty Card Quick Start Guide AV Cable Note: Please keep the original box and packaging for transporting the set in the future. GENERAL INFORMATION Radio Frequency input;... - Page 6 Blue background with noise reduction In AV S-VIDEO and YPbPr modes, screen displays soft blue background if there is no signal input Multi Language On-Screen Display menu Text and graphical user interface makes the menu operation user-friendly Power Energy Saving Mode (Power management mode) When used as PC display terminal without PC signal output, the LCD TV will automatically power off within 30 seconds and enter Power Energy Saving Mode.
- Page 7 INTRODUCTION Front Panel The button names and functions are as follows: Panel buttons Button To switch between TV, AV, S-Video, YPbPr and PC signal sources. The same function as SOURCE on R/C (remote control) in menu SOURCE operation. To enter or quit from the OSD (On-Screen Display) menu. MENU The same function as MENU on R/C To decrease the sound volume.
- Page 8 Rear Panel Headphone Output Detail Illustration of Signal Input Ports...
-
Page 9: Remote Control
Remote Control Signal Source Switch Return to last viewed program Volume Down Show Info of Current Program Sleep Timer Note: 1. When in operation, point the remote control directly at the infrared sensor. 2. Do not subject the remote control to impacts, water or disassembly. 3. -
Page 10: Installation
INSTALLATION 1. Remove the LCD TV from the box and place it on a flat surface in a well-ventilated location. 2. Connect the output terminal of RF cable to the corresponding TV RF signal input terminal. The LCD TV is a high technology digital product, use quality RF cables to obtain optimal results. -
Page 11: Function Introduction
Menu Operation 1. Use the On Screen Display menu to set and adjust functions 2. Use 【CH+】/【CH-】 to select the desired menu after pressing【MENU】, then press 【VOL+】 / 【OK】 to enter the corresponding menu and use 【CH+】 / 【CH-】 to choose from the menu option; Use 【VOL+】/【VOL-】to adjust the options value and return to the previous menu by pressing 【MENU】again. -
Page 12: Setup
Ⅲ Setup ● Language To select the language displayed. ● Blue Back In this mode, a blue background will appear when there is no signal input. ● Program Lock In the submenu of Program Lock, the Enter Password menu appears (this menu will appear when you switch to a channel after it was locked once);. -
Page 13: Tune
● Prog. Swap (submenu) Swap between two programs and their channels. This can be done by pressing Switch button after two different channels are selected. ● Program Display the current program’s channel number ● Name Rename the program with four colored buttons on the remote control for Capitalized English letters 【1】... -
Page 14: Clock
● Color System To set the color system of the current program and use 【VOL+】/ 【VOL- 】 PAL, NTSC,N4.43, SECAM and Auto systems. ● Sound System To switch between B/G,D/K,I, and M sound systems. ● Skip Skipping the unwanted program can dramatically quicken program selection. 1. -
Page 15: Other Functions
● Auto Adjust To automatically adjust the picture position, clock, phase and color temperature to a preset optimum value. This mode is invalid in DOS mode. Note: The PC Setup menu is only available in the PC signal source. Other Functions ●... -
Page 16: Channel Changing
● Channel Switch Use the number buttons to choose the desired channel directly or press【CH+】/【CH-】 【CH+】/【CH-】 on the panel or number is in SKIP ON mode, the next channel will be displayed. A maximum of 3 digits can be keyed in at one time with the number button on the remote control. -
Page 17: Troubleshooting
TROUBLESHOOTING Before calling a technician, please check the following table to see if the below mentioned symptoms can be diagnosed and fixed. Symptoms No picture, no 1. The power cord is not plugged sound, and no indicator light 2. The power is off No picture, no sound, but the Functions of ON/OFF TIME and... -
Page 18: Specifications
Items Size (diagonal) Brightness Contrast Angle of View Speed Response LCD panel Lamp Life items Recommended Pixel Pitch Number of Dots Viewable Area Color Display Color System Sound System PC Qualified Input Format YPbPr Input Format Audio Output Consumption AV-Audio Input AV-Video Input Headphone Output Comb Filter...
