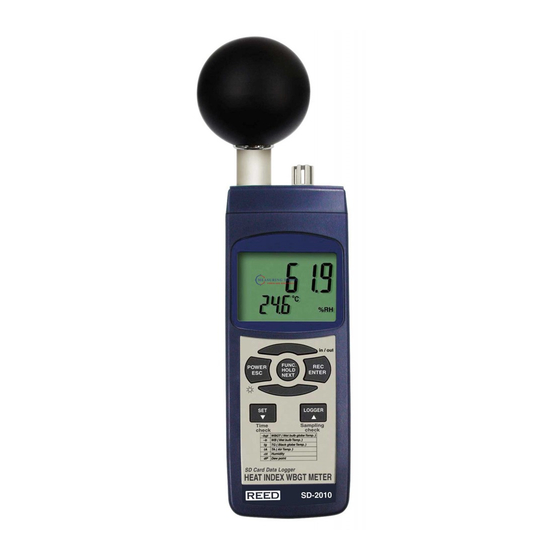

- Page 1 Rich Black - 20/20/20/100 SD-2010 Model Heat Stress Only if you REALLY need them: Meter and Datalogger Instruction Manual reedinstruments 1-877-849-2127 | info@reedinstruments.com www.reedinstruments.com...
-
Page 2: Table Of Contents
Table of Contents Features .................... 3 Specifications ................4-5 Instrument Description ..............6 Operating Instructions ..............7-11 Function selection ................7 WBGT Measurement ..............7 WB Measurement ................7 Dew Point Temperature Measurement ........... 8 TG Measurement ................8 Humidity and TA Measurement ............8 Data Hold .................. -
Page 3: Features
Features • Wet Bulb Globe Temperature (WBGT) considers the effects of tem- perature, humidity and direct or radiant sunlight • Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface • In/Out function displays the WBGT value with or without direct sun exposure •... -
Page 4: Specifications
Specifications Circuit: Custom microprocessor LSI circuit Display: 52mm x 38mm LCD with backlight Measurements: Indoor/Outdoor Wet Bulb Globe Temperature (WBGT), Black Globe Temperature (TG), Air Temperature (TA), Wet Bulb Temperature (WB), Humidity, Dew Point Temperature Temperature units: (°C, °F) Auto Sampling Time: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds Memory Card:... -
Page 5: Instrument Description
Indoor formula: 0.7WB + 0.3TG Indoor Range: 0°C - 59°C (32°F - 138°F) Indoor Accuracy: ±1°C (± 1.8°F) Outdoor formula: 0.7WB + 0.3TG + 0.1TA Outdoor Range: 0°C - 56°C (32°F - 132°F) Outdoor Accuracy: ±1.5°C (± 2.7°F) Air temperature (TA) Range: 0 - 50°C (32 - 122°F) Accuracy:... -
Page 6: Operating Instructions
10. USB/RS232 Output 1. Display 11. Reset Button 2. Power, ESC, & Backlight Button 12. AC/DC 9V Power Adapter Input 3. Hold, Function, & Next Button Socket 4. REC, Enter, & In/Outdoor Button 13. Battery Compartment/Cover 5. SET, Down, & Time Check Button 14. -
Page 7: Function Selection
Function selection 1) Turn on the meter by pressing the Power Button. To turn the meter off, hold the Power Button for over 2 seconds. 2) The meter has 5 measuring functions to choose from: WBGT, WB, Dew Point, measurements, TG, Humidity measurements, Air Temperature. -
Page 8: Tg Measurement
2) Function select to “dP”. The upper Display will show the Dew Point Temperature value. The lower Display will show the text “dP”. TG Measurement 1) Turn on the meter by pressing the Power Button. 2) Function select to “tg”. The upper Display will show the TG value. The lower Display will show the text “tg”. -
Page 9: Backlight On/Off
3) To exit the memory record function, press the REC button for 2 seconds. The display will revert to the current reading. Backlight ON/OFF After powering the meter ON, the LCD Backlight will turn on automati- cally. While taking measurements, press the Backlight Button and the LCD Backlight will turn off. -
Page 10: Manual Datalogger
ton once. While paused, the “REC” symbol will stop flashing. Press the Logger Button again to resume Datalogging, and the “REC” symbol will begin to flash again. 3) Stop Datalogging; while the Datalogger function is paused, press the REC Button for 2 seconds. The “REC” symbol will disappear indicating the Datalogging function has stopped. -
Page 11: Data Transfer From Sd Card To Computer
2) The first time you use the Datalogger, in the folder WBA01, a new file name WBA01001.XLS will be created. The Datalogger will use this file until the Data has reached to 30,000 rows. The meter will then will generate a new file with a subsequent number, for example WBA01002.XLS. -
Page 12: Set Clock Time
ton scroll through eight main functions, shown on the lower display: dAtE Set clock time (Year/Month/Date, Hour/Minute/Second) SET WBGT Alarm Value Set SD card Decimal character PoFF Auto power OFF management bEEP Set beeper sound ON/OFF t-CF Select the temperature unit to °C or °F SP-t Set sampling time (Hour/Minute/Second) Sd F... -
Page 13: Setting The Decimal Point On The Sd Card
2) Press the Enter Button to save the setting as the default. To exit “Advanced Settings”, press the Esc Button. Setting the Decimal point on the SD Card 1) When the lower display shows “dEC”, use the Up or Down Buttons to toggle between “bASIC”... -
Page 14: Set Sampling Time
ting as the default. To exit “Advanced Settings”, press the Esc Button. Set sampling time 1) When the lower display shows “SP-t”, use the Up or Down Buttons to adjust the value to either 0, 1, 2, 5, 10, 30,60, 120, 300, 600, 1800, or 3600 seconds. -
Page 15: System Reset
required to link the instrument with the PC serial input. Meter (3.5mm Jack Plug) PC (9W “D” Connector) Center Pin Pin 2 Ground/Shield Pin 5 The 16 digit data stream will be displayed in the following format: D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 End Word D1 to D4 Upper Display reading, D1= LSD, D4= MSB... -
Page 16: Com
(UM3, AA, Alkaline/heavy duty) 4) Make sure the battery cover is properly secured after changing the battery For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5... - Page 17 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 34 Blue Yellow - 0/27/100/0 23 Yellow ________________________________________________ Red - 10/100/100/5 85 Red Yellow - 0/27/100/0 23 Yellow Blue - 100/80/30/5 34 Blue 1-877-849-2127 | info@reedinstruments.com reedinstruments...
