Plantronics CS55 Series Setup Manual

Headset system
Hide thumbs Also See for CS55 Series:

Advertisement

Table of Contents

See also: User Manual

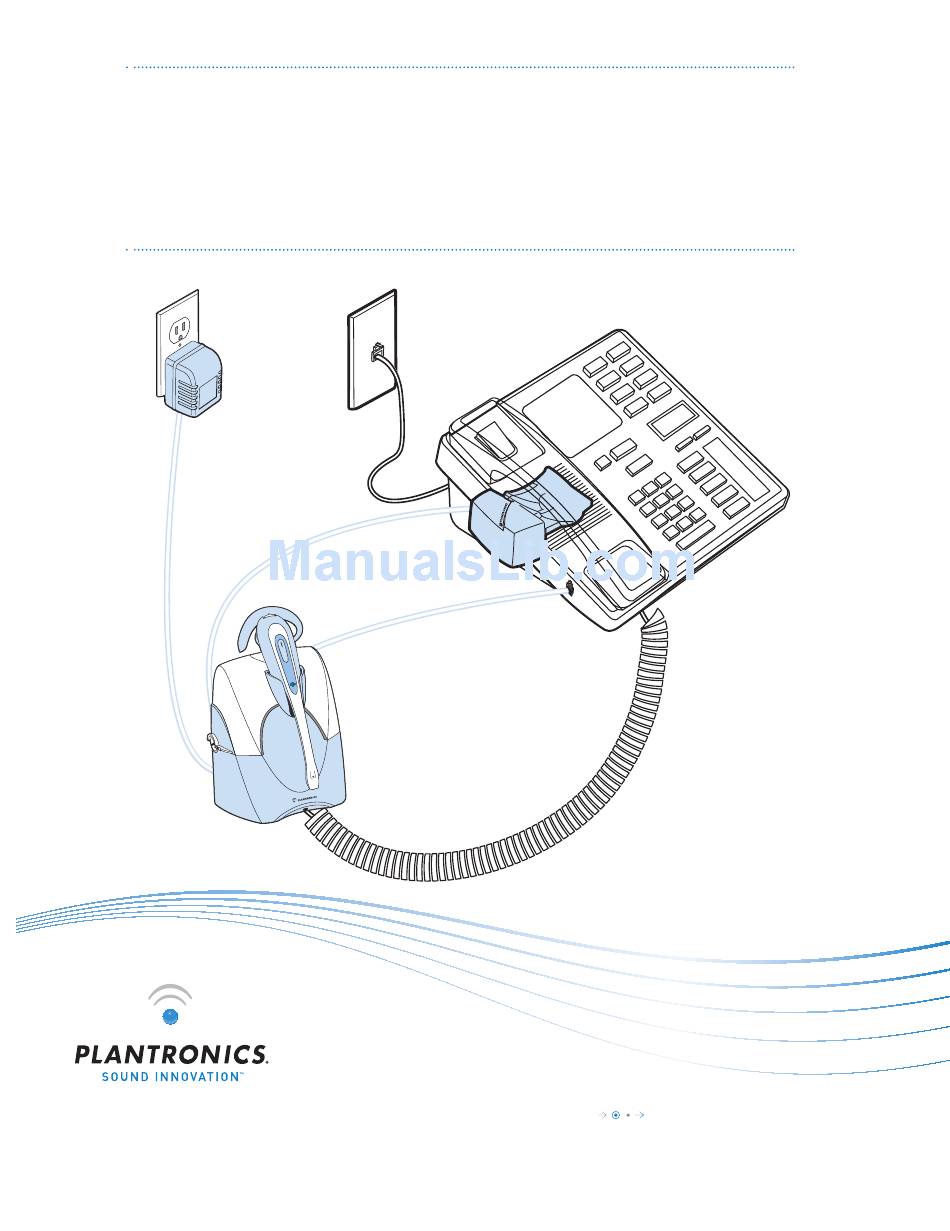

4 Easy Steps
The fastest way to setup your
™
CS55
Headset System
Base Power
Adapter
CS55
Headset Base
HL10
Automatic
Handset Lifter*
CS55 Headset
with Earloop
*Not included in all confi gurations
CS55 Series
S
E T U P
G
U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS55 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Plantronics CS55 Series

Summary of Contents for Plantronics CS55 Series

  • Page 1 The fastest way to setup your ™ CS55 Headset System Base Power Adapter CS55 Headset with Earloop CS55 Headset Base HL10 Automatic Handset Lifter* *Not included in all confi gurations CS55 Series E T U P U I D E...

  • Page 2: Ackage Contents

    Handset Lifter *Automatic Handset Lifter is bundled with certain CS55 confi gurations and also available separately. HL10 Additional Parts Kit (if needed) Extender Plantronics CS55 Setup Guide ONTENTS 4 Easy Steps The fastest way to setup your CS55 Headset System...
  • Page 3 TTACH EADBAND OR & A DJUST FIT Snap the speaker of the headset into the retaining ring of the headband or one of the three ear loops provided. See below. Ear Loop Headband If you will be wearing the headband, adjust the band for the most comfortable fi t. See 1 below.

  • Page 4: Connect Base To Desk Phone

    You will use the Automatic Handset Lifter or… Your phone has NO built-in headset functionality (no Headset button). Confi guration A Handset Coil Cord Plantronics CS55 Setup Guide ASE TO HONE Unplug the handset coil cord from the desk phone handset port [A], then plug it...
  • Page 5 Use Confi guration B if: You will NOT use the Automatic Handset Lifter and… Your phone has built-in headset functionality (a Headset button). Confi guration B 1. Plug the short BLACK Phone Cable that is pre-installed on the Headset Base into the Headset port [C] on the desk phone.
  • Page 6 . Gently push the headset into the charging cradle as shown below. The light on the base will fl ash to indicate the headset battery is charging. A solid light indicates full charge. A full charge will take approximately 3 hours. Power Plantronics CS55 Setup Guide OWER AND HARGE Insert into connection on Headset Base as shown to charge.
  • Page 7 NSTALL UTOMATIC Why use a handset lifter? a headset with your desk phone. It lets you answer and end calls without being near your phone. The HL10 Automatic Handset lifter is included with certain CS55 confi gurations and is also available separately. A.
  • Page 8 Extender Arm to the Lifter as described in the HL10 Additional Parts Kit. Plantronics CS55 Setup Guide Handset Lifter Arm Start with Lifter Height Switch in...
  • Page 9 Confi guration Dial. Using a coin or paperclip, turn the Confi guration Dial to a diff erent setting until you hear a dial tone. To view an interactive quick start guide online, visit www.plantronics.com/CS55. Multiple settings might work with your phone; however, only one is the optimal position.

  • Page 10: Powering Up The Headset

    1. Press Call Control Button 2. Dial number To answer a call 1. Press Call Control Button To end a call 1. Press Call Control Button Plantronics CS55 Setup Guide CS55 H EADSET button Listening Volume and Mute Button Call Control...
  • Page 11 Position A = Softest Position D = Loudest Congratulations! You have successfully set up your CS55 Series Headset System. To begin using your Headset System or help with service, support, or warranty information, please continue with the next several pages.
  • Page 12 In either the up or down position, placing the headset in charging cradle will end the call. If the sound quality is poor or background noise is evident after these adjustments readjust the confi guration dial for better quality. Plantronics CS55 Setup Guide Speaking Volume Minor Adjustment Control...

  • Page 13: Indicator Lights

    CS55 L IGHTS AND Indicator Lights Tones Out of Range Warning: If you are on a call and walk out of range of the base, your headset will issue audible tones at its operating limit. If you are on a call, you will hear two tones when reaching edge of range, and again when back in range.

  • Page 14: Subscription

    2. Press the call control button again. The talk indicator light will again blink briefl y to indicate the headset is back to normal operation. 3. Disconnect the AC charger from the AC charging jack for 5 seconds. 4. Reconnect. The system reset operation is complete. Plantronics CS55 Setup Guide...

  • Page 15: Common Questions

    Plug the power adapter into the wall directly. Talk time performance is signifi cantly degraded even after a full recharge. • Battery is wearing out. Call Plantronics at (800) 544-4660 Ext. 5538 for factory service information. The Handset lifter is installed but does not lift the handset.

  • Page 16: Still Having Problems

    PST, except major U.S. holidays): 800-544-4660 Ext. 5538 © 2007 Plantronics, Inc. All rights reserved. Plantronics, the logo design, CS55, IntelliStand, and Sound Innovation are trade- marks or registered trademarks of Plantronics, Inc. All other trademarks are the property of their respective owners.
