Plantronics Vista M22 User Manual

Universal modular amplifier
Hide thumbs Also See for Vista M22:
Table of Contents

Advertisement

Quick Links

See also: User Manual
VISTA
M22
TM
UNIVERSAL MODULAR AMPLIFIER
USER GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Plantronics Vista M22

Summary of Contents for Plantronics Vista M22

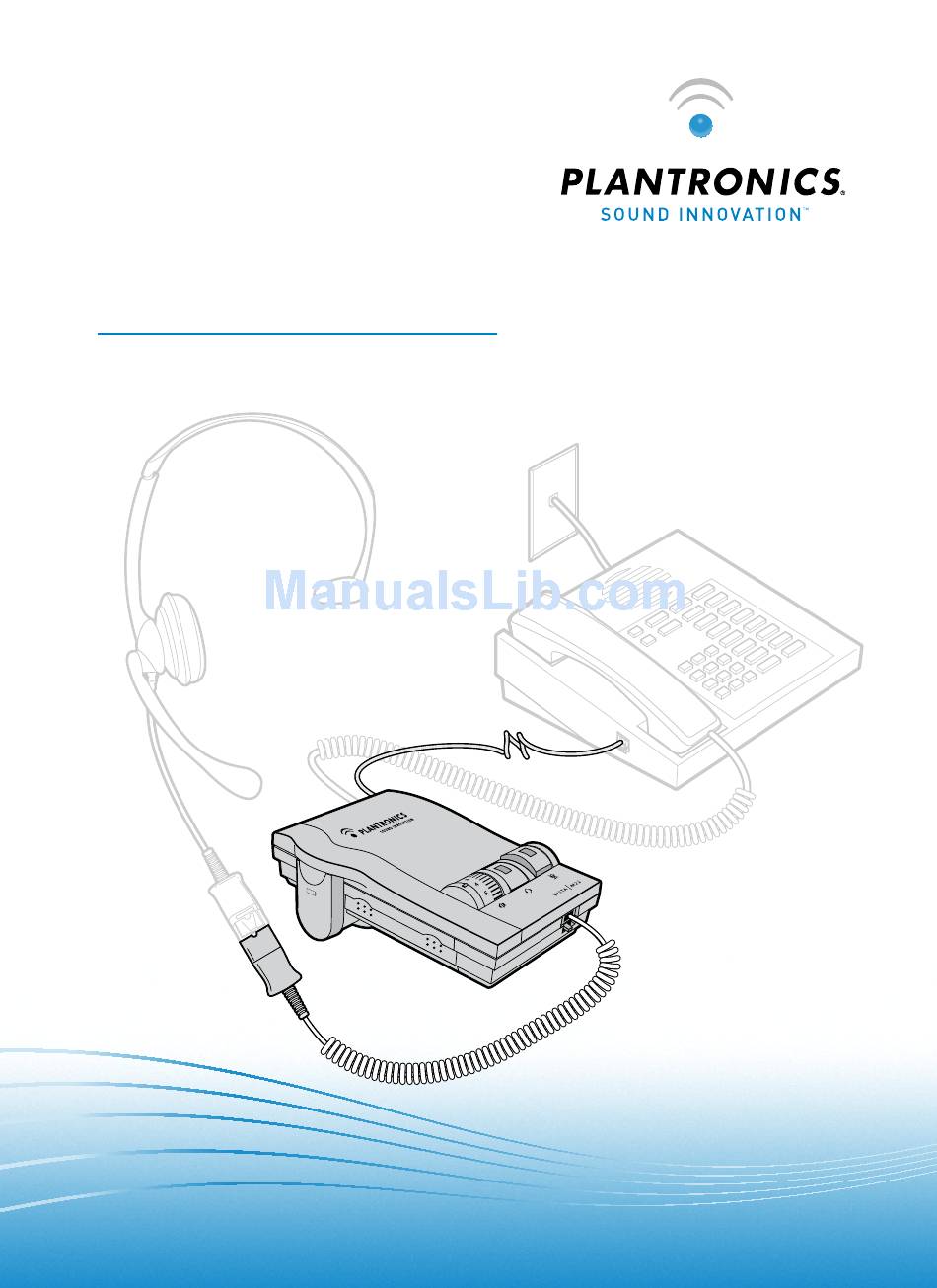

  • Page 1 VISTA UNIVERSAL MODULAR AMPLIFIER USER GUIDE...

  • Page 2: Welcome

    Plantronics headset and provides control of the sound through your headset. The Vista M22 Amplifier has built- in sound conditioning and protection. The Vista M22 Amplifier is not designed to work with tele- phones that have the dial pad in the handset or with cordless telephones.

  • Page 3: Table Of Contents

    Vista M22 setting up the Vista M22 Installing the Batteries Attaching the Vista M22 to Your Telephone and Headset Configuring the Vista M22 to Your Telephone using the Vista M22 and your Making and Receiving Calls with Your Headset...

  • Page 4: Important Safety Information - Read First Battery Safety

    IMPORTANT SAFETY INFORMATION WarninG: To reduce the risk of fire or injury to persons, read and follow these instructions. This product is not a toy, never allow children to play with the • product. Small parts may be a choking hazard. Unplug the product from the wall outlet before cleaning.

  • Page 5: Ac Adapter Safety

    If the AC Adapter is used, this product is intended to be • supplied by a Listed Class 2 Direct Plug-In Power Unit, Plantronics Part No. 26503-01, rated at an input voltage of 120 VAC, 60 Hz and an output voltage of 9 VDC at 800mA.

  • Page 6: Components Of The Vista M22

    COMPONENTS OF THE VISTA ™ TOP/FRONT VIEW Short Telephone Cord Battery Compartment Telephone Compatibility Switch Battery Access Door AA Alkaline Batteries BOTTOM/REAR VIEW Plastic Screwdriver Handset Jack Listening Volume Thumbwheel Headset/Handset Button Speaking Volume Cover Control AC Power Adapter Jack Mute Button Quick Disconnect...

  • Page 7: Setting Up The Vista M22

    SETTING UP THE VISTA M22 INstaLLING tHe BatterIes Install the two AA batteries in the Battery Compartment matching the + and – symbols inside the compartment. Install the Battery Cover by sliding the cover up into place. You will hear three “beeps” through the headset when the note: batteries are low.

  • Page 8: Configuring The Vista M22 To Your Telephone

    4. Return the Plastic Screwdriver to its storage place. 5. Install the Cover by inserting the cover prongs into the slots on the Vista M22. Place your thumbs on the raised bumps. Press the Cover down and then push it up into place.

  • Page 9: Using The Vista M22 And Your

    USING THE VISTA M22 and YOUR HEADSET MaKING aND reCeIVING CaLLs WItH YOur HeaDset Press the Headset/Handset Button (green). To make a call while wearing the headset. Lift the handset • from the telephone. Listen for a dial tone and dial.

  • Page 10: Adjusting The Volume For Calls

    To adjust your listening volume, rotate the Listening Volume Thumbwheel from 1 (quietest) to 9 (loudest). To adjust your speaking volume, remove the Cover from the Vista M22. 1. Use the Plastic Screwdriver to adjust the Speaking Volume Control. Turn the control •...

  • Page 11: Making And Receiving Calls With Your Headset

    MutING a CaLL To turn on the mute, press the Mute Button to show the green indicator. To turn off the mute, press the Mute Button again. MaKING aND reCeIVING CaLLs WItH tHe HaNDset To turn off the headset, press the Handset/Headset Button to show the black indicator.

  • Page 12: Using The Optional Ac Power Adapter

    Using the AC Power Adapter is recommended for uninterrupted operation. 1. Remove the batteries from the Battery Compartment. 2. Connect the AC Power Adapter to the AC Power Adapter Jack on the Vista M22. 3. Plug the AC Power Adapter into your power source. (not supplied)

  • Page 13: Warranty And Service

    This warranty covers defects in materials and workmanship • of Commercial Products manufactured, sold or certified by Plantronics which were purchased and used in the United States and Canada. This warranty lasts for two years from the date of purchase •...

  • Page 14: Regulatory Information

    FCC REQUIREMENTS This equipment complies with Part 68 of the FCC rules and the requirements adopted by ACTA. On the exterior of this equipment is a label that contains a product identifier in the format US:AAAEQ##TXXXX. If requested, this information must be provided to your telephone company.
  • Page 15 the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment.
  • Page 16 345 ENCINAL STREET I SANTA CRUZ, CA 95060 USA I PHONE: 800 544 4660 © 1998-2006 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Sound Innovation, Quick Disconnect, and Vista are trademarks or registered trademarks of Plantronics, Inc.
