User Manual
PLEXTALK
PLEXTALK POCKET : Pocket Guide
PLEXTALK

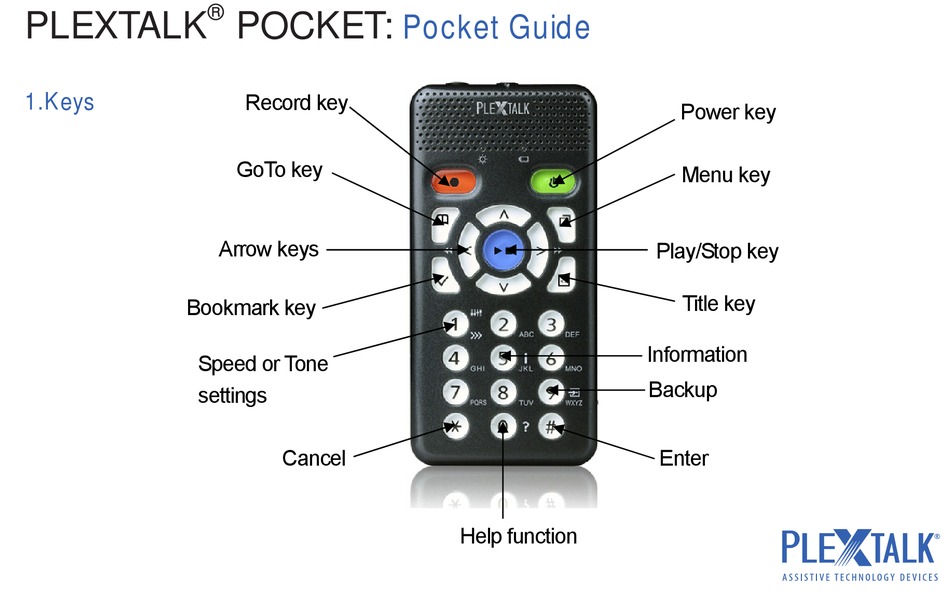

1. Keys
1.Keys
1.Keys
Bookmark key
Speed or Tone
settings
®
POCKET:
®
POCKET:
Record key
GoTo key
Arrow keys
Cancel
Pocket Guide
Pocket Guide
Help function
Power key
Menu key
Play/Stop key
Title key
Information
Backup
Enter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Plextalk PTP1
Summary of Contents for Plextalk PTP1
- Page 1 ® PLEXTALK POCKET: PLEXTALK POCKET : Pocket Guide Pocket Guide ® PLEXTALK POCKET: Pocket Guide 1. Keys 1.Keys 1.Keys Record key Power key GoTo key Menu key Arrow keys Play/Stop key Title key Bookmark key Information Speed or Tone Backup...
-
Page 2: Key Description
2. Description of the PLEXTALK Pocket • Speaker and microphone are at the top front. • Below the speaker and microphone at the right side is the power key and on the left side the record key. • In the middle of the device is the play/stop key surrounded by the navigation keys and, on the outer side, with function keys. - Page 3 Play/Stop Key: To start and stop the playback and also to confirm entries in the menu option. Arrow Keys: To select the level, use the up and down key. Once the level is determined, use the left or right key to select. Example: In a DAISY book, select a page level by using the up or down key, i.e.
- Page 4 Numeric Keypads Speed Setting: Press the 1 key once to set the speed, then the up or down key to increase or decrease the reading speed. Tone Setting: Press the 1 key twice to set the tone, then the up or down key to increase or decrease the tone. Information: With the 5 key, you can get information about the battery, current title and so on.
- Page 5 4. Examples To play a DAISY book from the SD card • Insert the SD card into the Pocket. • Press the Play/Stop key and the book starts to play. • If you want to play another DAISY book in the SD card, press the Title key and select the title by the left or right key.
- Page 6 To record a voice (class, conference, etc.) • Press the Record key briefly. This is the test recording mode. • You can set the recording parameters by use of the menu. To start with the default setting, press the Record key again. The sound is recorded on the SD card. •...
-
Page 7: Menu Hierarchy
5. Menu Hierarchy EDIT: PLAYBACK SETTINGS MEDIA MANAGEMENT: (DAISY and Text) Media title information Set heading Shuffle and repeat settings Cancel heading Standard play Delete SD card Create a new title Remove section Repeat title Reading audio file name Delete the selected title (album) Prepare for editing Read audio file name Read audio track number...
