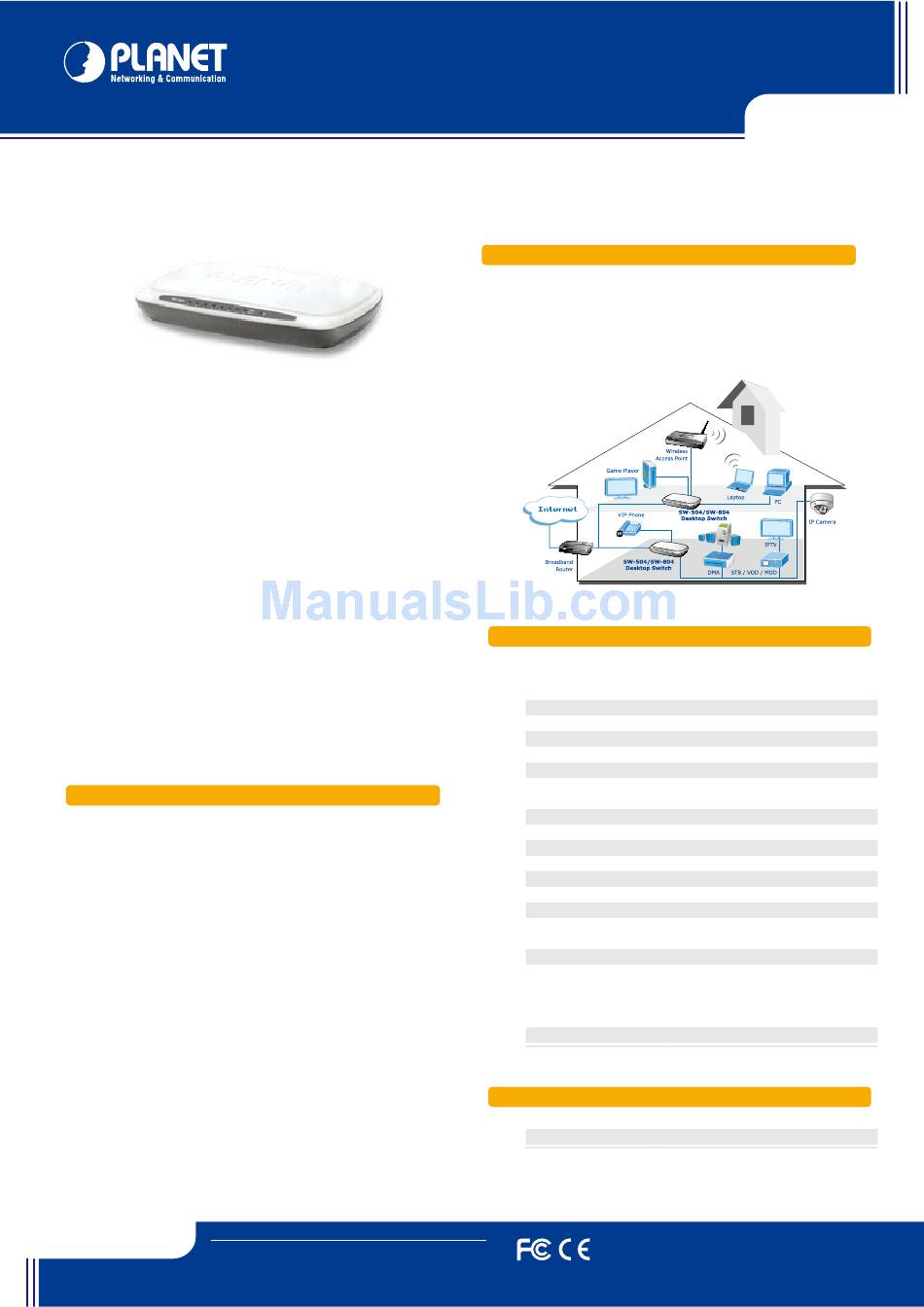

Planet SW-804 Datasheet

8-Port 10/100Mbps Desktop Fast Ethernet Switch
W
ith concepts of "Easy to Install and use", "Compact-sized design",
and "Simple troubleshooting", PLANET SW-804 provides cost-conscious
business and home users with the foundation of an integrated system
of small-office / home-office networking. The SW-804 is the fancy-shape
plastic model and just right for your network of 10 to 50 users.
The SW-804 Desktop Fast Ethernet Switch is simple, cost-effective and
offers high reliable network . And it is the ideal device for bridging
Ethernet to Fast Ethernet workgroups or networks. Therefore, the PLANET
SW-804 Switch will be recognized as one of the most important building
blocks for today networking technology.
To segment the network and ease the network traffic, the 8-Port
10/100Mbps is useful for the SOHO switched networks as the friendly
network backbone. With providing array LED indicators, the network
status can be monitored at a glance.
Key Features
• 8-Port 10/100Mbps TP interfaces
• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• IEEE 802.3x flow control for full duplex operation and
Backpressure for half duplex operation
• Features Store-and-Forward mode with wire-speed filtering and
forwarding rates
• Supports 1K absolute MAC address
• Supports to handle up to 1552bytes packet
• Automatic address learning and address aging
• Supports Automatic MDI / MDI-X function
• Full / Half-Duplex capability on each TX port
• LED indicators for simple diagnostics and management
• FCC Class B, CE compliant
Data Sheet
1
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: sales@planet.com.tw www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
Applications
Home Use / SOHO Switch
With 8 10/100Mbps ports, the SW-804 provide a cost-effective
and high-performance solution for Home / SOHO use. In
multiple applications, the advanced functionality of the SW-804
eliminates the traditional issues associated with Ethernet.
Specification
8-Port 10/100Mbps Desktop Fast
Product
Ethernet Switch
Model SW-804
Hardware Specification
Network Connector 8-Port RJ-45 for 10/100Base-TX
Switch Throughput 1.19Mpps
Switch Fabric 1.6Gbps
1K MAC address table with Auto learning
MAC Address
function
Shared Buffer 768K
Power Requirement 9V DC, 700mA
Operating Environment 0~50 Degree C, 5%~95% RH
Storage Environment -20~70 Degree C, 5%~95% RH
Dimension (W x D x H) 184 × 110 × 30 mm
Switch Specification
Switch Architecture Store-and-Forward
IEEE 802.3x full duplex operating and flow
Flow Control
control
Standard Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
Network Standard
IEEE 802.3x Flow Control and Back
pressure
EMI
FCC Class B, CE
Ordering Information
SW-804 8-Port 10/100Mbps Desktop Fast Ethernet Switch
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2008 PLANET Technology Corp. All rights reserved.
