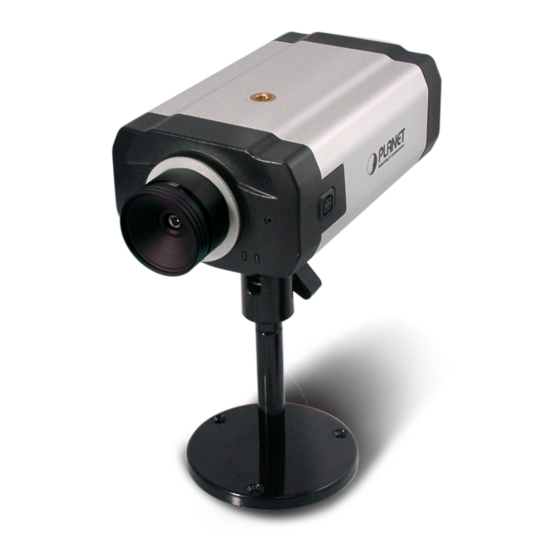

Planet ICA-750 Specifications

Dual Mode CCD Box Internet Camera
E
quipped with MPEG-4 and M-JPEG video streaming, the PLANET ICA-750
is a Dual Mode CCD Box Internet Camera which is designed for
professional security and high-quality video / audio requirement. The
manual Day / Night switch with ICR (IR-cut filter Removable), CS-Mount
optical lens and PoE (Power over Ethernet) features provides the most
flexibility of IP surveillance.
PLANET ICA-750 supports 2-Way audio that can directly make audio
communication between local and remote side by using the built-in
microphone and adding an external speaker. Besides web browsers, the
ICA-750 also provides 3GPP capability which can let the administrators
remotely view the live video via a 3G mobile phone. With DI / DO ports,
users are allowed to connect external sensors or alarm devices to improve
the security system with more advanced function.
The professional management software - PLANET Cam Viewer, is a
multi-camera video surveillance application which can handle ICA-750 to
provide monitoring, recording and event management functions. That
offers you to setup a comprehensive and effective surveillance system
quickly and easily. ICA-750 is an all-functioned network camera and
suitable for many occasions that could express high-quality video / audio to
everywhere in the world. It can provide a real professional security
environment to protect your property and your life.

Data Sheet

1
Key Feature
• Day / Night Switch with ICR (IR-cut filter removable)
• MPEG-4 and M-JPEG dual codec
• 2-Way Audio supported
• 3GPP for 3G mobile remote application
• Provides 4 Motion Detection area
• E-mail Alert by motion detection and input I/O
• Up to 30 fps for all resolution
• Built-in microphone and external microphone / speaker
• PoE (IEEE 802.3af) supported
• User definable HTTP and HTTPS port number
• External I/O trigger for various surveillance applications
• Cam Viewer, Central management software supported Application
ICA-750
