Check Delta Time
Measurement Accuracy
80
This test checks the Delta-time measurement accuracy (DTA) for a given
instrument setting and input signal.

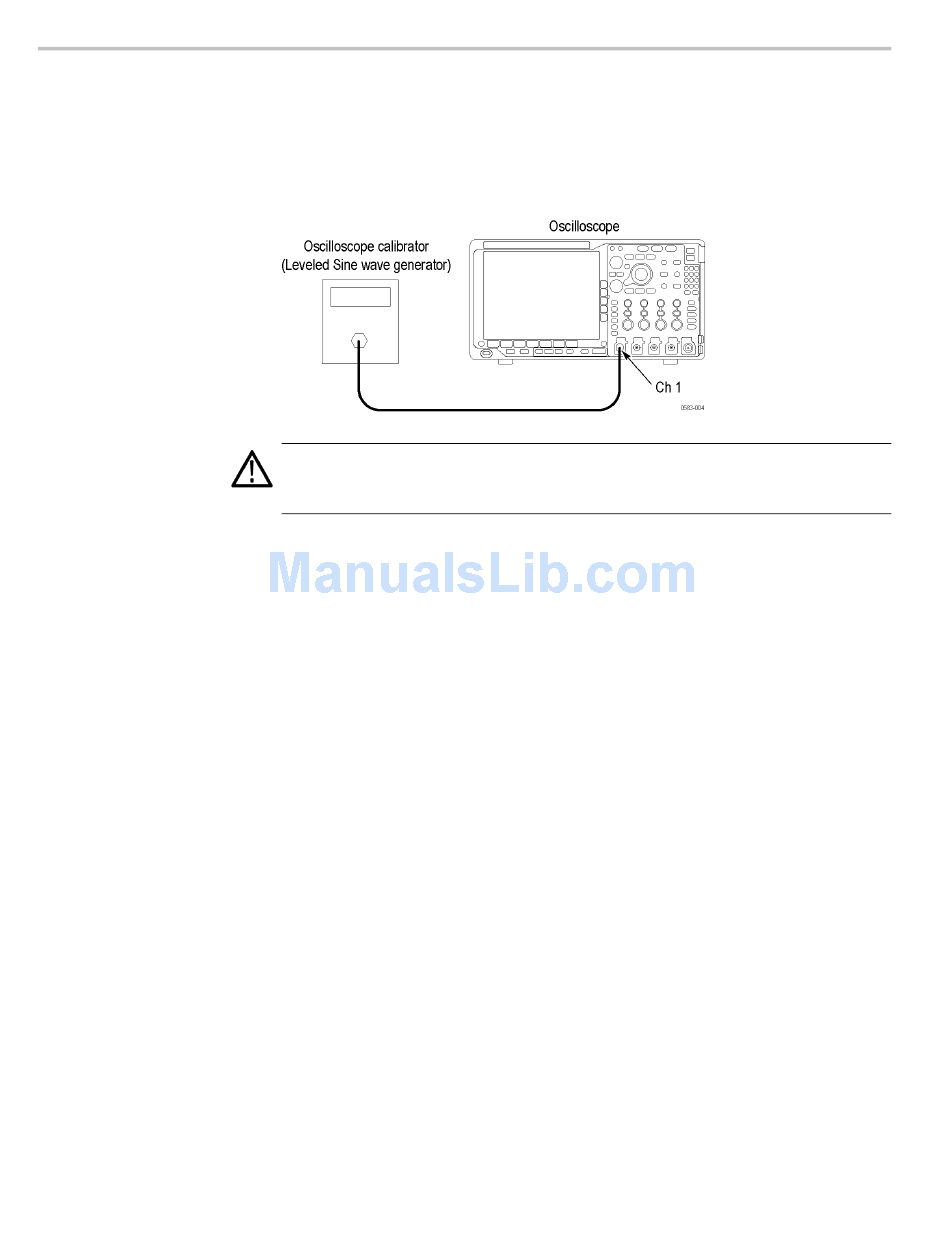

Connect a 50 Ω coaxial cable from the signal source to the oscilloscope channel 1,
as shown in the following illustration.
WARNING.
The generator is capable of providing dangerous voltages. Be sure to
set the generator to off or 0 volts before connecting, disconnecting, and/or moving
the test hookup during the performance of this procedure.
2. Push the oscilloscope front-panel Default Setup button.
3. Select 50 Ω impedance as follows:
a. Set the sine wave generator output impedance to 50 Ω.
b. Push the channel 1 button to display the channel 1 menu.
c. Set the Termination (input impedance) to 50 Ω.
4. Set the trigger source to channel 1 as follows:
a. Push the Trigger Menu button.
b. Push the Source lower-bezel button (if not already selected).
c. Select channel 1 (if not already selected).
5. Set the Mean & St Dev Samples to 100 as follows:
a. Push the Wave Inspector Measure button.
b. Push the bottom-bezel Add Measurement button.
c. Select the Burst Width measurement.
d. Push the side-bezel OK Add Measurement button.
e. Push the bottom-bezel More button to select Statistics.
f. Set the Mean & Std Dev Samples to 100, as shown in the side menu.
