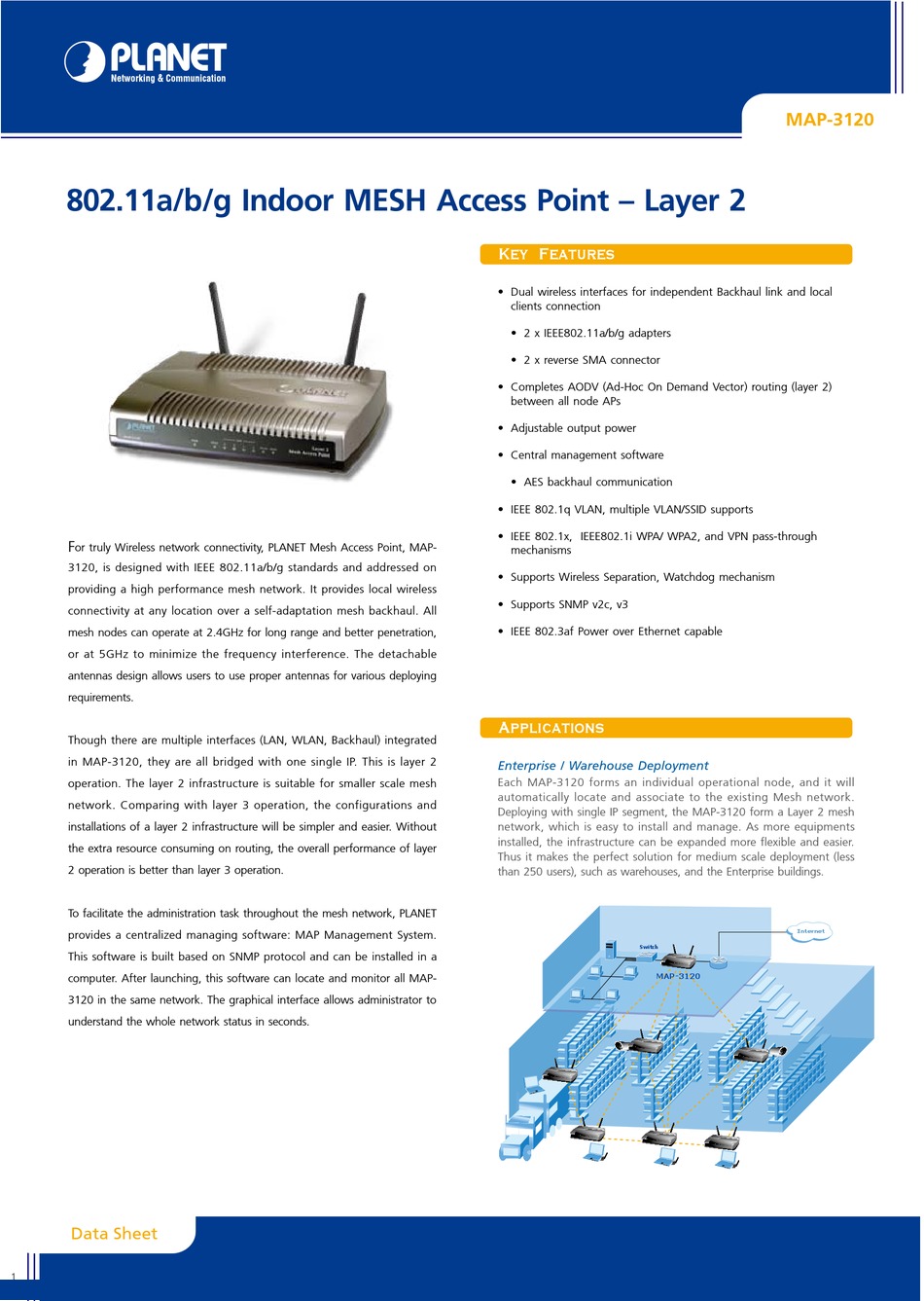

Planet MAP-3120 Specifications

802.11a/b/g Indoor MESH Access Point – Layer 2
F
or truly Wireless network connectivity, PLANET Mesh Access Point, MAP-
3120, is designed with IEEE 802.11a/b/g standards and addressed on
providing a high performance mesh network. It provides local wireless
connectivity at any location over a self-adaptation mesh backhaul. All
mesh nodes can operate at 2.4GHz for long range and better penetration,
or at 5GHz to minimize the frequency interference. The detachable
antennas design allows users to use proper antennas for various deploying
requirements.
Though there are multiple interfaces (LAN, WLAN, Backhaul) integrated
in MAP-3120, they are all bridged with one single IP. This is layer 2
operation. The layer 2 infrastructure is suitable for smaller scale mesh
network. Comparing with layer 3 operation, the configurations and
installations of a layer 2 infrastructure will be simpler and easier. Without
the extra resource consuming on routing, the overall performance of layer
2 operation is better than layer 3 operation.
To facilitate the administration task throughout the mesh network, PLANET
provides a centralized managing software: MAP Management System.
This software is built based on SNMP protocol and can be installed in a
computer. After launching, this software can locate and monitor all MAP-
3120 in the same network. The graphical interface allows administrator to
understand the whole network status in seconds.

Data Sheet

1
Key Features
• Dual wireless interfaces for independent Backhaul link and local
clients connection
• 2 x IEEE802.11a/b/g adapters
• 2 x reverse SMA connector
• Completes AODV (Ad-Hoc On Demand Vector) routing (layer 2)
between all node APs
• Adjustable output power
• Central management software
• AES backhaul communication
• IEEE 802.1q VLAN, multiple VLAN/SSID supports
• IEEE 802.1x, IEEE802.1i WPA/ WPA2, and VPN pass-through
mechanisms
• Supports Wireless Separation, Watchdog mechanism
• Supports SNMP v2c, v3
• IEEE 802.3af Power over Ethernet capable
Applications
Enterprise / Warehouse Deployment
Each MAP-3120 forms an individual operational node, and it will
automatically locate and associate to the existing Mesh network.
Deploying with single IP segment, the MAP-3120 form a Layer 2 mesh
network, which is easy to install and manage. As more equipments
installed, the infrastructure can be expanded more flexible and easier.
Thus it makes the perfect solution for medium scale deployment (less
than 250 users), such as warehouses, and the Enterprise buildings.
Switch
MAP-3120
MAP-3120
Internet
