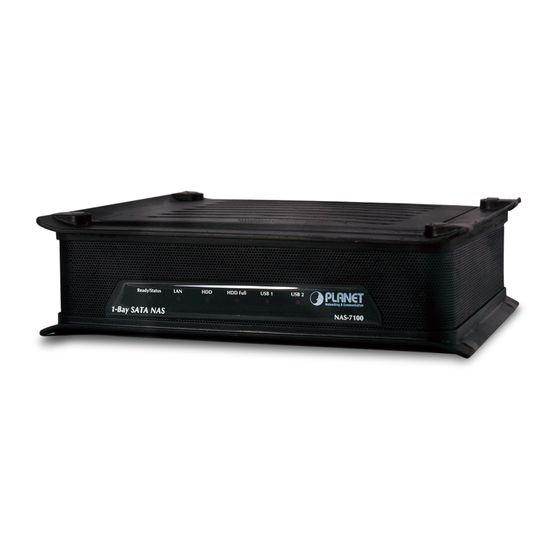

Planet 1-Bay SATA NAS Server NAS-7100 Quick Installation Manual
  1. Manuals
  2. Brands
  3. Planet Manuals
  4. Server
  5. 1-Bay SATA NAS Server NAS-7100
  6. Quick installation manual

Planet 1-Bay SATA NAS Server NAS-7100 Quick Installation Manual

1-bay sata nas server
Hide thumbs Also See for 1-Bay SATA NAS Server NAS-7100:
Table of Contents

Advertisement

Quick Links

Download this manual
1-Bay SATA NAS Server
NAS-7100
Quick Installation Guide
Version:1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1-Bay SATA NAS Server NAS-7100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet 1-Bay SATA NAS Server NAS-7100

Summary of Contents for Planet 1-Bay SATA NAS Server NAS-7100

  • Page 1 1-Bay SATA NAS Server NAS-7100 Quick Installation Guide Version:1.0...

  • Page 2: Table Of Contents

    System... 4 Package.Contents... 4 System.Requirements... 4 Front.Panel... 4 Rear.Panel... 4 HDD.Install/Remove..5 HDD.Install..5 HDD.Remove... 5 System.Installation... 6 Boot.up... 6 Shutdown... 6 Removing.a.USB.device... 6 Configuration..7 Quick.Setup.with.the.NAS.Wizard... 7 Using.Your.NAS-7100..11 To.Use.the.NAS.storage...11 Mapping.a.Network.Drive...11 Using.the.Web.Interface..11 To.connect.to.the.NAS.with.your.Web.Browser...11 Other Configuration...12 Table of Contents...
  • Page 3 Thank. you. for. purchasing. PLANET. 1-Bay. SATA. NAS. Server,. NAS-7100.. In. this. installation. guide,. it. illustrates. the. simply. installation. for. user. to. install. a. HDD. and. install. NAS-7100. to. Windows. system.. For. more. information,. please. also. refer. to. the.User’s.manual.in.our.CD-ROM.

  • Page 4: System

    System Package Contents The.following.items.should.be.included.in.the.NAS65.packaging. If. any. of. these. items. are. damaged. or. missing,. please. contact. your. dealer. for. replacements. •. NAS-7100 •. Quick.Installation.Guide •. Setup.CD •. Ethernet.Cable. •. Power.Adapter.with.Power.Core System Requirements •. Windows.95,.98,.ME,.NT.4.0,.2000/2003,.XP.or.Vista. •. Ethernet.Network.employing.10BaseT,.100BaseTX.or.1000BaseT. •. TCP/IP.protocol. Front Panel Rear Panel...

  • Page 5: Hdd.install/Remove

    HDD Install/Remove The.NAS-7100.supports.one.3.5-inch.Serial-ATA.(SATA).hard.drive..NAS-7100.does. not support low profile or half high hard drive. HDD Install 1..Make.sure.the.NAS-7100.is.powered.off 2..Open.top.cover.of.NAS-7100 3..Make.sure.your.hard.drive.is.SATA.interface.and.make.sure.you.back.up.all.pre- existing.data.before.use.it.on.NAS-7100 4..Pull.up.the.HDD.tray.then.slide.and.push.the.HDD.into.the.tray,.make.sure.con- nector.well.connecting 5..Push.down.the.HDD.tray 6. Put the top cover of NAS-7100 back to finish HDD install HDD Remove 1..Make.sure.the.NAS-7100.is.power.off. 2..Open.top.cover.of.NAS-7100 3..Pull.up.the.HDD.tray, 4..Pull. out. the. HDD. till. SATA. connector. release. then. the. HDD. can. slide. out. of. HDD. tray ...

  • Page 6: System.installation

    System Installation Boot up 1..Connect. the. network. cable. to. LAN. port. on. the. rear. of. NAS-7100.. Connect. the. others.end.to.your.hub.or.switch. 2..Connect. the. supplied. power. adapter. to. a. power. outlet. and. plug. the. power. cord. into.NAS-7100’s.power.input.on.the.rear.panel. 3..Power.on. . Locate. the. NAS-7100’s. power. switch. on. the. NAS-7100. real. panel.. Press. it. once. to.power.on.the.NAS 4..The.NAS-7100.self-test.

  • Page 7: Configuration

    Configuration •. This.procedure.only.needs.to.be.done.ONCE,.by.the.NAS-7100’s.Administrator. •. Other. LAN. users. should. follow. the. advice. given. in. using. your. NAS. described. in. the.following.section. Quick Setup with the NAS Wizard 1..Please. insert. User’s. Manual. and. Utility. CD. into. the. CD-ROM. drive. to. initiate. the. autorun.program..Once.completed.a.menu.screen.will.appear. 2..Click.
  • Page 8 A. list. of. all. the. NAS-7100s. on. your. network. will. show. on. the. left. side.. The. right. side.displays.details.of.the.currently.selected.NAS-7100.. If.the.desired.NAS-7100.is.not.listed,.check.the.following: • The NAS-7100 has finished the start up and boot process. •. Your.PC.and.the.NAS-7100.are.on.the.same.IP.segment. •. Click.“Refresh”.button.to.search.again. Otherwise,.select.the.desired.NAS-7100,.and.click.the."Next".button. 4..The. following. screen. will. then. be. displayed.. You. can. set. the. IP. settings. in. this. screen.
  • Page 9 5. You can configure the time settings in this screen. Please click “Next” after the configured. Server Name Workgroup Name Time Zone Local Date/Time 6. Please check the configured settings of this screen, if all the configure are cor- rect..Please.click.“Save”.button.. The.Default.Name.is.shown..You.may.change.this.if.
  • Page 10 7..After. click. "Save",. you. will. see. the. dialog. box. to. prompt. you. again.. Please. click. “OK”.to.save.or.click.“Cancel.to.check.the.settings.. 8..If. you. would. like. to. install. “Flash-Map”. to. helps. you. to. mapping. NAS-7100. now,. please. click. “Yes”. and. refer. to. the. manual. in. our. bundled. CD. disk,. otherwise,. please click “No”...

  • Page 11: Using.your.nas-7100

    Using Your NAS-7100 To Use the NAS storage 1..Open.Network.Neighborhood.(or.My.Network.Places). 2..Locate. the. NAS-7100.. If. it. is. not. listed,. double-click. Entire. Network.. Then. dou- ble-click.the.Workgroup.that.the.NAS-7100.is.in..(By.default,.the.NAS-7100.is.in. Workgroup.) 3..Double. click. on. the. NAS-7100. icon.. You. will. then. see. a. list. of. shares. (shared. folders). You can read and write files to these shares, unless the NAS-7100 ad- ministrator.has.blocked.access.

  • Page 12: Other Configuration

    Other Configuration If. you. want. to. set. more. detail. settings. of. NAS-7100,. please. refer. to. our. manual. and configure with your Web Browser. If you have any difficulty on resolving the problem. while. installing. or. using. NAS-7100,. please. feel. free. to. contact. PLANET. for. support.
