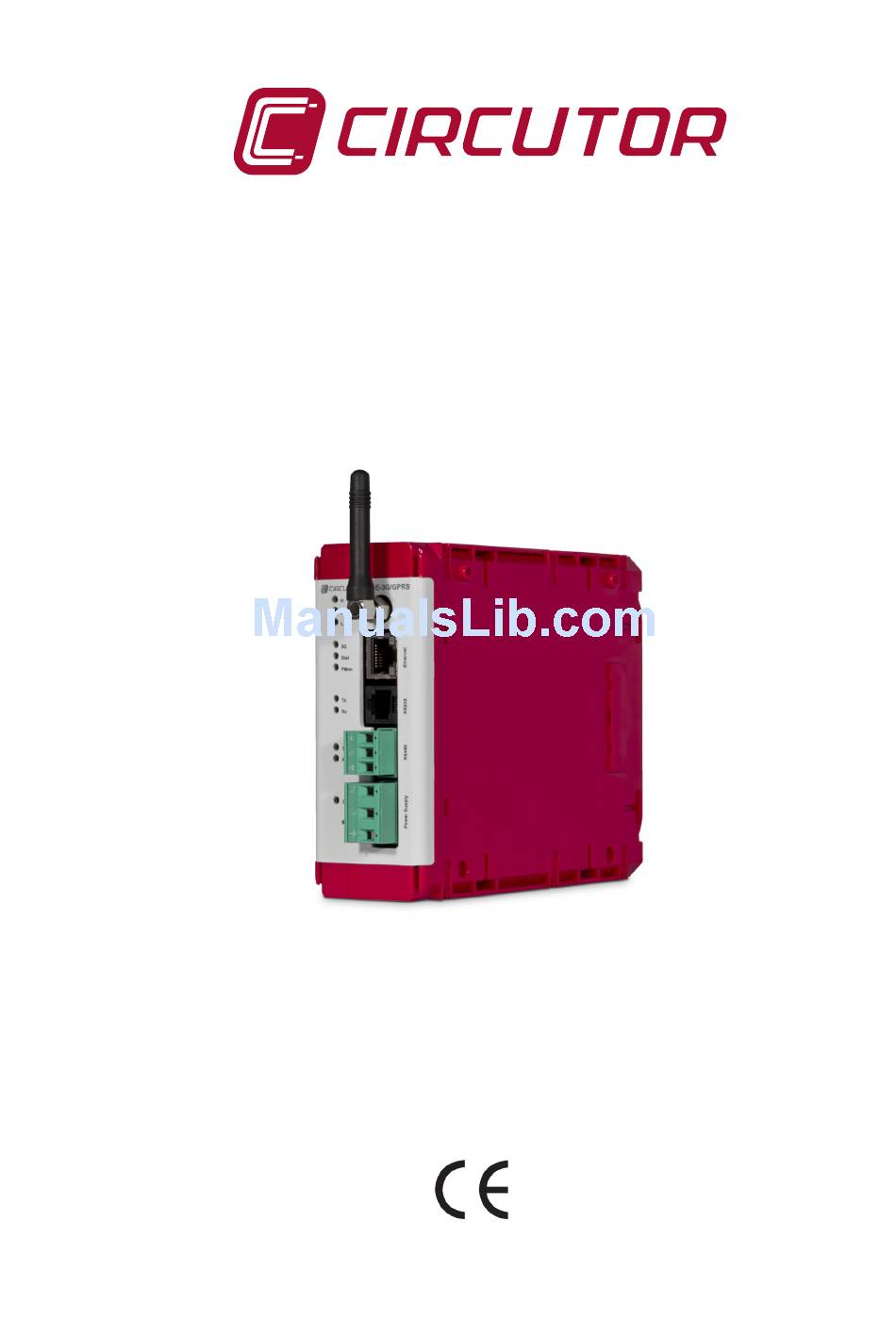

  • Page 1 Modem/Router SGE-3G/GPRS INSTRUCTION MANUAL (M179B01-03-17A)
  • Page 2 SGE-3G/GPRS Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifi cations and the most updated manuals. www.circutor.com Instruction Manual...
  • Page 4: Table Of Contents

    SGE-3G/GPRS CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ����������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS ���������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATIONS UPON RECEPTION ��������������������������������������������������������������������������������������������������������������6 2�- DESCRIPTION OF THE PRODUCT ������������������������������������������������������������������������������������������������������������������6 3�- INSTALLING THE DEVICE �������������������������������������������������������������������������������������������������������������������������������7 3�1�- PRELIMINARY RECOMMENDATIONS ����������������������������������������������������������������������������������������������������7 3�2�- INSTALLATION �����������������������������������������������������������������������������������������������������������������������������������������8 3�2�1�- INSTALLATION ON DIN RAIL ������������������������������������������������������������������������������������������������������������8 3�2�2�- PANEL-MOUNTED INSTALLATION ���������������������������������������������������������������������������������������������������9...
  • Page 5: Revision Log

    SGE-3G/GPRS REVISION LOG Table 1: Revision log� Date Revision Description 06/17 M179B01-03-17A Initial Version SYMBOLS Table 2: Symbols� Symbol Description In compliance with the corresponding European directive. The unit complies with the 2002/96/EC European directive. Do not dispose of the unit in a household waste container at the end of its useful life.
  • Page 6: 1�- Verifications Upon Reception

    2�- DESCRIPTION OF THE PRODUCT The SGE-3G/GPRS can connect an application to the Internet via IP connections locally or through networks. The SGE-3G/GPRS can be connected to UMTS networks (Universal Mobile Telecommunica- tion System) where this technology is installed.
  • Page 7: 3�- Installing The Device

    The SGE-3G/GPRS device must be installed by authorised and qualified staff. Disconnect the device from the mains and disconnect the measuring devices before handling, changing the connections of or replacing the device. Handling the device while it is connected is hazardous to the people near it.
  • Page 8: 3�2�- Installation

    The power circuit of the device will be connected with a cable with a minimum cross-section of 1.5 mm². The device can be connected to other CIRCUTOR modules. To do so, insert the plastic clips, as shown in , to guarantee that the modules are firmly connected.
  • Page 9: 3�2�2�- Panel-Mounted Installation

    SGE-3G/GPRS Lift the guides after fitting the guides and mounting the SGE-3G/GPRS on a DIN rail, to ensure they are firmly secured. 3�2�2�- PANEL-MOUNTED INSTALLATION show different options that can be used to fit the panel mounting guides. Figure 3 Figure 4 The modules are somewhat symmetrical, so they can be attached to the panel in different ways. Figure 3: Option 1: Fitting the panel fixing elements.
  • Page 10: 3�3�- Terminals Of The Device

    SGE-3G/GPRS Figure 5:How to insert the screws into the panel fixing elements. 3.3.- TERMINALS OF THE DEVICE Table 3:List of terminals of the SGE-3G/GPRS� Terminals of the SGE-3G/GPRS 1: Ethernet Communications 5: A, RS-485 Communications 2: RS-232 Communications 6: N, Auxiliary power supply...
  • Page 11: 4�- Start-Up

    A secure web protocol (HTTPS) is required to access the SGE-3G/GPRS through the web site. The device will be accessed from the following address: https://192�168�1�1 The SIM card is inserted through the rear of the SGE-3G/GPRS. Press the button on the slot to extract the card holder.
  • Page 12: 5�- Operation

    5.1.- INDICATOR LEDs The device features 11 Indicator LEDs, Figure 10 Table 4 Stat PMon Figure 8:SGE-3G/GPRS Indicator LEDs� Table 4: Description of the LEDs Description Very good coverage Good coverage Poor coverage Steady: Device connected to a 3G network...
  • Page 13: 5�2�- Communications Ports

    SGE-3G/GPRS 5.2.- COMMUNICATIONS PORTS The SGE-3G/GPRS features three communications ports:  Ethernet (terminal in ) allows the device to communicate with a PC or any de- Table 3 vice with a communication port. This is the port through which the device is configured, � “6.- CONFIGURATION”  RS-232 (terminal 2 in ) allows the device to communicate with any device using Table 3 this protocol. The port must be configured from the web site of the SGE-3G/GPRS�...
  • Page 14: 6�- Configuration

    To access this web site, simply use a conventional browser and enter the default IP address in the SGE-3G/GPRS: https://192�168�1�1 This is a secure web site; select the “Continue to this website (not recommended) option. Press the "Setup" button to access the setup screen of the SGE-3G/GPRS. shows the home configuration screen. Figure 9 Figure 9: Home configuration screen.
  • Page 15: 6�1�- Modem

    The most common use is the assignment of an Internet domain name to a computer with a variable IP address (in our case, SGE-3G/GPRS with a dynamic IP address). This allows the establishment of a connection with the device without the need for an Internet connection with identification via a fixed IP address.
  • Page 16: 6�3�- Time: Ntp Server

    Figure 13: Setup screen: Time, NTP server� The device time can be updated with 2 methods: 1�- Press the Sync to PC Time button to synchronise the time of the SGE-3G/GPRS with that of the PC. 2�- Using an NTP time server, for which the following sections must be configured: Pri- mary NTP server and Secondary NTP server.
  • Page 17: 6�5�- Port Forwarding

    Port Forwarding assigns ports to deliver information through a network of different IP address- Figure 14:Port forwarding example. Figure 15: Setup screen: Port forwarding� Setup parameters:  3G Port: Input port of the SGE-3G/GPRS�  Forward to Address: Destination IP Address.  Port: Port of the destination IP Address. Instruction Manual...
  • Page 18: 6�6�- Rs-485

    SGE-3G/GPRS 6.6.- RS-485 The device features an RS-485 communication bus that is used to communicate with external peripherals, acting as a communications master. Figure 16: Setup screen: RS-485� Setup parameters:  Protocol: Communications protocol: TCP or UDP.  Port: Destination port of the device with which the system will communicate.
  • Page 19: 6�8�- Delivery Of Sms Messages

     Message text: text of the message that will be sent. 6.9.- SECURITY The edit password can be enabled in the SGE-3G/GPRS, avoiding the modification of the setup parameters. It is not active by default. In case it is activated, the "user" will always be “admin”, only the password can be modified.
  • Page 20: 7�- Technical Features

    SGE-3G/GPRS 7�- TECHNICAL FEATURES Power supply 85 ... 264 V ~ Rated voltage Frequency 50 ... 60 Hz Power 7 ... 12 VA Installation category CAT III 300V Battery Type CR2032 SLF (ref: 6032 201 501, VARTA) Working Life 5 years...
  • Page 21 SGE-3G/GPRS 35,7 Figure 21: Dimensions of the SGE-3G/GPRS� Standards IEC 60664, VDE 0110, UL 94, EN 61010-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-11, EN 61000- 6-4, EN 61000-6-2, EN 61000-6-1, EN 61000-6-3, EN 61000-4-5, EN301489-1, EN 301489-7, EN 301489-24,...
  • Page 22: 8�- Technical Service

    • CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”...
  • Page 23: 10�- Ce Certificate

    SGE-3G/GPRS 10�- CE CERTIFICATE Instruction Manual...
  • Page 24 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
