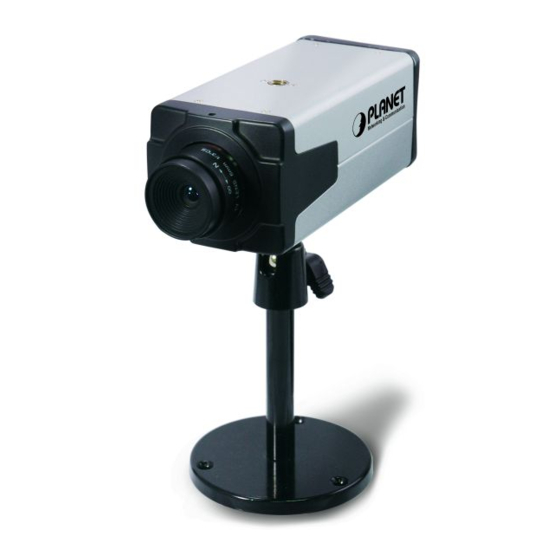

CCD Box PoE Internet Camera
ICA-700
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCD Box PoE Internet Camera ICA-700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet CCD Box PoE Internet Camera ICA-700

Summary of Contents for Planet CCD Box PoE Internet Camera ICA-700

  • Page 1 CCD Box PoE Internet Camera ICA-700 Quick Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents ... 3 2. System Requirements ... 3 3. Outlook ... 4 4. Physical Installation ... 5 5. Setup Tool Installation ... 6 6. Setup Tool Configuration ... 9 7. Cam Viewer Lite Installation ...14 Appendix A: Feature Listing for Cam Viewer ...18 Appendix B: Suggest Hardware / System Requirement ...19 Appendix C: Ordering Information for Cam Viewer Pro ...20...

  • Page 3: Package Contents

    1. Package Contents ● 1 x ICA-700 ● 1 x Power Adapter ● 1 x Camera Stand ● 1 x CD ● 1 x Quick Installation Guide 2. System Requirements Network Interface Monitoring System System Hardware 10/100Base-TX Ethernet Recommended for Internet Explorer 6.0 or above ●...

  • Page 4: Outlook

    3. Outlook Rear panel of ICA-700 Port AUDIO IN An external microphone can be plugged in. AUDIO OUT An external speaker can be plugged in. Reset to manufacturer default valued and reboot. RESET When pressed and held over 10 seconds, the settings of IP Camera will be set to the default values.

  • Page 5: Physical Installation

    Connect your Camera to a 10/100Base-TX hub or switch. It is LAN (PoE) compliant with IEEE 802.3af PoE. Either mid-span PSE or end- span PSE supported. 4. Physical Installation 1. Connect an Ethernet cable Connect one end of an Ethernet cable to the LAN port located on the IP camera’s rear panel and connect the other end to the network device (hub or switch).

  • Page 6: Setup Tool Installation

    5. Setup Tool Installation Initial setup should be performed by using the supplied Windows-based Setup Tool as follows: 1. Insert the bundled product CD into CD-ROM drive to launch the autorun pro- gram. 2. When the web page displayed, select and click the “Setup Tool” hyperlink on the menu to start the installation process.
  • Page 7 5. Follow the step for install the Setup Tool, and click “Next” to continue. 6. If you wish to install the Setup Tool in an alternative location, click “Browse” and define a location; otherwise click “Next” to continue. 7. If you wish to install the Setup Tool in an alternative folder of start menu, type a new folder name or select a exiting folder;...
  • Page 8 8. Check the installation summary, and click “Install” to start the installation. 9. The Setup Tool will be start install to your computer. 10. The Setup Tool installation successful. Click “Finish” to complete the installa- tion. If you would like to run the Setup Tool, please check “Launch Program file”...

  • Page 9: Setup Tool Configuration

    6. Setup Tool Configuration This section shows how to perform basic configuration functions by Setup Tool. 1. Double click the icon of Setup Tool on the desktop. 2. The Setup Tool screen will show up as below. It will automatically search and list the IP cameras on your network.
  • Page 10 4. On the following System information screen, it displays the Product Name, Firm- ware Version and Hardware Version. Click on “Next” to continue. 5. On the following Account settings screen, you can modify the Administrator login user name and password. And you can add some user accounts as Admin, Op- erator or Viewer.
  • Page 11 6. On the following Date/Time settings screen, you can adjust the date and time to synchronize with PC, manual setting or synchronize with NTP server. Select the correct Time Zone, then click “Next” to continue. 7. On the following Network settings screen, you can configure the device HTTP port number, IP address, subnet mask, default gateway and DNS.
  • Page 12 8. On the following PPPoE settings screen, if you are use PPPoE connection, please select “On” and fill the correct User ID and Password for dialling. Click “Next” to continue. 9. On the following DDNS settings screen, if you have registered the account from the DDNS provider and want to use DDNS function, please select “On”...
  • Page 13 10. In Apply settings screen. Please click “Apply” to finish the configuration, we will suggest you check the “Reboot system to apply new settings” to let the camera work with new settings. Or click “Previous” to check your settings. After modifications, you may now connect the IP camera with the new configuration via web browser.

  • Page 14: Cam Viewer Lite Installation

    7. Cam Viewer Lite Installation The Cam Viewer Lite / Pro 30 days trial version installation steps are similar. Below is the installation of Cam Viewer Lite. Note 1. Insert the bundled Cam Viewer CD disk into the CD-ROM drive to launch the au- torun program.
  • Page 15 3. The “Welcome to the InstallShield Wizard for Planet Cam Viewer Lite 1.0.3” will display on the screen, please click “Next”. 4. Please read the license agreement and then check “I accept the terms of the license agreement” if you are agreed and click “Next” to continue the installation...
  • Page 16 5. Please key in user name and company name for which you want and click “Next” to continue installation. 6. Check the option “Complete”, all program features will be installed (Requires the most disk space) and click “Next” to continue installation.
  • Page 17 7. “Ready to Install the Program” will appear to prompt you to start the installa- tion. Please click “Install” to start. 8. Please click “No” to finish the Cam Viewer Lite installation. In above step, when Cam Viewer works with MBM5 (Motherboard Monitor 5), Cam Viewer will display CPU temperature and fan speed.

  • Page 18: Appendix A: Feature Listing For Cam Viewer

    Appendix A: Feature Listing for Cam Viewer Software Version IP Camera Input Dual Monitor Smart Guard I/O Device Hotline Address Book Log Viewer Counting Application Remote Playback Server Concurrent Playback Counting Function Smart Search Remote Live Viewer Cam Viewer Lite Unusual event System log 1 Channel...

  • Page 19: Appendix B: Suggest Hardware / System Requirement

    Appendix B: Suggest Hardware / System Requirement Total FPS ~600 Intel Core 2 Duo QX6800 4 GB Chipset of Intel 946 or 965 chip, Intel Chipset recommended Motherboard VGA Card Ethernet 100Base-TX or Above, Gigabit LAN recommended Hard Disk O.S. Total FPS: Means all the cameras will spend how many frames when this software works.

  • Page 20: Appendix C: Ordering Information For Cam Viewer Pro

    Appendix C: Ordering Information for Cam Viewer Pro Model Description CVP-16 16-Channel Cam Viewer Professional CVP-32 32-Channel Cam Viewer Professional CVP-64 64-Channel Cam Viewer Professional Further configuration and information can be found in the user’s manual CD. Please check the user’s manual for more understanding.
