TORNADO INDUSTRIES, LLC
333 CHARLES COURT
WEST CHICAGO, IL 60185
(630)-818-1300 FAX (630)-818-1301
WWW.TORNADOVAC.COM
Operations & Maintenance Manual
For Commercial Use Only

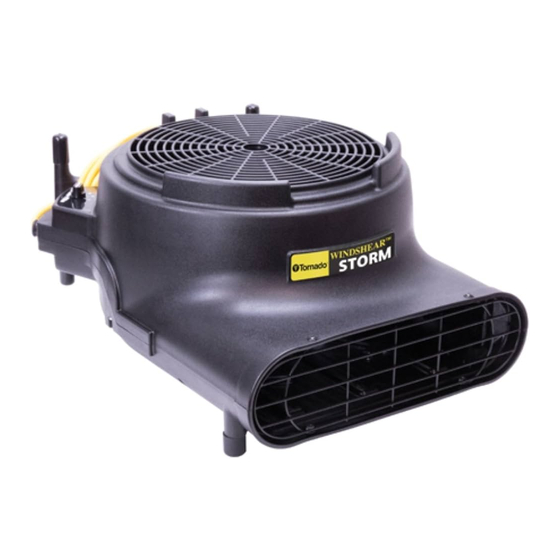

WINDSHEAR™ STORM and WINDSHEAR™ STORM DELUXE
MODEL NO: 98778/98780
Form No. L8778AB 03/13 ©Tornado Industries, LLC. All rights reserved
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tornado WINDSHEAR STORM
Summary of Contents for Tornado WINDSHEAR STORM
- Page 1 TORNADO INDUSTRIES, LLC 333 CHARLES COURT WEST CHICAGO, IL 60185 (630)-818-1300 FAX (630)-818-1301 WWW.TORNADOVAC.COM Operations & Maintenance Manual For Commercial Use Only WINDSHEAR™ STORM and WINDSHEAR™ STORM DELUXE MODEL NO: 98778/98780 Form No. L8778AB 03/13 ©Tornado Industries, LLC. All rights reserved...
- Page 3 NOTES...
-
Page 4: Specifications
All Specifications Subject to Change Without Notice. All information and specifications printed in this manual are current at the time of printing. However, because of Tornado’s policy of continued product improvement, we reserve the right to make changes at any time without notice. - Page 5 Product Specifications 98778 98780 Model WINDSHEAR™ STORM WINDSHEAR™ STORM DELUXE Catalog Number 98778 98780 Dimensions 22” x 16.5” x 11.5” 22” x 16.5” x 11.5” 56 cm x 42 cm x 29 cm 56 cm x 42 cm x 29 cm Net Weight 17.75 lbs.
- Page 6 WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. Do not use an extension cord with this fan. Use only on GFCI protected receptacles. Total number of fans that can daisy chain will be 4 (the unit plus 3 more).
- Page 7 ADVERTENCIA: Para reducir el riesgo de incen- dio o descarga eléctrica, no utilice este ventilador con ningún dispositivo de control de velocidad de estado sólido. No use un cable de extensión con este ventilador. Use sólo con GFCI tomas protegidas. Número total de fans que puede encadenar será...
- Page 8 AVERTISSEMENT : Pour réduire le risque d'incendie ou d'électrocution, ne pas utiliser ce ventilateur avec un dispositif de contrôle de vi- tesse à l'état solide. N'utilisez pas de rallonge électrique avec ce venti- lateur. Utilisation seulement sur GFCI protégée récipi- ents.
-
Page 10: When The Machine Is Delivered
The machine will provide years of satisfactory service if operated and maintained according to recommendations in the manual. If additional information is needed, please write to: Tornado Industries, LLC. (630) 818-1300 333 Charles Ct. St 109... - Page 11 Tornado Industries, LLC. (630) 818-1300 333 Charles Ct. St 109 FAX (630) 818-1301 West Chicago, IL 60185 www.tornadovac.com...
- Page 12 Power Stacking Guides Cord Exhaust Port Speed Selector Switch Cord Wrap Kickstand Daisy chaining Side Stand (Deluxe Outlet (Deluxe Model ONLY) Model ONLY)
- Page 13 The Speed selector switch provides the following settings, III = High Speed, Figure 1; II = Medium Speed, Figure 2; I = Lo, Figure 3; and 0 = Off, Figure 4. Figure 1 for High Speed Figure 2 for Medium Speed Figure 4 to turn OFF Figure 3 for Lo Speed WARNING: Exhausting too much air form a space with Open Combustion Devices (e.g.
- Page 14 The standard orientations are, horizontal, figure 5, vertical, figure 6. The deluxe model can also oper- ate in a sideways orientation, figure 7. Care must be taken, especially in the sideways orientation, not to block the air intake. Figure 6 Vertical Figure 5 Horizontal Figure 7 Sideways The units can be stacked during storage or transport to minimize the required space.
- Page 15 Cord Storage Your unit is equipped with a cord wrap and storage area on the back of the unit. To properly store the power cord: • Turn off the unit • Disconnect any units plugged into the unit • Unplug the unit from the wall outlet •...
- Page 16 WARNING: Always unplug machine before cleaning, or making adjustments or repairs. Note: Always store the Windshear Storm in a dry place. After Every Use: • Remove any lint or debris from the intake screen. • Clean cord with a window cleaner (or similar) and wrap.
- Page 17 See complete product info at www.tornadovac.com...
