IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual
for the life of the equipment:
Model #: __________________________
Serial #: __________________________
Date Purchased: ___________________
Service Manual
for
Solstice I12 Water Cooker
Part #60153301
C
OOK
BACK
FRONT
This manual details operations and adjustments of the Solstice I12 Water Cooker control developed for
Pitco products. This microprocessor control offers the latest cooking technology, including temperature
and time compensation that requires no user adjustments for consistently cooked product. Other
features include drain valve interlock, faulty probe detection, beeper volume, and cook temperature
displays. Each product key may be programmed with cook, shake and hold times, and set to display
product names to keep pace with changing menus over time. This manual reveals all adjustments that are
possible by keyboard entry, including passwords.
The target audience for this manual is the Service Technician.
L22-306 Rev 0 (9/07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLSTICE I12 L22-306 and is the answer not in the manual?

Questions and answers

Related Manuals for Pitco SOLSTICE I12 L22-306

Summary of Contents for Pitco SOLSTICE I12 L22-306

  • Page 1 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment: Model #: __________________________ Serial #: __________________________ Date Purchased: ___________________ Service Manual Solstice I12 Water Cooker Part #60153301 BACK FRONT This manual details operations and adjustments of the Solstice I12 Water Cooker control developed for Pitco products.

  • Page 2: Table Of Contents

    Solstice I12 Cooking Computer Service Part #60153301 1 Key Locations and Functions: ... 4 To turn the appliance ON: ... 4 To turn the appliance OFF:... 4 To start a Cook:... 4 To cancel a Cook or Hold: ... 5 To check Actual and Set temperatures: ...
  • Page 3 More Service Menu Entry ... 15 4.7.1 Cook Now ...15 4.7.2 Maximum Fill Time ...16 4.7.3 Heat Demand Profile ...16 4.7.4 Shake Alarm Duration ...17 4.7.5 Hold Alarm Duration ...17 4.7.6 Cancel Duration...17 4.7.7 Configuration Value ...17 4.7.8 Factory Reset ...17 4.7.9 Standing Pilot Toggle ...18 4.7.10 To Exit More Service Menu...18...

  • Page 4: Key Locations And Functions

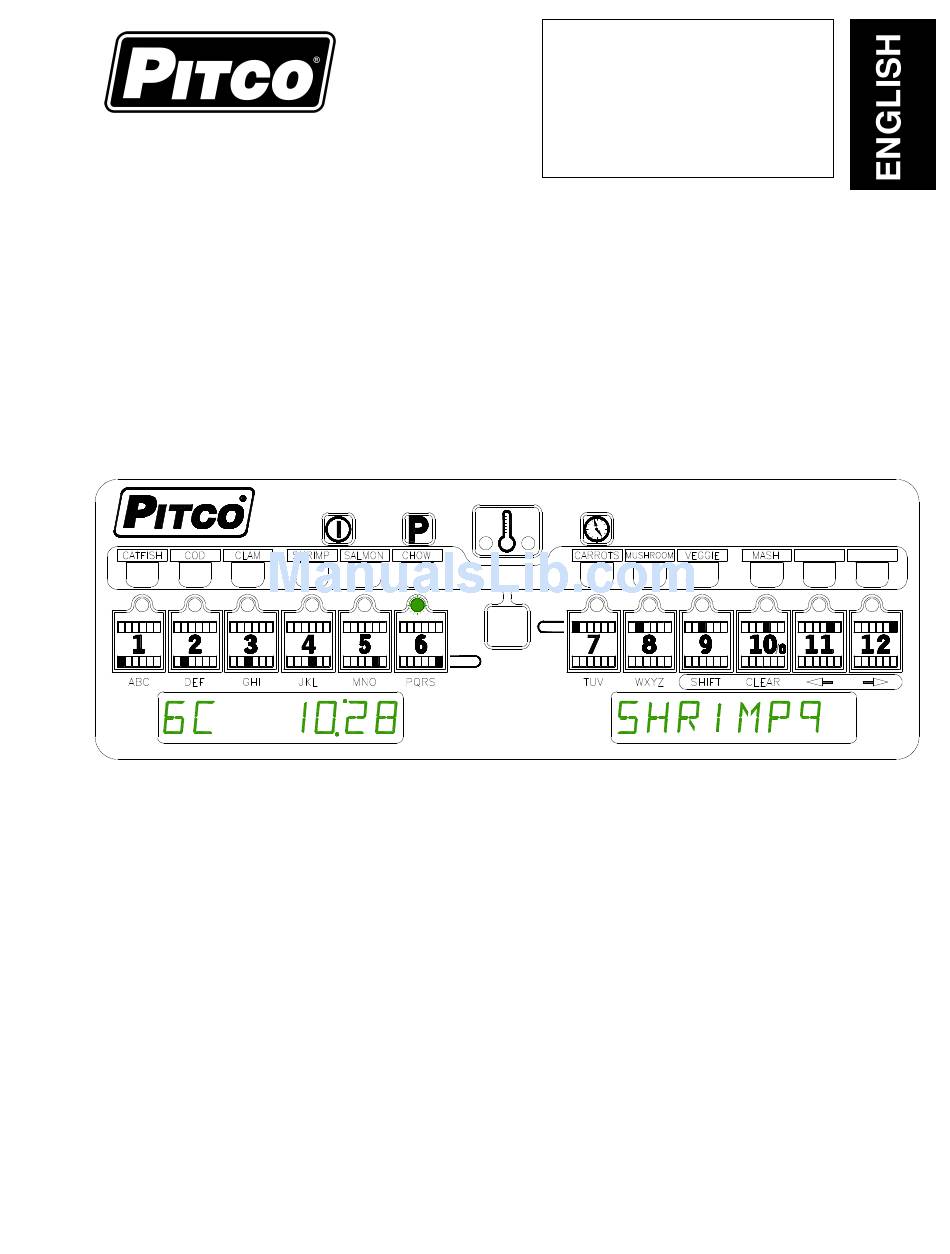

    Solstice I12 Water Cooker Computer Service Part #60153301 Key Locations and Functions: ID Keys Indicators Location Cook Displays show current operation. Throughout this text, a left or right only display reference will be printed as [SHRIMP9]. When both left and right displays should be interpreted together, this text will show them as [6C 10:28] [SHRIMP9].
