Pitco E24FF Specifications

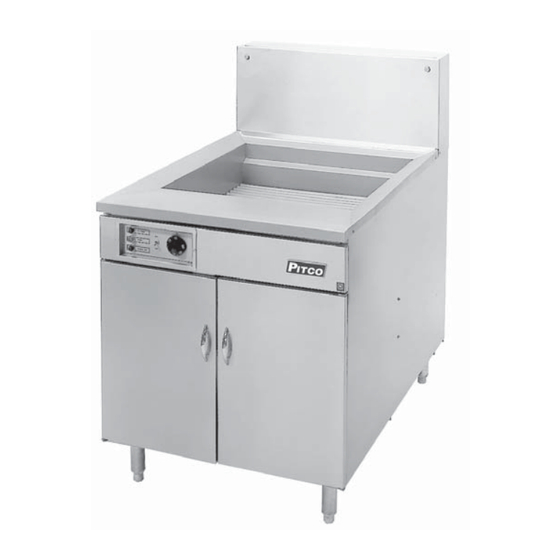

Model E24FF & E34FF
High Capacity Food and Fish Fryers

STANDARD ACCESSORIES

Food grid
Electric thermostat
Indicating lights
On/Off/Start switch
Drain line clean-out rod
Drain extension
Submerger
Drainboard
Cabinet - stainless steel front and door, galvanized
sides and back
AVAILABLE OPTIONS & ACCESSORIES
Stainless steel exterior
Stainless steel tank
Casters
Drainboard
Left or right side work shelf
Submerger
Top holding shelf with removable tray.
Pitco Frialator, Inc., P.O. Box 501, Concord, NH 03302-0501 1509 Route 3A, Bow NH 03304, USA
Project
Item No.
Quantity

STANDARD SPECIFICATIONS

CONSTRUCTION

CONTROLS

OPERATIONS

APPROVALS
Front work shelf
480 volt service
Covers
Patent Pending
(603) 225-6684 Fax (603) 225-8472 www.pitco.com
L10-030 Rev 7 (09/04)
Welded tank with an extra smooth peened finish
ensures easy cleaning.
Immersion type; sealed construction heating
elements with high temperature alloy stainless steel
sheath.
Element design makes cleaning easy.
Thermostat dial mounted on the front panel.
Provision for tie-in with fire protection systems.
Temperature limit automatically shuts off all power
to the heating elements if the fryer temperature
exceeds the upper limit.
Three position switch (OFF/ON/START) for fryer
control.
Two position switch (MELT ON/MELT OFF) for melt
cycle control.
White power ON light.
Amber temperature light indicates when elements
are heating.
Thermostat maintains selected temperature
automatically at the selected temperature
(between 200 F (93 C) and 375 F (191 C-CE).
Front 1-1/2" (3.8 cm) drain, for quick draining.
Select fryer operating mode (on or melt cycle) from
the front control switch.
CSA Certified
(AGA, CGA)
NSF Listed
MEA Approved
UL Listed
