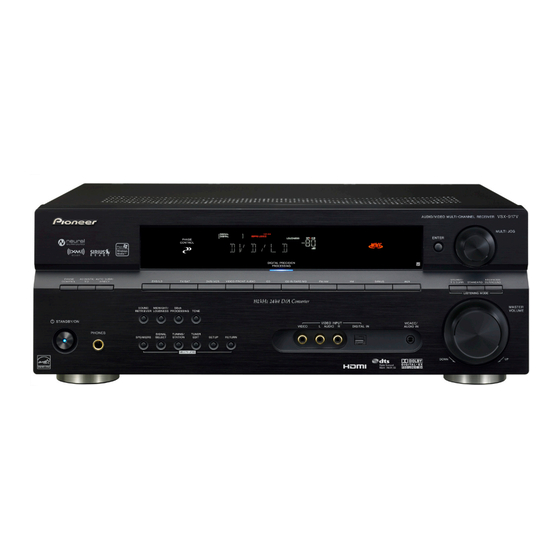

Pioneer VSX-917-S Specifications

VSX-917V-K
XM Satellite Ready and SIRIUS
®
Satellite Ready 7-Channel
A/V Receiver Featuring HDMI
PiOneer-eXCluSiVe innOVaTiOnS
› Phase Control (Bass management System ensures Precision
low Frequency Output)
› Sound Retriever for improved Sound Quality of Compressed
music Files
› Auto MCACC Setup with 5-band eQ
› Advanced Direct Energy Power Amplifier
› Front Stage Surround Advance
FeaTureS FOr SuPeriOr SOunD
QualiTy
› equal High Power for all Seven Channels (110 Watts x 7,
1 kHz, 1.0 % THD, 8 ohms )
› new Freescale 180miPS Processing DSP
› 192 kHz/24-bit DaC
› Xm HD Surround Powered by neural audio
®
®
SurrOunD SOunD TeCHnOlOgieS
› Built-in DTS-eS™/DTS
Dolby ® Digital eX/Dolby
› Wma9 Pro Decoder
› advanced Surround (14 modes, including Front Stage
Surround advance)
› Dialogue enhancement
› auto Surround
› Stream Direct for Pure and unprocessed Digital Sound
enHanCeD COnVenienCe
› Xm ® Satellite radio ready with OSD
› SiriuS Satellite ready with OSD
®
› Pre-programmed lCD remote Control unit
› Digital Video Converter (up to Component)
› Fl Dimmer (4 steps)
®
® 96/24/DTS ® neO:6/
® Pro logic iix Decoders
TerminalS
› HDmi Video Switching
› a 3.5 mm audio Jack input on the Front Panel
› 5.1-Channel input
› 5 Digital inputs (2 Coaxial, 3 Optical) and 1 Digital Output
› Component Video Terminal (3 inputs, 1 Output)
› S-Video Terminal (3 inputs, 2 Outputs)
› Front a/V inputs with Optical Digital input
› audio (Tuner included)/Video inputs: 5a/4aV
› audio/Video Outputs: 1a/1aV + 1V
› Sr+ (Smart remote)
› large Speaker Terminals (Fl/Fr/C/Sr/Sl/SBr/SBl)

SPeCiFiCaTiOnS

› Power requirements: aC 120 V/60 Hz
› Power Consumption: 405 Watts
› Standby Power Consumption: 0.5 Watts
› Dimensions (W x H x D):
16-9/16 x 6-1/4 x 13-7/8 inches (420 x 158 x 352.5 mm)
› Weight: 20 lbs. 4 oz. (9.2 kg)
